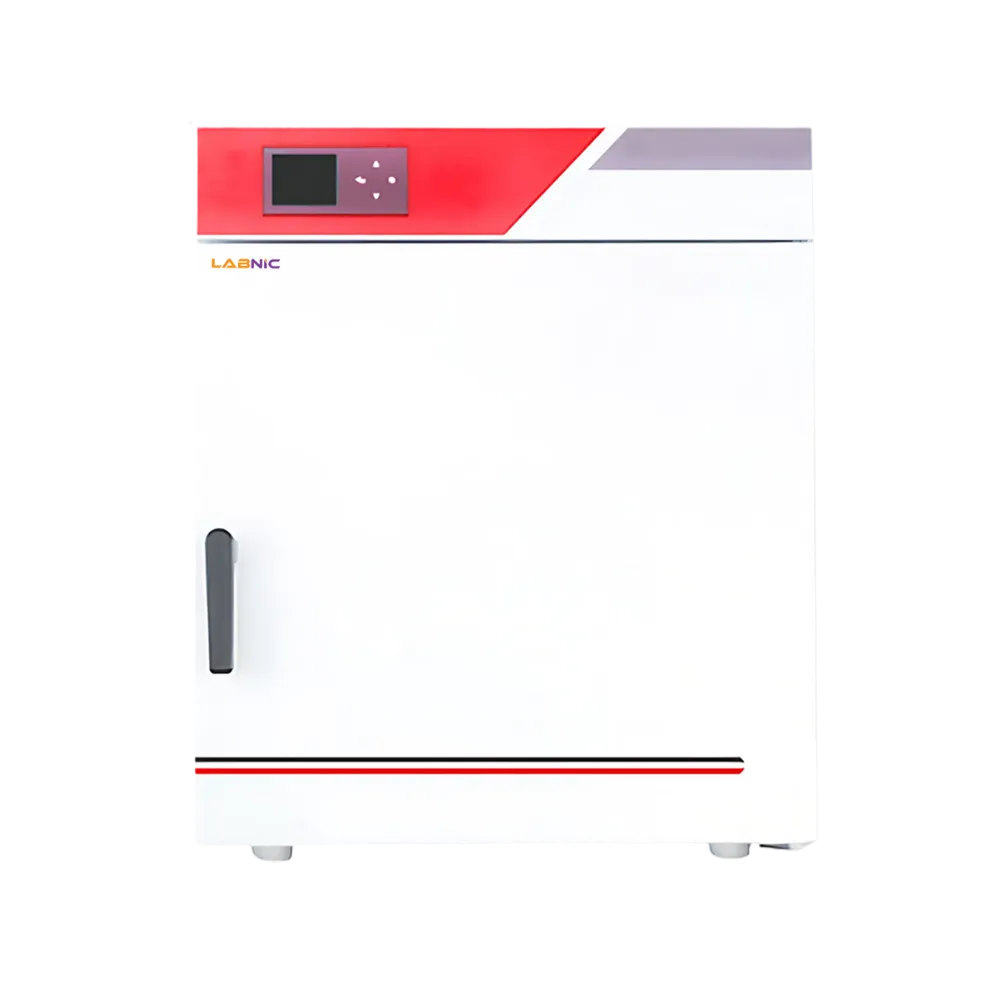

Drying Oven LBN-DO163 is a bench top model occupying minimal bench space and is built to provide trouble free operation for various needs. The instrument is optimally suited to various applications up to 300°C with a temperature uniformity as good as ±2.5°C. It has a chamber volume of 210 liters and shell is made of cold-rolling steel and working chamber of mirror stainless steel. The unit is provided with an observation glass window and 3/8 shelves with a load capacity of 15 kg per shelf.
| Volume | 210 L |
| Temperature Range | RT+5 - 300°C |
| Temperature Resolution | 0.1°C |
| Temperature Fluctuation | ±1°C |
| Temperature Uniformity | ±2.5°C |
| Heating Rate | ˃ 5 |
| Timer Range | 0 – 9999 min |
| No of Shelves | 3/8 |
| Load Per Shelf | 15 Kg |
| Power | 2750 W |
| Power Supply | 220V, 50Hz |
| Internal Dimension W×D×H | 630×530×630 mm |
| Housing Dimensions W×D×H | 775×746×902 mm |
| Package Dimension W×D×H | 895×906×1052 mm |
| Net Weight | 77 Kg |
| Gross Weight | 96 Kg |
Unique door design reduces heat emission
Time for effective usage and additional energy savings
Space saving foot print
Flexible shelving system allows for optimal space utilization
Temperature uniformity of ±2.5°C
Easy setting with intuitive interface
Easy to open door handle
Dual LED screens and soft touch keys
Rotary two stage locking structure has good sealing performance
Rounded corners of the chambers are easy to clean and maintain
Power supply recovery function helps in data retrieval during power failure
Due to air convention breeze device air in the chamber can be renewed and circulated
Access port for data logging
Audible and visual alarm functions ensure both sample and operator safety
It is widely used to dry glassware, sterilize general instruments etc. in chemical and pharmaceutical industries, food industries, and textiles and electronic components.
Download Catalog for Drying Oven LBN-DO163
Download
Volume : 20 L
Temperature Range : RT+5 - 200°C
Temperature Resolution : 1°C
Temperature Fluctuation : ±1°C
Volume : 40 L
Temperature Range : RT+5 - 200°C
Temperature Resolution : 1°C
Temperature Fluctuation : ±1°C
Volume : 76 L
Temperature Range : RT+5 - 200°C
Temperature Resolution : 1°C
Temperature Fluctuation : ±1°C
Volume : 142 L
Temperature Range : RT+5 - 200°C
Temperature Resolution : 1°C
Temperature Fluctuation : ±1°C
Volume : 234 L
Temperature Range : RT+5 - 200°C
Temperature Resolution : 1°C
Temperature Fluctuation : ±1°C
Volume : 456 L
Temperature Range : RT+5 - 200°C
Temperature Resolution : 1°C
Temperature Fluctuation : ±1°C
Volume : 64 L
Temperature Range : RT+5 - 300°C
Temperature Resolution : 0.1°C
Temperature Fluctuation : ±1°C
Volume : 129 L
Temperature Range : RT+5 - 300°C
Temperature Resolution : 0.1°C
Temperature Fluctuation : ±1°C
Volume : 284 L
Temperature Range : RT+5 - 300°C
Temperature Resolution : 0.1°C
Temperature Fluctuation : ±1°C
Volume : 452 L
Temperature Range : RT+5 - 300°C
Temperature Resolution : 0.1°C
Temperature Fluctuation : ±1°C
Capacity : 23 L
Temperature Range : 5 to 250 °C
Temperature Resolution : ±0.1℃
Temperature Fluctuation : ±0.5℃
Convection Mode : Natural Convection
Capacity : 23 L
Temperature Range : 5 to 250 °C
Temperature Resolution : ±1℃
Capacity : 50 L
Temperature Range : 5 to 250 °C
Temperature Resolution : ±1℃
Temperature Fluctuation : ±1℃
Capacity : 50 L
Temperature Range : 5 to 250 °C
Temperature Resolution : ±0.1℃
Temperature Fluctuation : ±0.5℃
