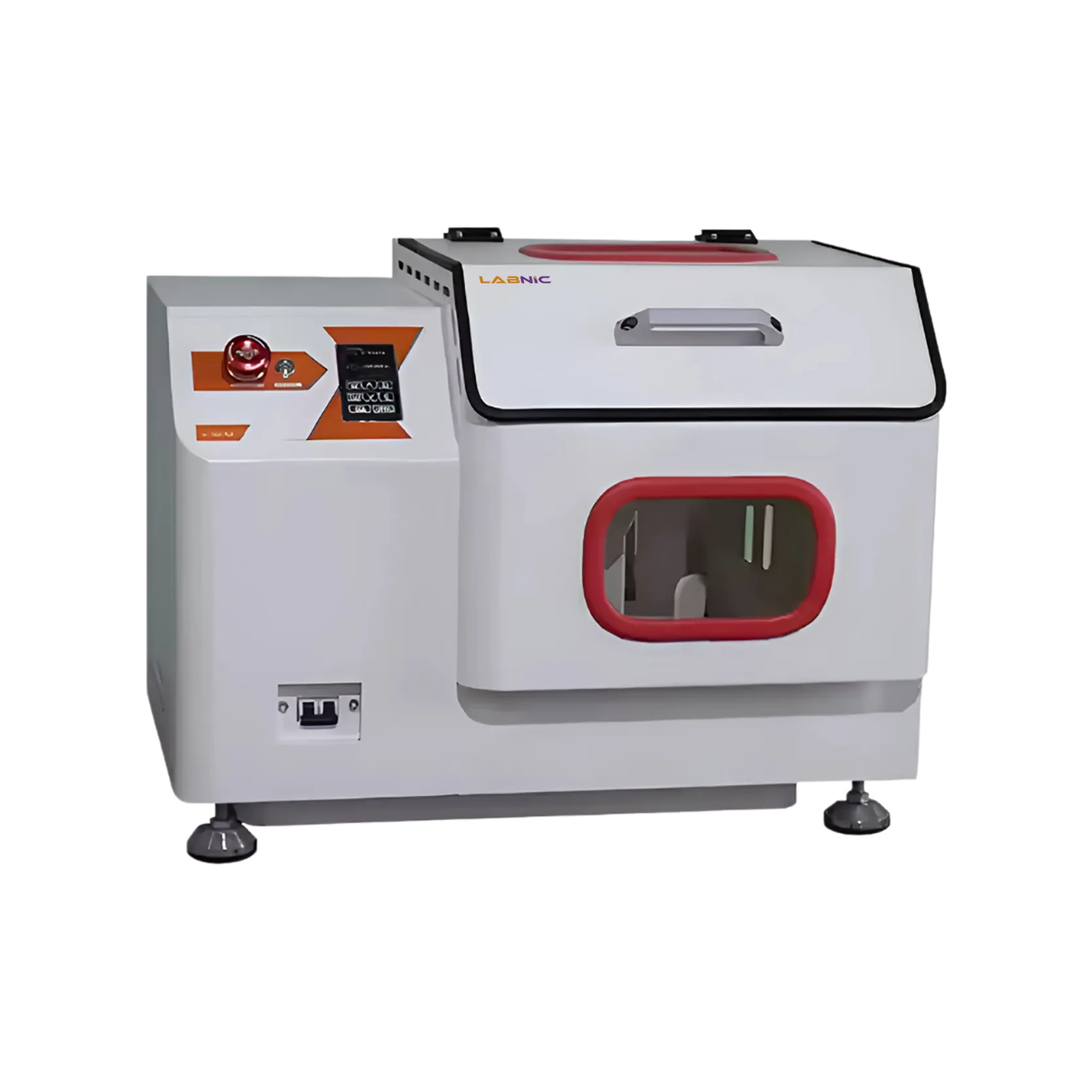

Planetary Ball Mill Machine LBN-BM141 is used wherever highest fineness of degree is required. It is low noise operated and high efficiency providing device with 4 × 100 ml capacity with a rotation speed of 10 – 800 r/min. it features a single gear with noise reduction of 15 – 20 dB and the gear transmission speed is stable to ensure consistency and repeatability of test. It is provided with back and side radiating holes for better heat dissipation and so as to prolong machine life.
| Capacity | 400 ml |
| Each Jar Capacity | 50 – 100 ml |
| Vacuum Jar Capacity | 50 ml |
| Jar Quantity | 2 – 4 |
| Type | Planetary |
| Speed Rate | 2:1 r/min |
| Revolution Speed | 5 - 450 r/min |
| Rotation Speed | 10 - 900 r/min |
| Long Run Time | 100 Hr |
| Run Time | 0 - 9999 Hr |
| Noise | <60 dB |
| Multi Section Speed Setting | 7 sections |
| Feed Particle Size | <15 mm, Hard material <3 mm |
| Grain Size | 0.1 μm or 100 nm |
| Ball Material Ratio | (2~10):1 |
| Grinding Ways | Dry/wet/Vacuum grinding |
| Loading And Unloading Method | Intermittent type |
| Transmission Mode | Gear drive |
| Motor Power | 0.55 Kw |
| Rated Voltage | 220 V |
| Rated Power | 750 W |
| Frequency | 50 Hz |
| Dimension | 55×35×40 cm |
| Machine Weight | 75 Kg |
Powerful and quick grinding down to nano range
Reproducible results due to energy and speed control
Suitable for long-term trials
4 different types of grinding modes
Safety slider for safe operation
Wide range of materials for contamination free grinding
Perfect stability on lab bench
Programmable starting time
Adjustable belt-tightness with extended service life
Adopts rolling friction drive between metal wheel and abrasive wheel
Compact structure with clamshell

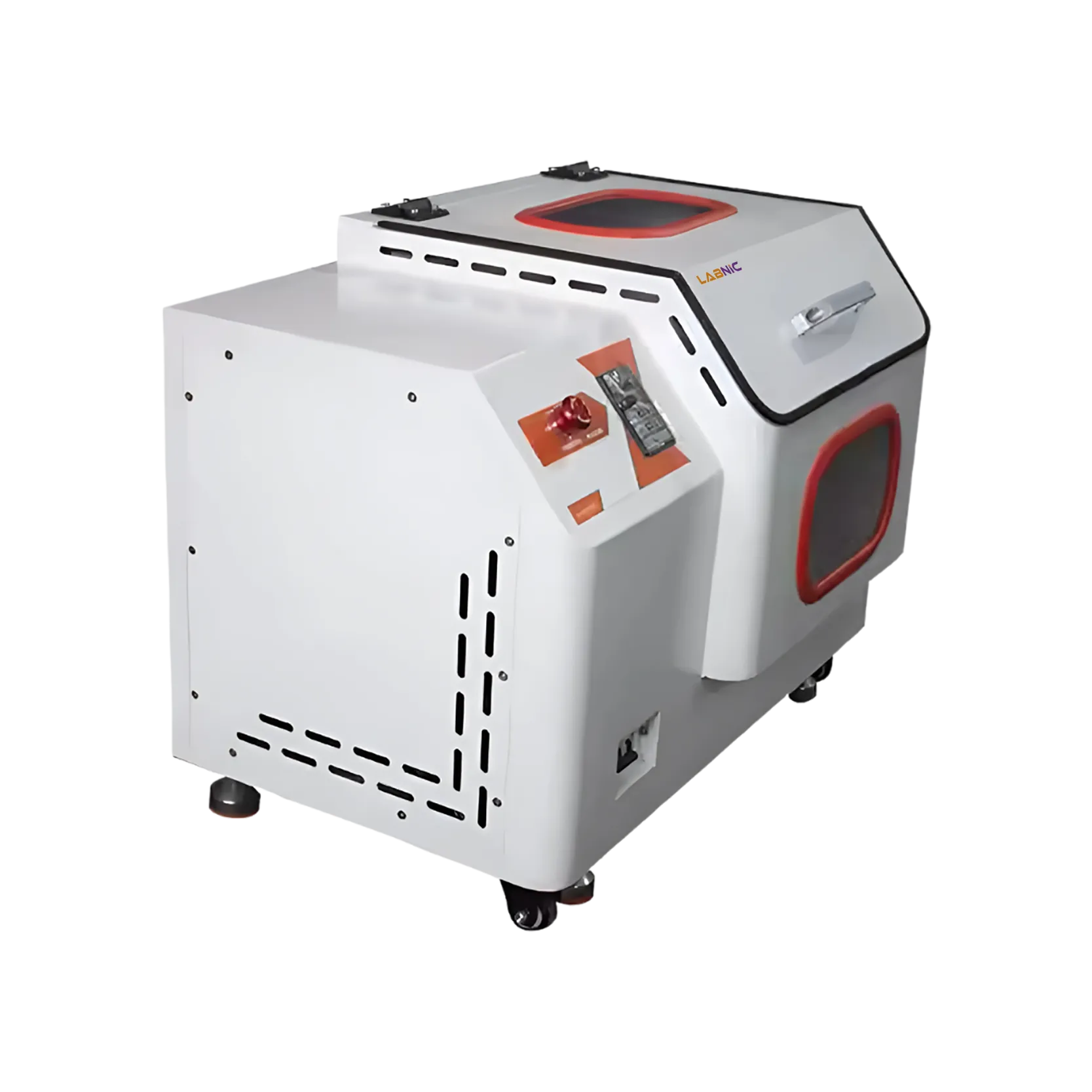

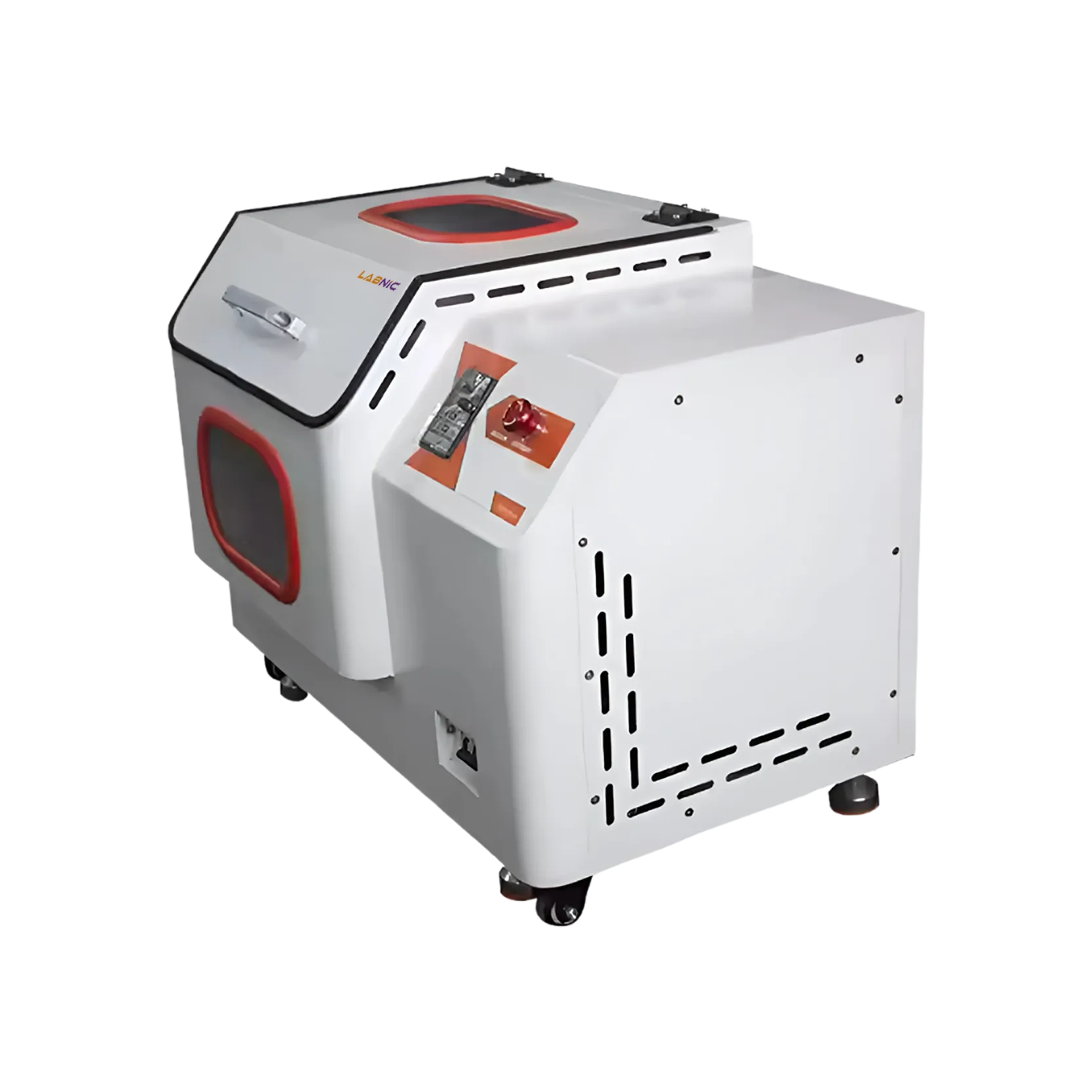

Back and side radiating holes for heat dissipation
Two windows for observation and control grinding process better
Planetary ball mill is widely used in fields of geology, metallurgy, electronics, chemical industries, medicinal departments, environmental protection and biological laboratories etc.
