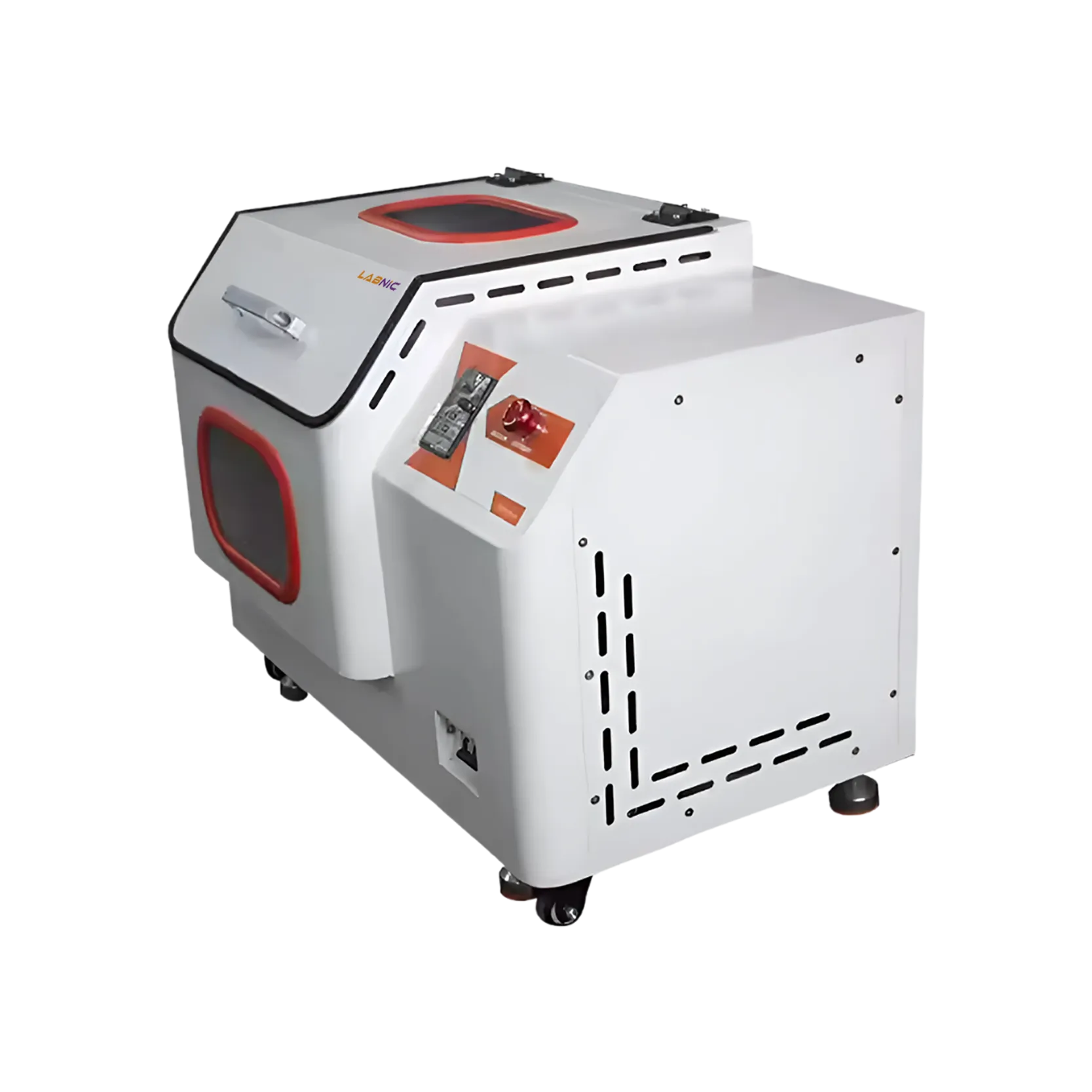

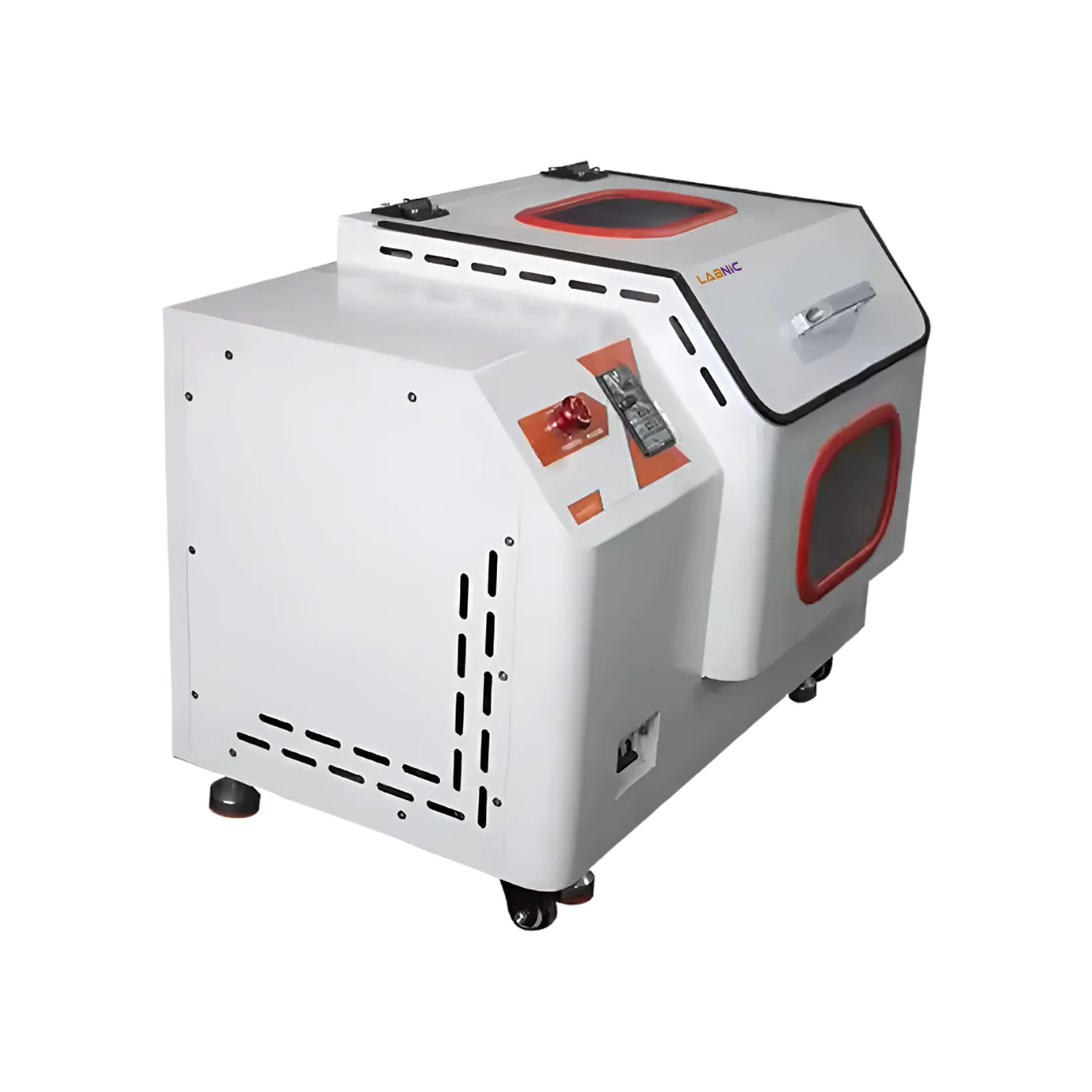

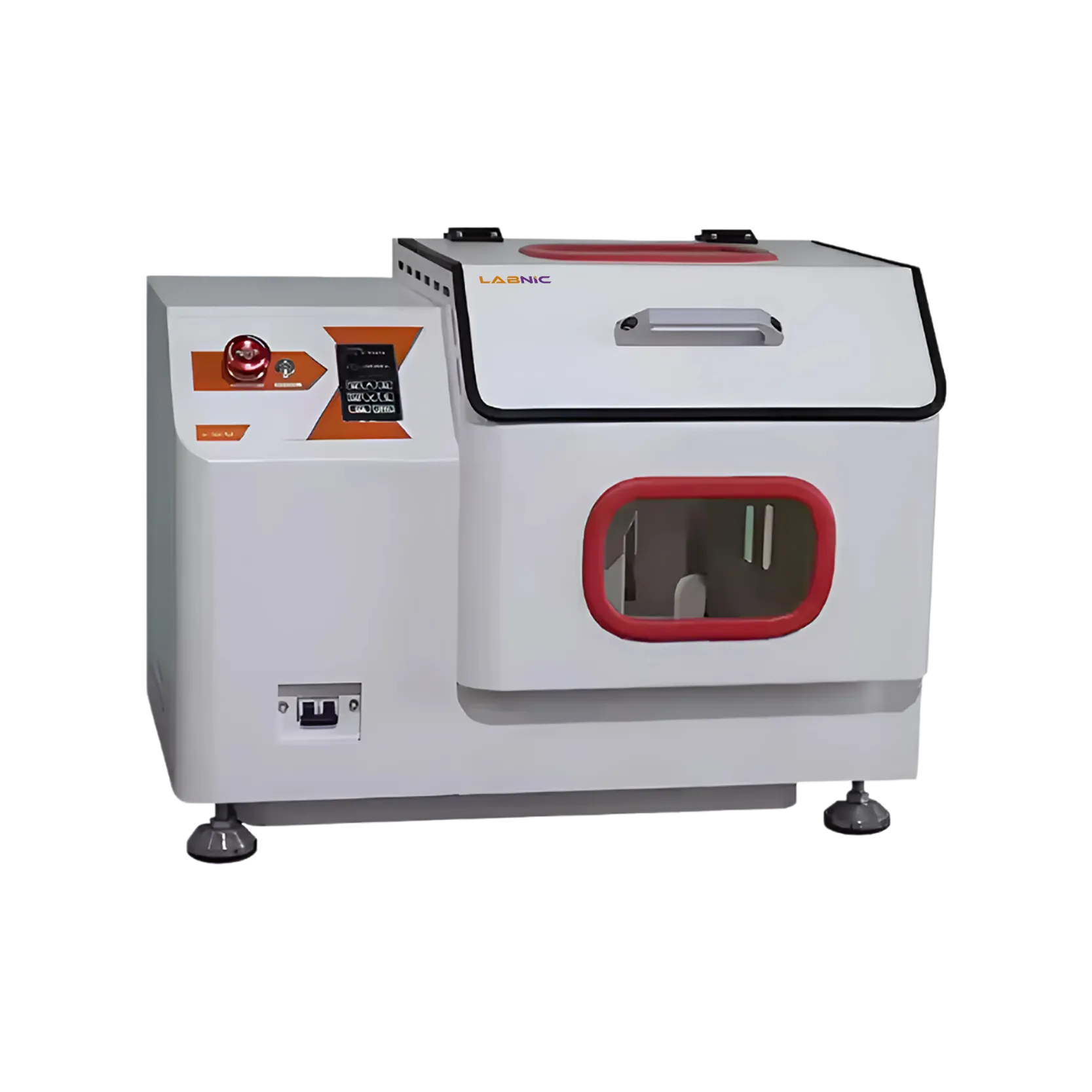

Planetary Ball Mill Machine LBN-BM144 is often used when the highest degree of fineness is required. It is a low noise and high efficiency providing device with a capacity of 4000 ml and a rotation speed of 60 – 800 r/min. It has a single gear with a noise reduction of 15 – 20 dB and a stable gear transmission speed to ensure test consistency and repeatability. It has back and side radiating holes for better heat dissipation and to extend machine life.
| Capacity | 4000 ml |
| Each Jar Capacity | 50 – 1000 ml |
| Vacuum Jar Capacity | 250 – 500 ml |
| Jar Quantity | 2 – 4 |
| Type | Planetary |
| Speed Rate | 2:1 r/min |
| Revolution Speed | 30 - 400 r/min |
| Rotation Speed | 60 - 800 r/min |
| Long Run Time | 100 Hr |
| Run Time | 1 – 9999 Hr |
| Noise | <60 dB |
| Multi Section Speed Setting | 7 sections |
| Feed Particle Size | <15 mm, Hard material <3 mm |
| Grain Size | 0.1 μm or 100 nm |
| Ball Material Ratio | (2~10):1 |
| Grinding Ways | Dry/wet/Vacuum grinding |
| Loading And Unloading Method | Intermittent type |
| Transmission Mode | Gear drive |
| Motor Power | 1.1 Kw |
| Rated Voltage | 220 V |
| Rated Power | 750 W |
| Frequency | 50 Hz |
| Dimension | 78×58×68 cm |
| Machine Weight | 85 Kg |
Powerful and quick grinding down to nano range
Reproducible results due to energy and speed control
Suitable for long-term trials
4 different types of grinding modes
Safety slider for safe operation
Wide range of materials for contamination free grinding
Perfect stability on lab bench
Programmable starting time
Adjustable belt-tightness with extended service life
Adopts rolling friction drive between metal wheel and abrasive wheel
Compact structure with clamshell
Back and side radiating holes for heat dissipation
Two windows for observation and control grinding process better
Planetary ball mill is widely used in fields of geology, metallurgy, electronics, chemical industries, medicinal departments, environmental protection and biological laboratories etc.
