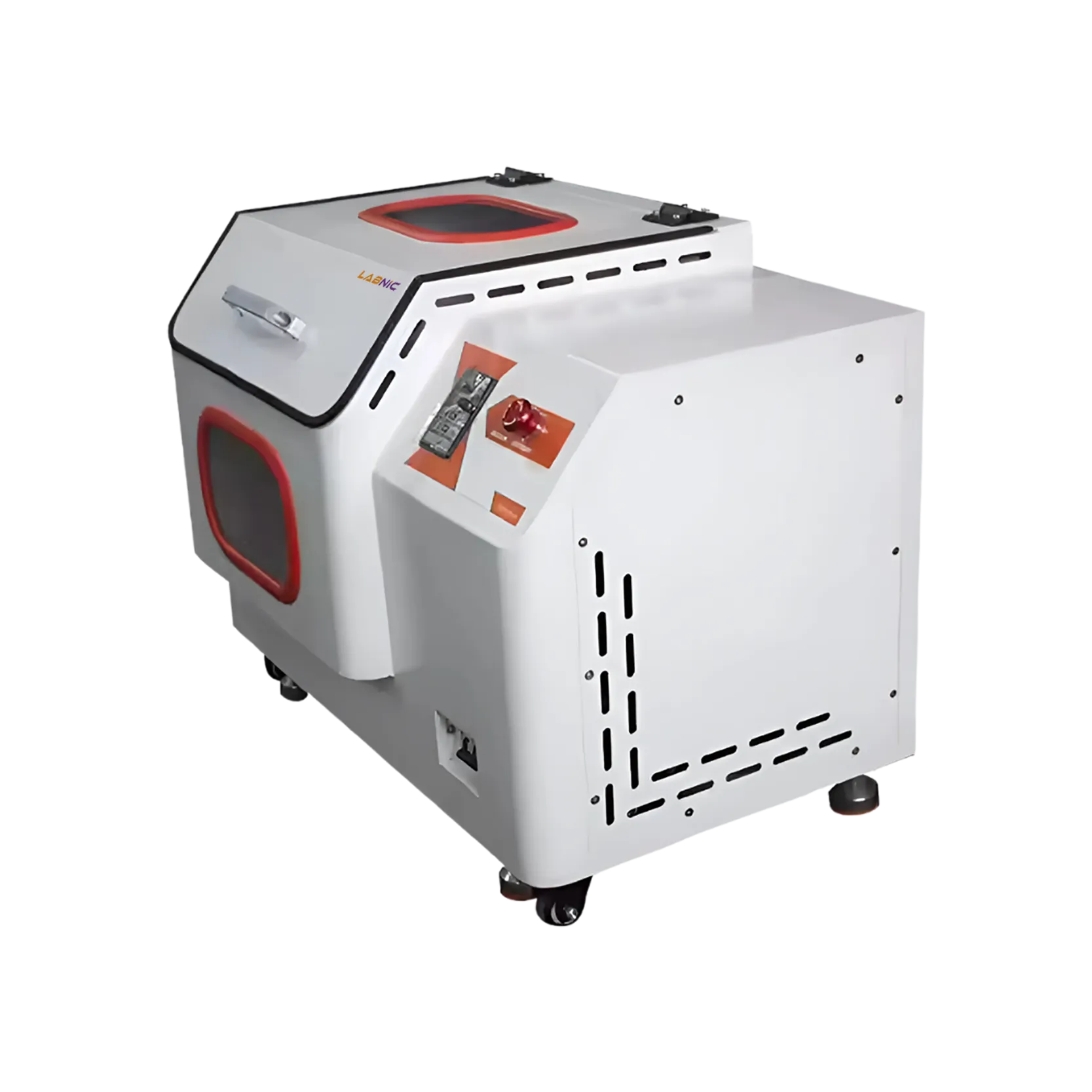

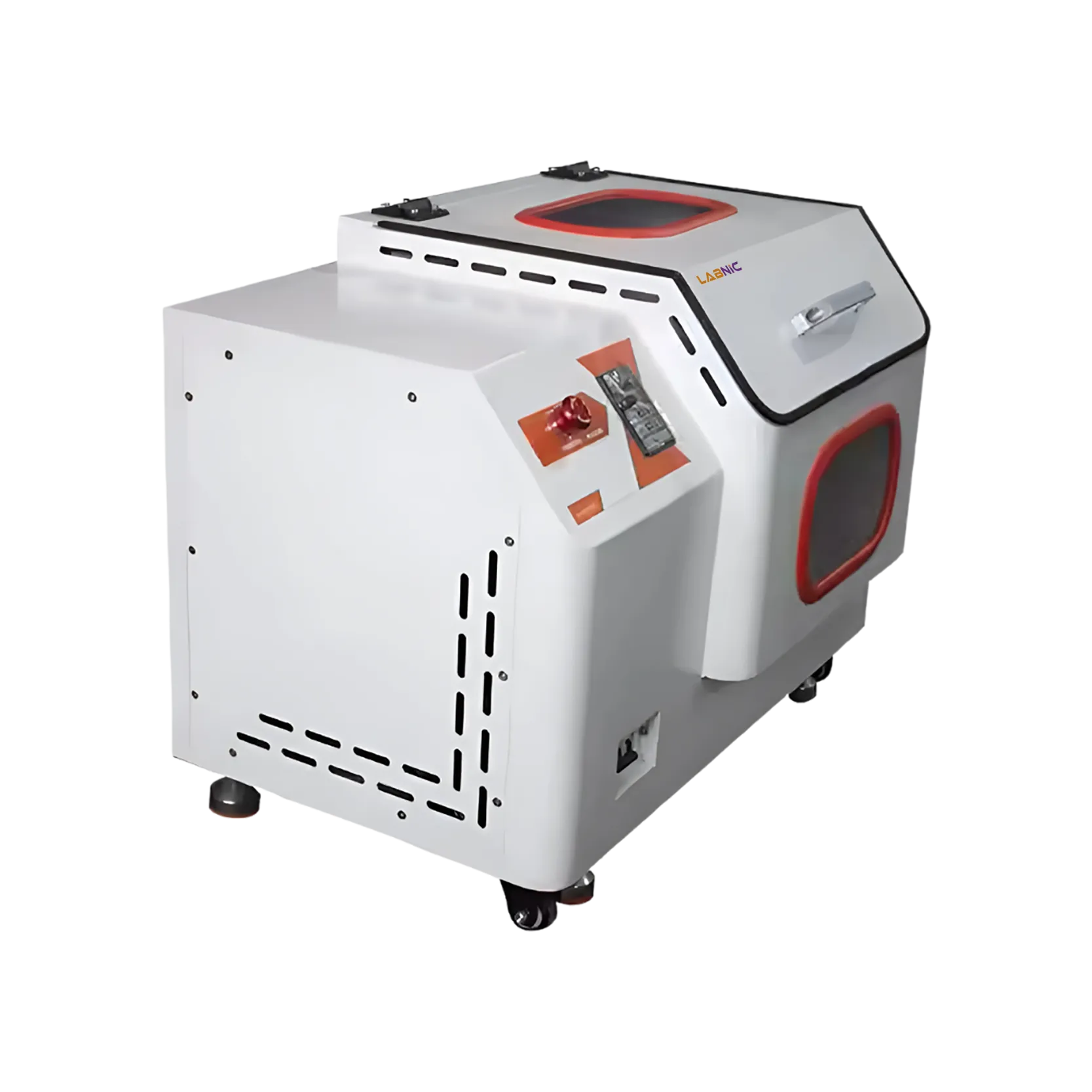

Planetary Ball Mill Machine LBN-BM146 operates at a rotational speed of 60 to 520 r/min for efficient grinding. Equipped with adjustable belt for tightness to maintain stability during operation. It supports multiple grinding modes for a wide range of materials. Incorporated with noise suppression technology for quiet lab environments. Our Planetary Ball Mill Machine is designed for applications requiring the highest degree of fineness.
| Capacity | 12 L |
| Per Jar Capacity | 500 to 2000 ml |
| Vacuum Jar Capacity | 250 to 1000 ml |
| Jar Quantity | 2 to 4 |
| Speed Rate | 2:1 r/min |
| Revolution Speed | 30 to 260 r/min |
| Rotation Speed | 60 to 520 r/min |
| Long Run Time | 100 Hour |
| Run Time | 1 to 9999 Hour |
| Noise | < 60 dB |
| Multi Section Speed Cutting | 7 Sections |
| Feed Particle Size | < 15 mm, Hard Material < 3 mm |
| Grain Size | 0.1 μm or 100 nm |
| Ball Material Ratio | (2 to 10):1 |
| Grinding Mode | Dry/ Wet/ Vacuum Grinding |
| Loading and Unloading Method | Intermittent Type |
| Transmission Mode | Gear Drive |
| Motor Power | 1.5 Kw |
| Rated Voltage | 220 V |
| Rated Power | 750 W |
| Frequency | 50 Hz |
| Dimension | 80 × 60 × 75 cm |
| Weight | 190 kg |
LCD Display
Safety Mechanism
Heat Dissipation Function
Robust Design
Multi-Section Speed Settings
Planetary Ball Mill Machine LBN-BM146 is used for geology, metallurgy, mineral analysis, electronics, chemical industries, biological laboratories, quality testing, environmental and medicinal research.
Download Catalog for Planetary Ball Mill Machine LBN-BM146

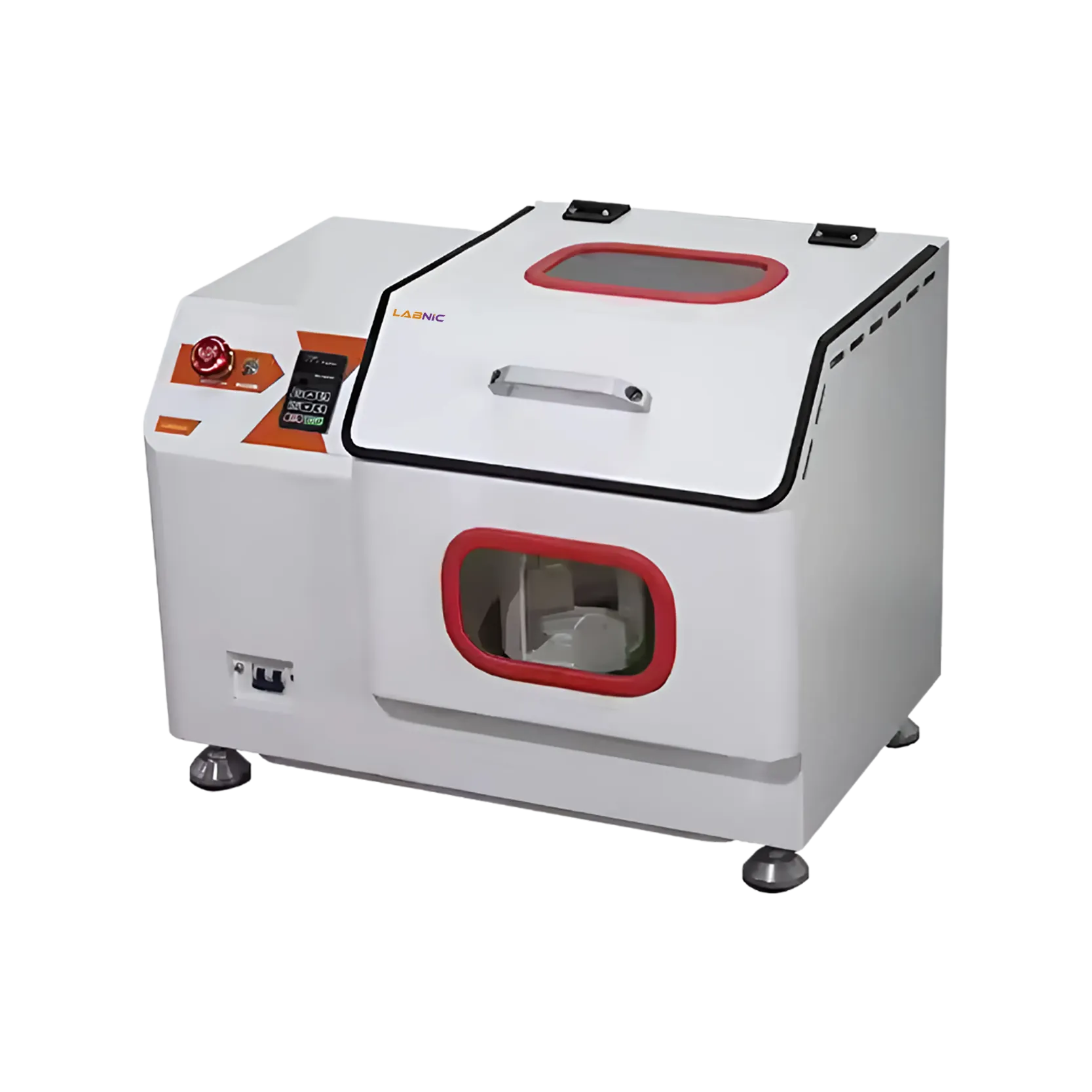

DownloadLabnic Planetary Ball Mill Machine offer varied capacity ranging from 400ml to 12L for powerful and rapid grinding. They are capable of low-noise operation efficient in quiet laboratory environments. These machines come with multiple grinding modes for dry, wet and vacuum processing. Their digital interface makes milling easier and effortless for users. Our Planetary Ball Mill Machine is ideal in the fields of geology, biological laboratories and chemical industries.
Capacity : 400 ml
Per Jar Capacity : 50 to 100 ml
Vacuum Jar Capacity : 50 ml
Jar Quantity : 2 to 4
Capacity : 1000 ml
Per Jar Capacity : 50 to 200 ml
Vacuum Jar Capacity : 50 to 100 ml
Jar Quantity : 2 to 4
Capacity : 2000 ml
Per Jar Capacity : 50 to 500 ml
Vacuum Jar Capacity : 100 to 250 ml
Jar Quantity : 2 to 4
Capacity : 4000 ml
Per Jar Capacity : 50 to 1000 ml
Vacuum Jar Capacity : 250 to 500 ml
Jar Quantity : 2 to 4
Capacity : 8000 ml
Per Jar Capacity : 500 to 2000 ml
Vacuum Jar Capacity : 250 to 1000 ml
Jar Quantity : 2 to 4
