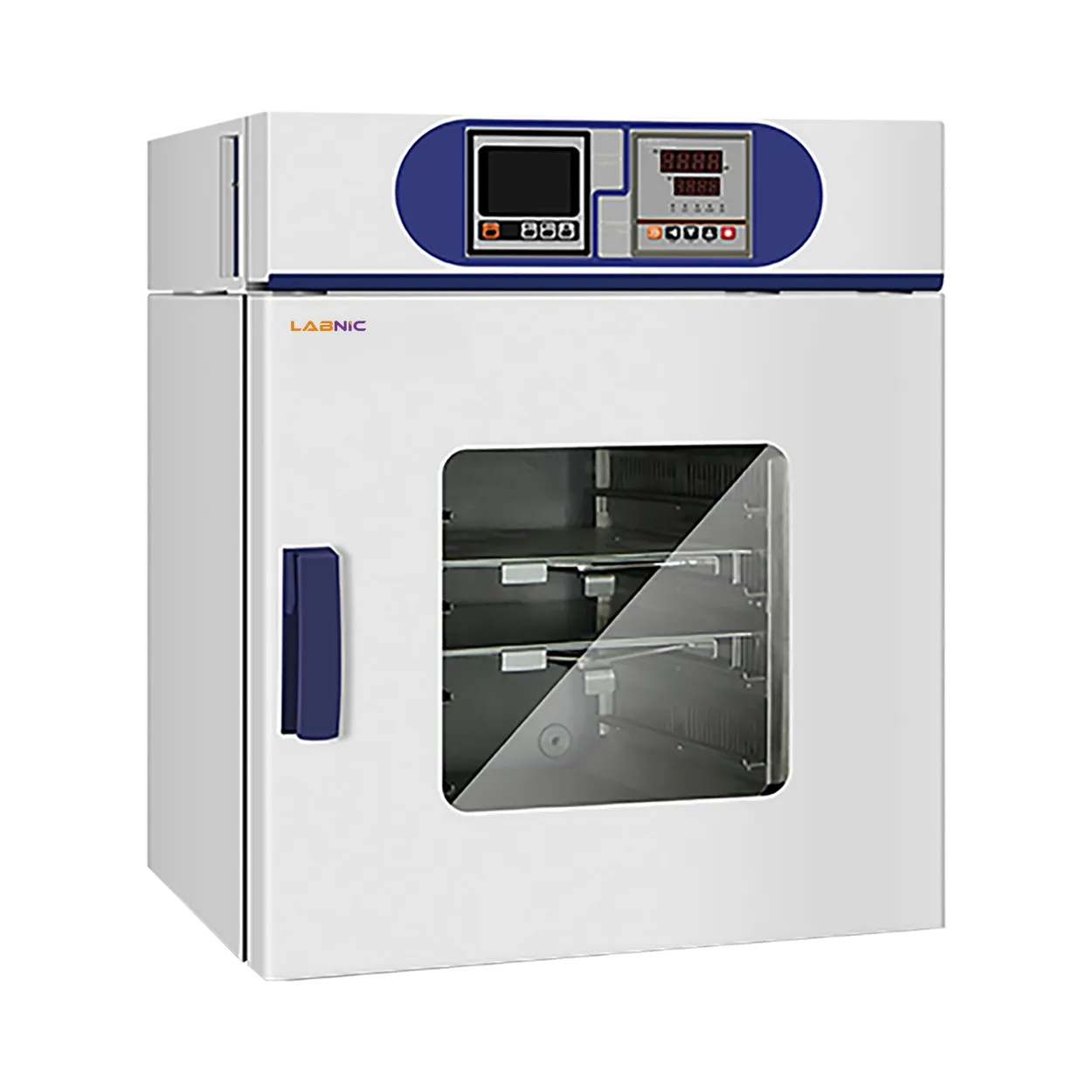

Vacuum Drying Oven LBN-VO132 device allows for effective, gentle drying without damaging the material being dried. It provides excellent performance by maintaining a precise temperature range of 5 to 250 °C. The 50-litre oven uses cavity pre-heating technology and shelf heat transfer to ensure that the experiment runs smoothly. Silicone door seals and high-density thermal insulation material, respectively, ensure tightness and prevent energy loss due to heat transfer.
| Capacity | 50 L |
| Temperature Range | 5 to 250 °C |
| Temperature Resolution | ±1℃ |
| Temperature Fluctuation | ±1℃ |
| Ambient Temperature | 10 to 30 °C |
| Humidity | <70% |
| Timer Range | 0 – 99H or 0 – 999Min |
| Vacuum Degree Control | Manual control |
| Degree of Vacuum Display | Pointer display |
| No of Trays | 2 |
| Interior Material | SUS304 Stainless Steel Inner |
| Power | 1200 W |
| Supply Voltage | 220V/50Hz |
| Internal Dimension (H × W × D) | 375×348×385 mm |
| External Dimension (H × W × D) | 783×635×550 mm |
| Packing Dimension (H × W × D) | 900×715×670 mm |
| Net Weight | 68 Kg |
Integrated, dot-matrix LCD display design, for highest operational comfort
Adaptive PID controller, prevent temperature soaring
Built-in multifunctional memory menu, connect to multiple devices (up to 16 units)
Temperature and humidity control up to 30 sets
Time setting:0-99h, 0-9999m programs can be execute automatically cycles
Silicone door seal, isolation type hinge design, with the door handles, belt fastening to ensure tightness
high-density thermal insulation material wrapped, avoid energy loss due to heat transfer
PT100 sensor, short response time and low self-heating temperature
Arc shaped designed for highest operational comfort
Convenient vertical structure, maximize work chamber
Internal surface is smooth and less weld, easy cleaning and maintenance
Pull multilayer shelf design, less metal accessories, easy to clean
Liquid crystal micro-computer controller with diagnostic function
Cavity with SUS304 stainless steel material, good corrosion resistance and durability
Automatic double over temperature protection function
Multiple over-temperature protection, audible and visual alarm
anti-pressure protection device in the door frame to avoid debris damage
Vacuum Drying Ovens are suitable for use in electrical and semi-conductor industries, life science sector, biopharmaceutical, medical utilities and agricultural research.
