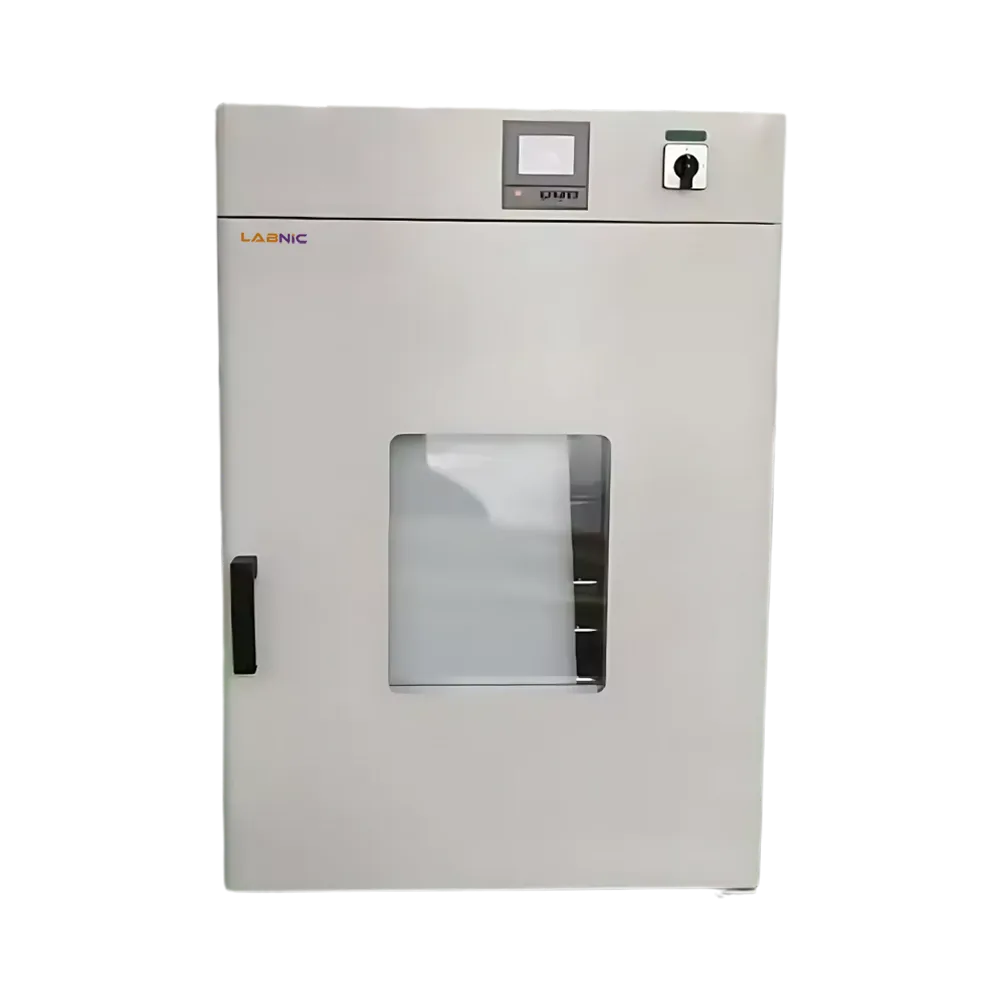

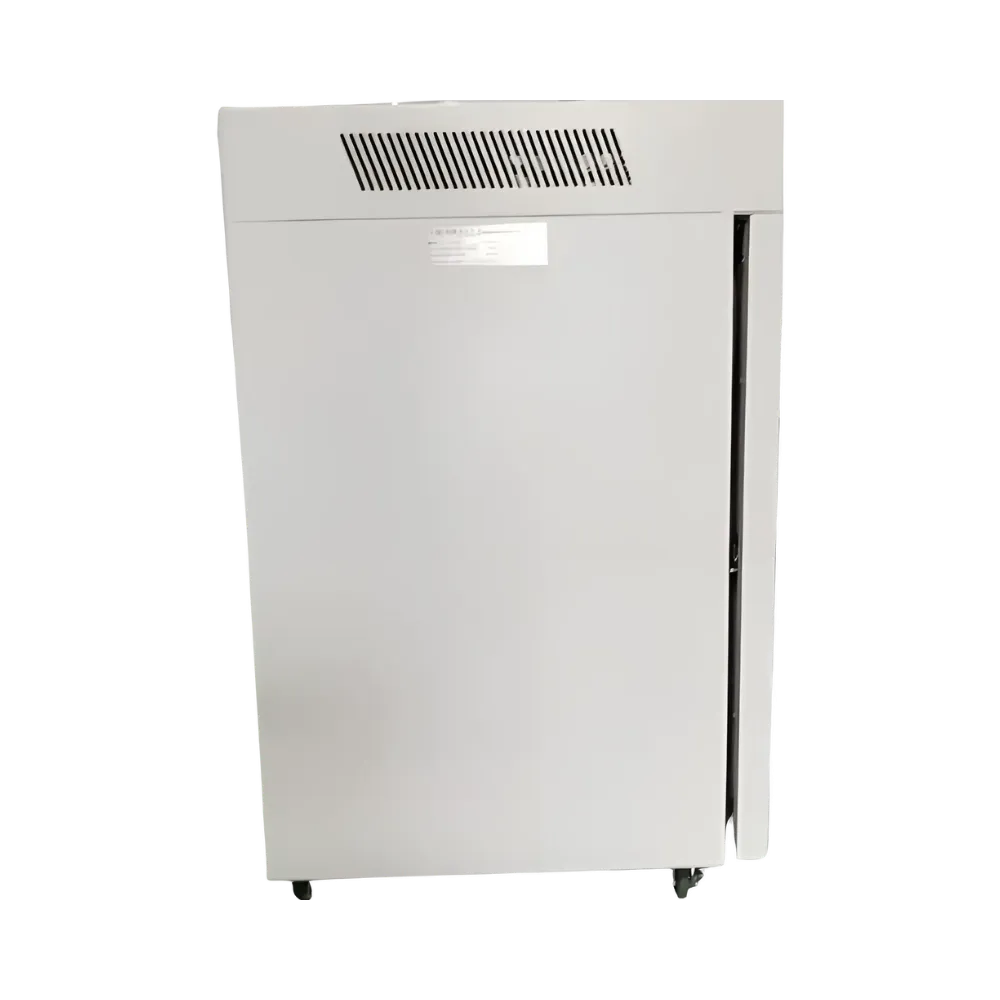

Vertical Heating Incubator LBN-VHI135 is a vertical floor standing incubating device which is of 270 L capacity having a temperature range of RT+5 to 66 ℃. Equipped with stainless steel chamber having removable shelves which are easy to clean. The air duct provided evenly distributes the temperature by maintaining the incubation environment which is controlled by the microprocessor control system.
Capacity | 270 L |
Temperature Range | RT +5 to 66 ℃ |
Temperature Fluctuation | 0.5 ℃ |
Temperature Uniformity | ±1 ℃ |
Temperature Resolution | 0.1 ℃ |
Display | LCD |
Voltage | AC 220 V, 50 Hz |
Power Consumption | 600 W |
Chamber Dimension (W×D×H) | 600×600×750 mm |
No. of Shelves | 2 |
Net Weight | 88 kg |
Gross Weight | 105 kg |
Designed with unique air duct for good temperature uniformity
Integrated with a microprocessor control system with temperature correction and timing function
Equipped with large LCD screen display and high-quality stainless-steel chamber with removable shelves which are easy-to-clean
Options: multi-segment programmable control, built-in printer, RS485 interface, and UV sterilizer
Vertical Heating incubators are used for the growth and storage of bacterial cultures mainly in the department of microbiology, biotechnology, research and development industries etc.
