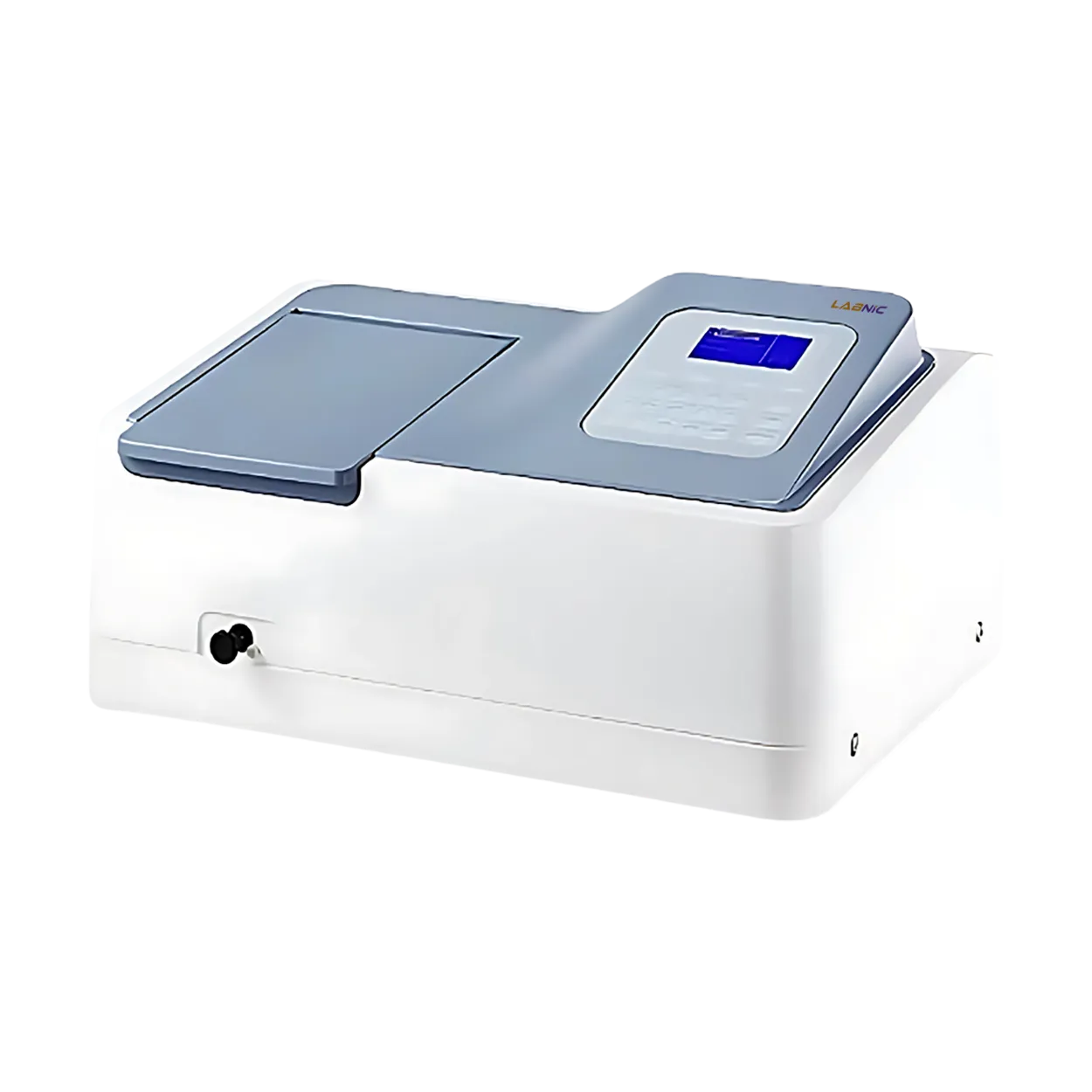

Visible Spectrophotometer LBN-VS132 is a is an easy-to-use instrument that produces precise results with a baseline stability of 0.002A/h. The instrument has a high resolution, a 320 to 1100 nm continuous wavelength range, and a spectral bandwidth of 2 nm. The system includes a backlit LCD screen, on-board data storage for up to 200 data groups, and a large storage compartment for cuvettes with path lengths ranging from 5 to 100mm.
| Optical System | Single Beam |
| Wavelength Range | 320 to 1100 nm |
| Spectral Bandwidth | 2.0nm |
| Wavelength Accuracy | ±0.5nm |
| Wavelength Repeatability | ≤0.3nm |
| Photometric Range | -0.3-3.0A, 0-200%T |
| Photometric Accuracy | ±0.002A@0.5A, ±0.004A@1.0A, ±0.3%T@100%T |
| Photometric Repeatability | ≤0.001A@0.5A, ≤0.002A@1.0A, ≤0.15%T@100%T |
| Stability | ≤0.002A/h @500nm |
| Light Source | Tungsten lamp |
| Stray Light | ≤0.5%T |
| Sample Compartment | 4-position,10 mm |
| Display | LCD |
| Output | USB & Parallel port |
| Power | 80 W |
| Power Supply | 110/220VAC, 50/60Hz |
| Dimension (L × W × H) | 490 × 360 × 210 mm |
| Weight | 12 Kg |
Space saving compact design, occupies less bench space
Integrated user interface, user-friendly operation
Auto setting wavelength function
High photometric accuracy
Robust, dependable and low maintenance
Wide continuous wavelength range for test flexibility
Large sample compartment, can accommodate 5 – 100 mm path length
PC connectivity through USB
These are ideal for chemical laboratories, bio-chemical laboratories, analytical and medical laboratories, environment protection and Agricultural industries.
Download Catalog for Visible Spectrophotometer LBN-VS132
Download
Optical System : Single Beam
Wavelength Range : 325 to 1000 nm
Spectral Bandwidth : 4.0nm
Wavelength Accuracy : ±2nm
Optical Geometry : Reflect: di:8°, de:8° (diffused illumination, 8-degree viewing angle)
Integrating Sphere Size : 48mm
Light Source : Combined LED Light
Spectrophotometric Mode : Concave Grating
Integrating Sphere Size : Φ48mm
Light Source : Combined LED Light
Spectral Separation Device : Concave Grating
Detector : 256 Image Element Double Array CMOS Image Sensor
Integrating Sphere Size : Φ48mm
Light Source : Combined LED Light
Spectral Separation Device : Concave Grating
Detector : 256 Image Element Double Array CMOS Image Sensor
Optical Geometry : Reflect: di:8°, de:8° (diffused illumination, 8-degree viewing angle)
Integrating Sphere Size : 48mm
Light Source : Combined LED Light, UV Light
Spectrophotometric Mode : Concave Grating
Illumination/Observation System : 45/0 (45 ring-shaped illumination, vertical viewing)
Integrating Sphere Size : Φ48mm
Spectral Separation Device : Concave Grating
Detector : 256 Image Element Double Array CMOS Image Sensor
Optical System : Single Beam
Spectral Bandwidth : 4.0 nm
Wavelength Range : 200-1000 nm
Wavelength Accuracy : ±2 nm
Optical System : Double beam
Detector : PMT
Wavelength Range : 190 – 900 nm
Spectral Bandwidth : 0.1 nm – 5 nm
Optical System : Single Beam
Spectral Bandwidth : 2.0 nm
Wavelength Range : 190-1100 nm
Wavelength Accuracy : ±0.5 nm
Optical Path : l/0.5/0.05 mm automatic conversion
Optical Range : 190-1100 nm
Sample Volume : 0.3-2.0 µl
Light Source : Long life xenon lamp
