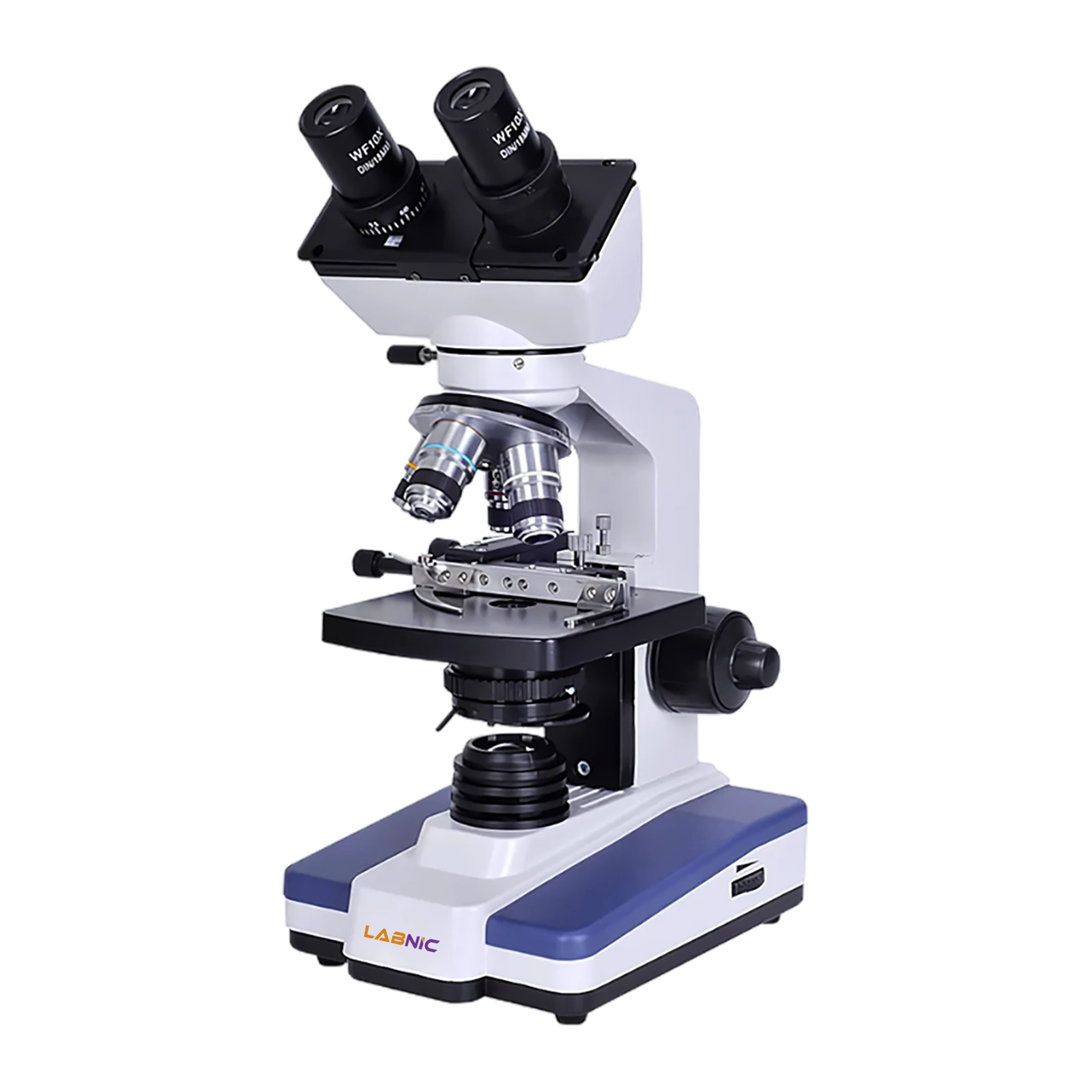

Biological Microscope LBN-BO135 consists of a sliding binocular eyepiece with a right tube adjustable diopter and a 45° inclination and 360° rotation. It features an achromatic optical system with a magnification of 40x–1000x. It has a 2-piece eyepiece with a pointer WF10X and an outward quadruple nosepiece. It is simple, safe, reliable, and easy to use.
| Optical Type | Achromatic |
|---|---|
| Standard Magnification | 40X-1000X |
| Head Type | Sliding Binocular |
| Head Inclination | 45 degree |
| Head Rotation | Head Rotate 360 degree |
| Eyepiece | WF10X with pointer |
| Nosepiece | 4 holes, outward |
| Objective | Achromatic 4X, 10X, 40X(s), 100X (s, o) |
| Working Stage Type | 1 layer +sliding ruler |
| Working Stage Size | 100 × 90mm |
| Focusing Type | Coaxial Coarse & Fine |
| Condenser | 1.25 N. A |
| Light Source | LED, brightness adjustable |
| Power Supply | AC110V-240V |
| Transmit Light | 6V/20W |
| Weight | 16Kg/14Kg |
| Dimensions (L × D × H) | 480 × 320 × 450 mm |
It consists of an achromatic optical system
It is safe, simple, reliable, and easy to use
It features a sliding binocular head with a 45° inclination
The quadruple outward nosepiece
Type of coaxial coarse and fine focusing
Iris diaphragm with 1.25 N.A
Eyepiece 5X
Eyepiece 10X
Eyepiece 16X
Achromatic 4X
Achromatic 10X
Achromatic 20X
Achromatic 40X
Achromatic 60X
Achromatic 100X
Plan-concave Mirror
Rechargeable Battery
Wooden Box
Biological Microscope is utilized in research facilities, biological laboratories, medical facilities, health clinics, scientific facilities, etc. for sample analysis, tissue culture, and cell identification.
