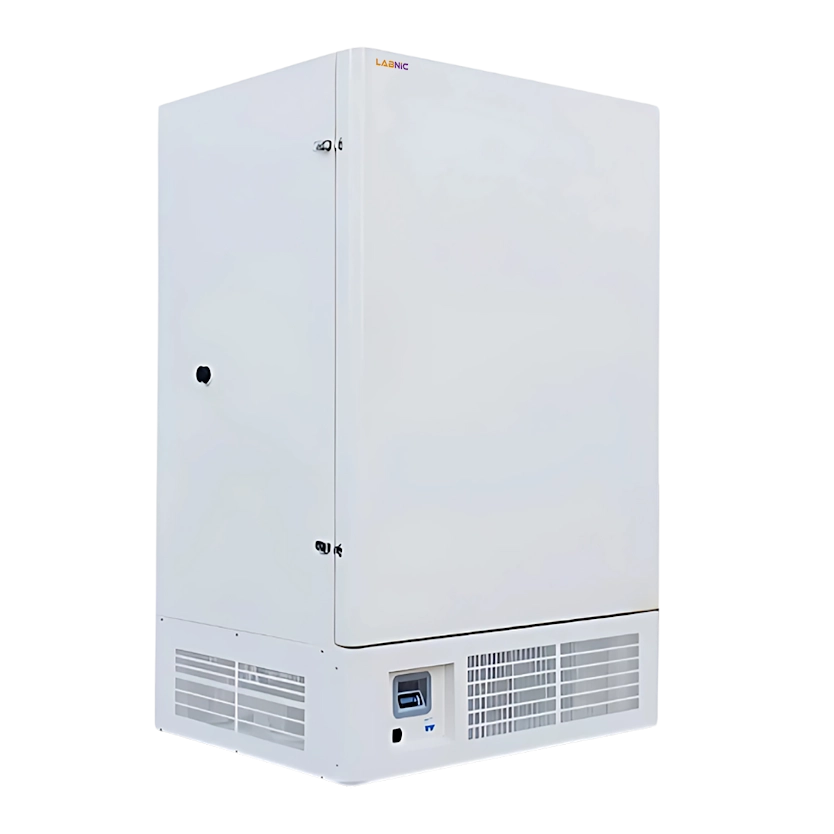

Freezer Plasma LBN-FP110 offers a storage capacity of 570L designed for clinical laboratory storage applications. It offers a temperature range of -10°C to -30°C for secure and stable storage of sensitive biological materials. Equipped with SECOP compressors, visual and audible alarm systems, and safety lock mechanisms, it ensures optimal reliability and protection. Integrated shelves, smooth-locking casters, and a 25mm test port provide enhanced usability. Our Freezer Plasma supports clinical laboratories, blood banks, and biotech facilities that require reliable cryogenic storage applications.
| Capacity | 570L |
|---|---|
| Temperature Range | -10°C to -30°C |
| Ambient Temperature Range | +10°C to +32°C |
| Temperature Readability | 0.1°C |
| Cooling Type | Direct Cooling |
| Defrost Type | Manual |
| Controller | Microprocessor with LCD display |
| Sensor | Platinum Resistance Temperature Sensor |
| Door Lock | Mechanical |
| Password Protection | Controller Settings |
| Power Failure Protection | Delayed Compressor Restart |
| Controller Error Backup | Memory-Based Cooling Cycle Retention |
| Casters | 4 Lockable Wheels |
| Shelves | Adjustable |
| Access Port | 25mm Test Hole for Monitoring System |
| Inner Liner Material | 304 Stainless Steel |
| External Material | Cold-Rolled Steel with Spray Coating |
| Rated Power | 1000W |
| Power Consumption | 12 kWh / 24h |
| Power Supply | 220V / 50 to 60Hz |
| Product Dimensions | 870 × 1030 × 1975 mm |
| Packaging Dimensions | 1000 × 1020 × 2050mm |
| Net Weight | 350 kg |
| Gross Weight | 370 kg |
Precise Control
Integrated Display and Sensor
Various Cooling Systems
Safety Door Lock
Visual and Audible Alarms
Power Failure Protection
Controller Error Protection
Freezer Plasma LBN-FP110 is designed for reliable ultra-low temperature storage of plasma, vaccines, and biological samples in blood banks, research institutes, and clinical laboratories.
