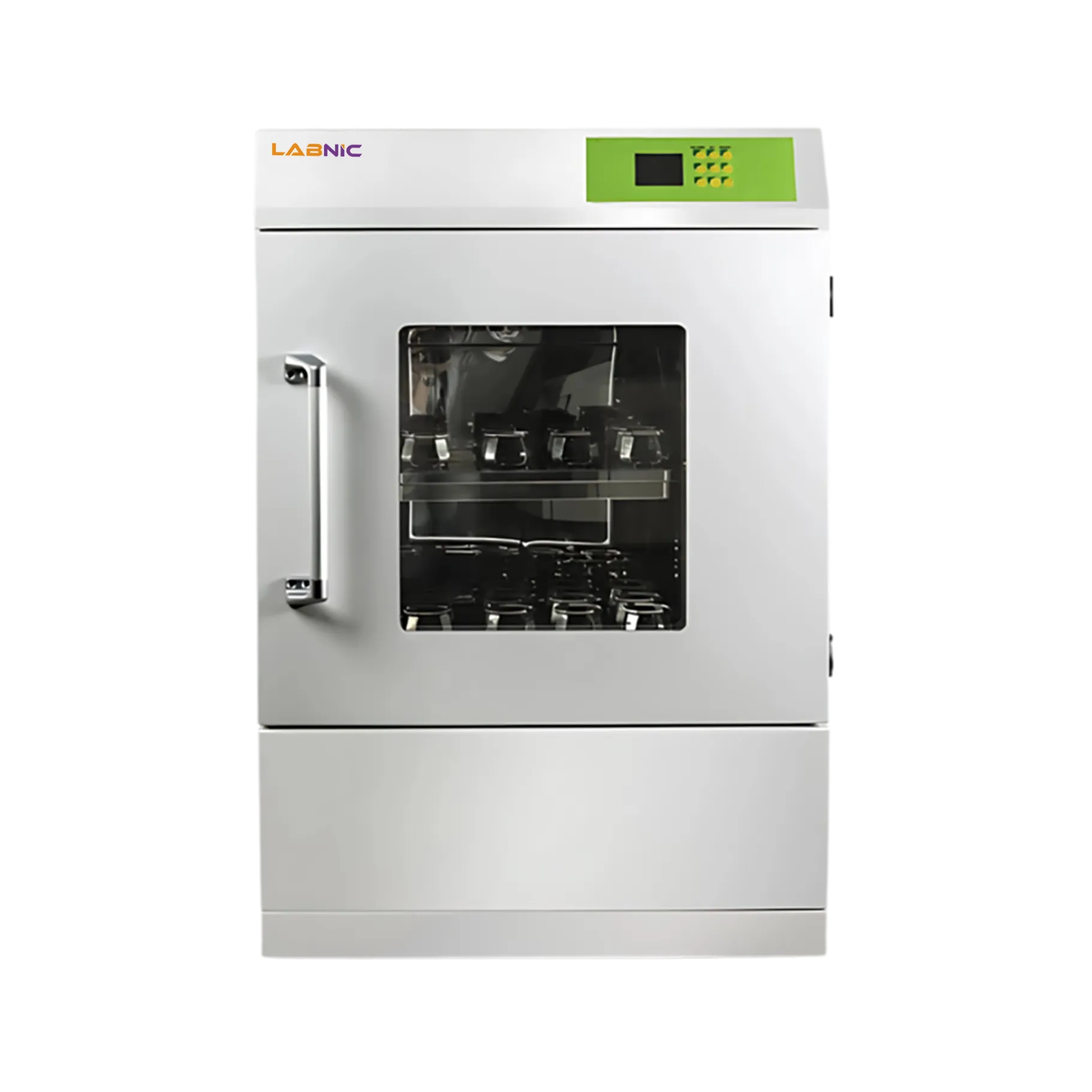

Laboratory Shaker Incubator LBN-LS142 Catalog

Laboratory Shaker Incubator LBN-LS142 is a high-performance device with a low maintenance/no maintenance torque motor included. A slope design control panel with an LCD display for controlling and monitoring parameters within a temperature range of RT+5 to 60 °C. The chamber has a capacity of 170 L and two shelves with a standard capacity of 250 ml. The password locking feature and non-volatile memory aid in the event of a power outage.

Temperature Range	RT+5 to 60 °C
Capacity	170 L
Shaking Speed	40 to 300 rpm
Temperature Accuracy	± 0.1 °C
Temperature Uniformity	± 1 °C
Time Range	1 to 9999 min
Swing Amplitude	Φ26 mm
Speed Accuracy	±1 rpm
Refrigeration System
Door	Single
Standard Configuration	250 ml×24
Maximum Capacity	100 ml×48 or 250 ml×24 or 500 ml×18 or 1000 ml×12
Display	LCD
No. Of Trays	2
Tray Size	500×350 mm
Voltage	AC 220V to 240V ± 10 %, 50 to 60 Hz
Power	380 W
Chamber Dimension (W×D×H)	660×440×650 mm
External Dimension (W×D×H)	700×560×1260 mm
Net Weight	140 kg

Incubator is integrated with shaker saving the space and cost

Designed with a superior-quality steel shell, polished stainless-steel chamber

Slope design panel with large LCD for better visual effect

The door is provided with a large view window, a leakage protection system, and built-in lighting for easy observation

Comes with operation data memory and password locking function to eliminate faulty operation

Non-volatile memory retrieves the settings if any power fluctuations occur, and the device automatically restarts as originally programmed after power is restored

Audible and visual alarm system alerts the user if the measured temperature deviates from set temperature by 3℃ and it automatically stops heating

Equipped with the most advanced large torque motor to ensure continuous work without maintenance and low noise

Laboratory Shaker Incubators are often used for cell culturing, cell aeration, and solubility studies mainly in the field of biology and chemistry.
