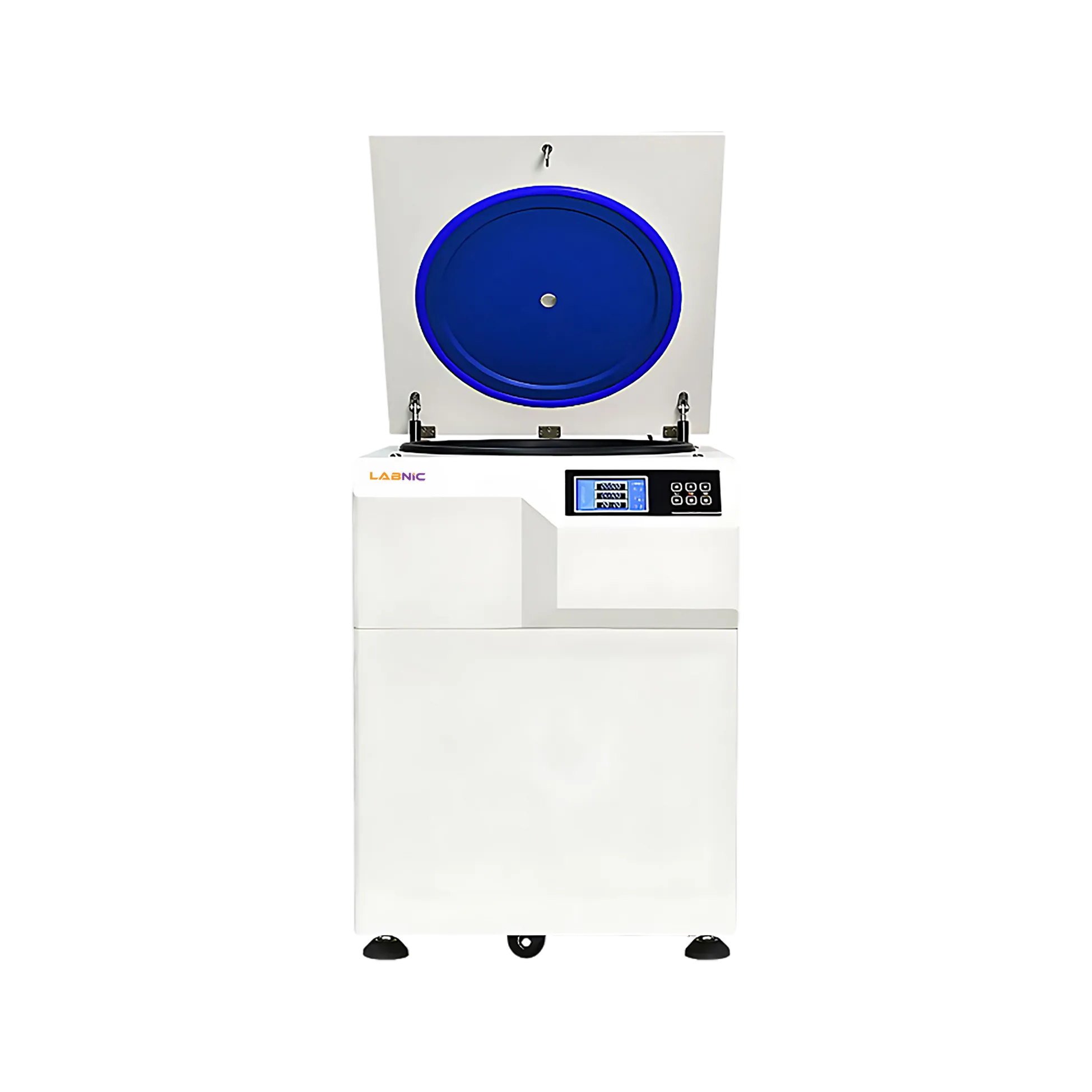

Crude Oil Centrifuge LBN-COC141

Overview

Crude Oil Centrifuge LBN-COC141 offers a maximum speed of 4000 rpm and accommodates 4 sample tubes of 100 ml capacity. It operates at a temperature range from RT +10°C to 70°C, ensuring optimal separation with precise temperature control. Our centrifuge provides <15-minute analysis time, enabling high-throughput processing of multiple samples. Equipped with LCD screen for monitoring variable parameters.

Specifications :

Maximum Speed	4000r/min
Maximum Capacity	4 × 100ml
Maximum Centrifugal Force	3150 × g
Speed Accuracy	± 10r /min
Temperature Range	RT+10 ℃ to 70 ℃
Timing Range	0 to 99min 5 9 s
Noise	<65dB
Power Consumption	1.5KW
Power Supply Voltage	220V±10% 50Hz
Dimension (L × W × H)	750 × 620 × 900 mm
Weight	140 kg

Features :

• Suitable for on-site crude oil sand determination
• Over-speed and over-temperature protection
• Features self-diagnosis function
• Easy maintenance and longevity

Applications :

Crude Oil Centrifuge is ideal for determining the water content of crude oil in oil fields and is widely utilized in quality control, product optimization, environmental compliance, etc.

Rotors Selection :

Rotor	Capacity	RPM	RCF
Swing Rotor01 Horizontal hanging basket	4 × 100 ml	3000rpm	2102×g
Swing Rotor02 Horizontal Rotor	36× 10ml	4000 rpm	3150 ×g

Adapters :

Adapter	Capacity	RPM	RCF
Adapter 01	4 × 100 ml	3000rpm	2102×g
Adapter 02	4 × 100 ml	3000rpm	2102×g
Adapter 03	36 ×10ml	4000 rpm	3150 ×g
