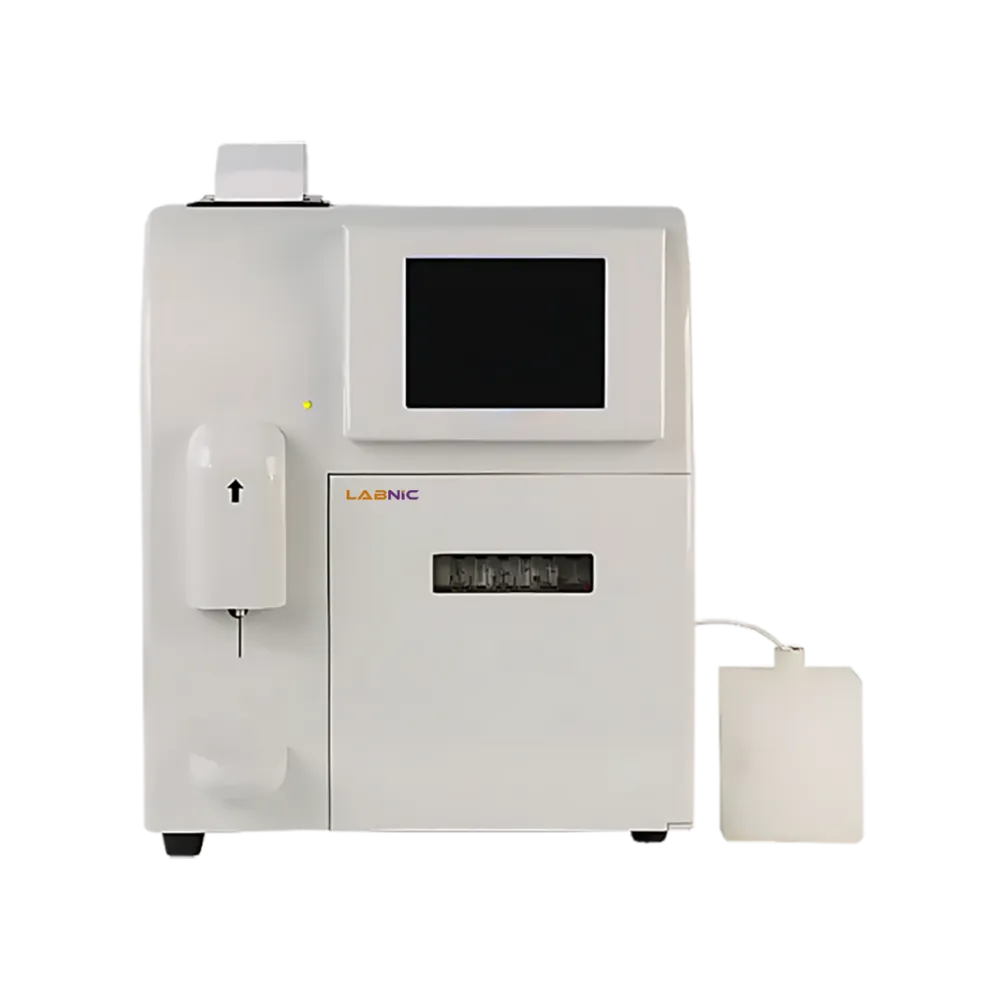

Electrolyte Analyzer LBN-EA153 is designed using the latest techniques and quality components as it provides numerous specifications to choose from. The analyzer tests different electrolytes such as K+, Ca++, Cl- and Na+. The simple and reliable design of fluid tubing system and electrodes minimizes the maintenance work. With a throughput of 80 samples per hour, the digital touch screen displays the results.
| Testing parameters | K+, Na+, Cl-, Ca++ |
| Sample volume | 80-150 µL |
| Reagent volume | 0.3 mL |
| Working temperature | 15-30 °C |
| Humidity | 20 - 80% |
| Throughput | 80 samples / hour |
| Calibration | Automatic or on-demand |
| Printer | Inner thermal printer |
| Display | 5-inch Touch screen |
| Storage | Up to 2000 tests |
| Interface | RS-232 |
| Power supply | 50/60 Hz, 80W |
| Dimensions (D × W × H) | (480 x 390 x 530) mm |
| Weight | 8 Kg |
Easy assembling and disassembling is possible
Low reagent consumption
Maintenance-free, ion selectivity electrode
Displays an automatic reagent replacement warning
Sample: serum, plasma, whole blood, urine, CSF
High degree of automation (sampling, calibrating, washing, maintenance)
Three modes of QC (High/middle/low)
5-inch touch screen display
An electrolyte analyzer is primarily used for the quantitative measurement of sodium, potassium, and chloride in whole blood, serum, or plasma at hospitals, clinics and laboratories.
