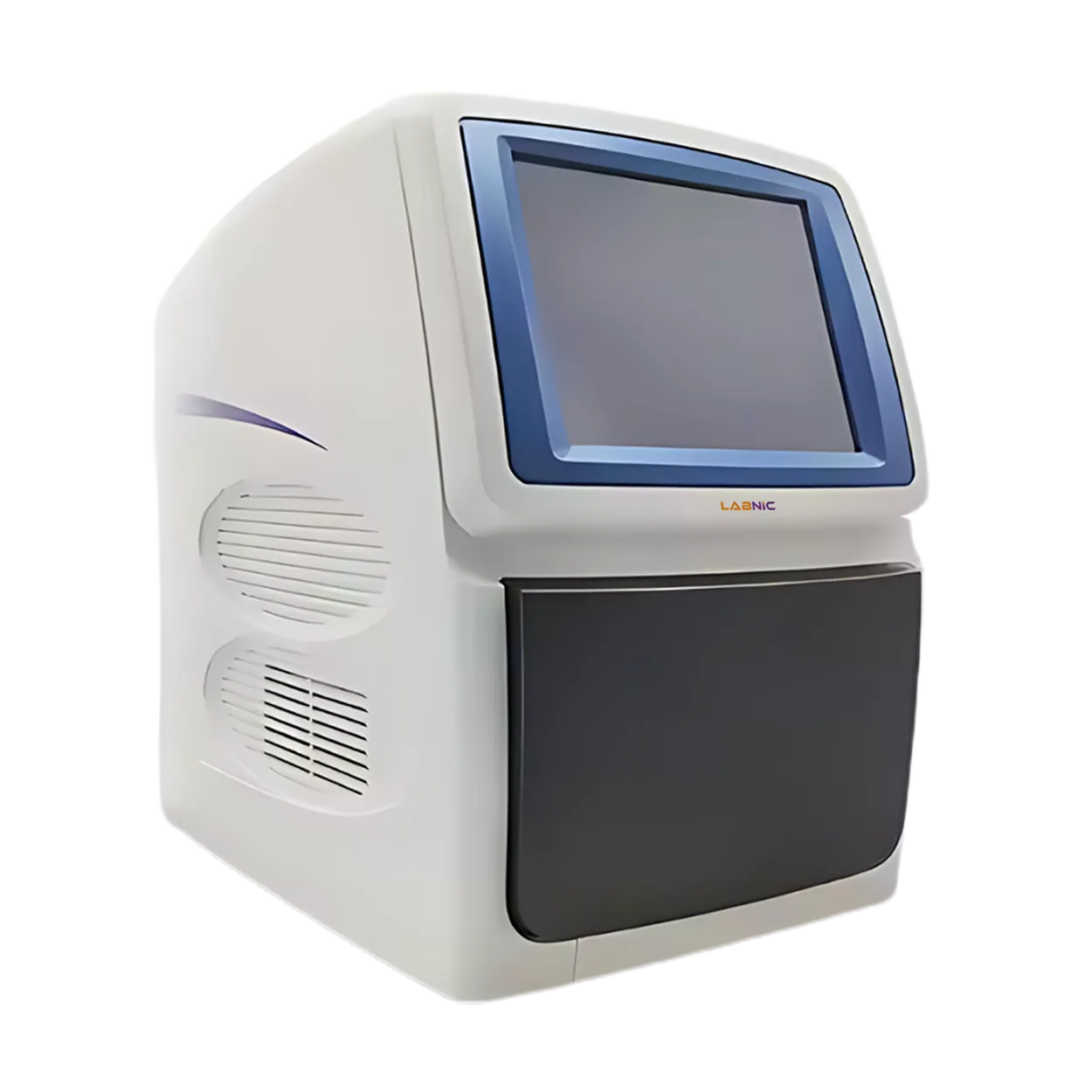

Real Time PCR LBN-RT151 is a fast thermal system with heating rates over 6.1°C/s and cooling rates over 5.0°C/s. Equipped with software-controlled Peltier technology, it ensures precise thermal cycling and reliable performance. Integrated with a 10.4-inch touchscreen and built-in PC software configuration for flexible operation. Our Real Time PCR supports quantitative analysis, SNP detection, and melting curve analysis in research and diagnostics.
| Fluorescence Channels | 4 |
| Fluorescence Scanning Time | 7 Second |
| Heating Method | Peltier |
| Max Heating Rate | ≥ 6.1°C/s |
| Max Cooling Rate | ≥ 5.0°C/s |
| Uniformity of Thermo Control | ± 1℃ |
| Accuracy of Thermo Control | ≤ 1℃ |
| Gradient Interval Range | 1°C to 40°C |
| Gradient Block | 12 Rows |
| Special Temperature Protocol | Thermal Gradients PCR, Long PCR, |
| Sample Testing Linearity and Repeatability | Linear Correlation: r Greater than 0.999; Repeatability: Cycle Threshold (Ct) Value |
| Light Source | High-Brightness, Long-Life and Maintenance-Free LED Light Source, |
| Detector | Photodiode (PD), Top Scanning |
| Excitation Range | CH1: 4650m CH2:527mm CH3:580mm |
| Detection Range: | CH1:510mm CH2 565mm CH3:616nm |
| Fluorescence Dynamic Range | Adjustable |
| Sample Dynamic Range | 1 to 1010 Copies |
| Control Modes | PC Direct Control |
| Power Failure Protection | Automatically Start Running Experiments After Power Supply, No |
| Data Storage and Transmission | Upload and Download Through USB Disk, 1000 Results Can be Stored in |
| Reporting Function | Templates Reserved Customized |
| Power Supply and Power Consumption | AC 100 to 240V, 50 to 60Hz,900VA |
| Instrument Dimension (W × L × H) | 355 × 475 × 484 mm |
| Packing Dimension | 670 × 580 × 580 mm |
| Gross Weight | 38kg |
Power Cord
Network Cable
USB Flash Disk
Certification Packing List
Warranty Card
Fuse Tube Sponge Filter
Real-Time PCR LBN-RT151 is used in scientific research for gene expression analysis, applied, clinical diagnostics, food safety, and environmental testing.
Real-Time PCR LBN-RT151 is used in scientific research for gene expression analysis, applied, clinical diagnostics, food safety, and environmental testing.
