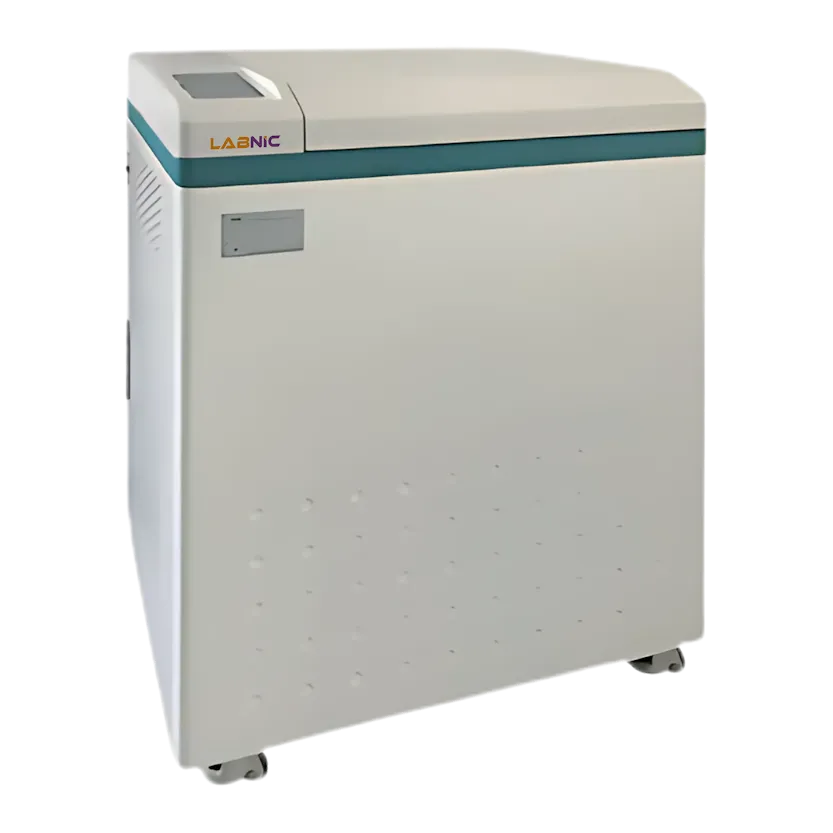

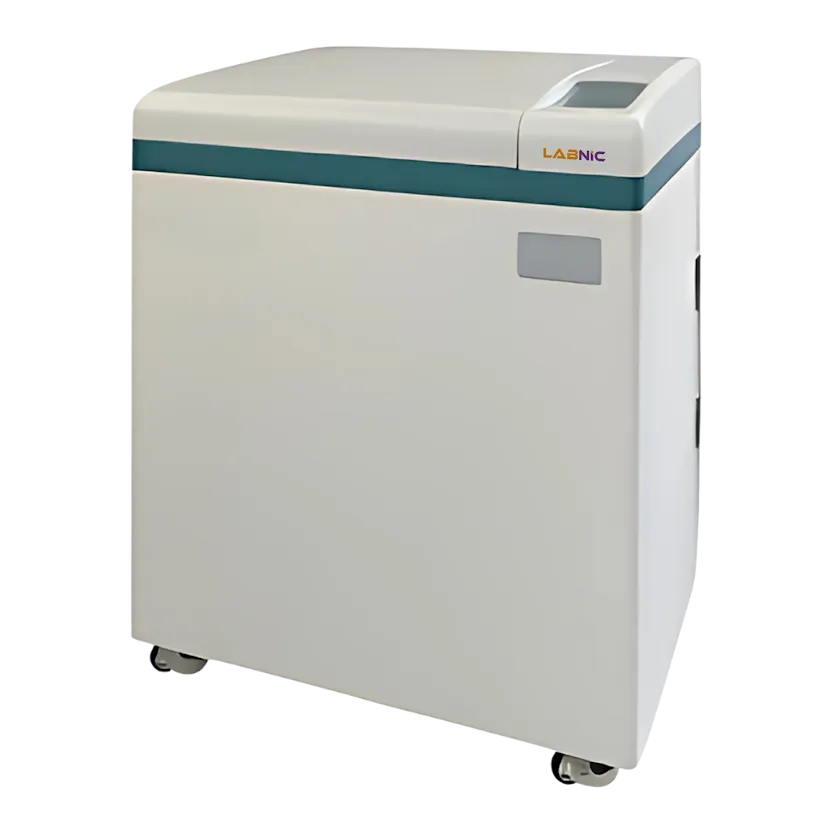

Vertical Autoclave LBN-VA158 is designed with a 60L capacity with a working temperature of 134°C, delivering fast and reliable sterilization performance. It features an elevating type door for convenient loading/unloading and a pulse vacuum system with -0.080 MPa limit for complete sterilization. Equipped with a separate steam generator for energy saving and a 7-inch capacitive touch screen for easy control. Integrated sterile ventilation and steam water circulation keep the chamber clean and dry. Our Vertical Autoclave is ideal for sterilizing laboratory instruments, culture media, surgical tools, and other high-temperature resistant items.
| Capacity | 60L |
| Working Pressure | 0.22 MPa |
| Working Temperature | 134°C |
| Max Working Pressure | 0.23 MPa |
| Heat Average | ≤ ±1°C |
| Timer | 0 to 99 min or 0 to 9 hr 59 min |
| Temperature Adjustment | 105 to 134°C |
| Chamber Volume | 60L (Φ396×490 mm) |
| Power Consumption | Steam generator: 3 kW; Dry blanket: 2.4 kW |
| Power Supply | AC 220V, 50 Hz |
| Overall Dimensions | 686×556×913 mm |
| Transport Dimensions | 786×656×1013 mm |
| Net Weight | 180 kg |
| Gross Weight | 210kg |
Vertical Autoclave LBN-VA158 is ideal for sterilizing lab instruments, media, glassware, and surgical tools in medical and research labs.
Vertical Autoclave LBN-VA158 is ideal for sterilizing lab instruments, media, glassware, and surgical tools in medical and research labs.
Most Frequently Asked Questions
1. What are Vertical Autoclaves used for?
Ans. Vertical Autoclaves are used for high pressure steam sterilization of laboratory instruments and equipment.
2. What temperature range is supported by Vertical Autoclaves?
Ans. Vertical Autoclaves operate within a temperature range of 135°C to 139°C for effective sterilization.
3. How does the upright design benefit Vertical Autoclaves?
Ans. Vertical Autoclaves feature an upright design that allows easy loading and unloading of materials.
4. What display features are included in Vertical Autoclaves?
Ans. Vertical Autoclaves are equipped with a high resolution LCD display showing real time set and actual temperatures.
5. What safety and alert systems are available in Vertical Autoclaves?
Ans. Vertical Autoclaves include alarm systems to signal cycle completion and indicate operational anomalies.
6. Where are Vertical Autoclaves commonly used?
Ans. Vertical Autoclaves are commonly used in educational institutes, laboratories, and quality assurance facilities.
Vertical Autoclave LBN-VA158 is designed with a 60L capacity with a working temperature of 134°C, delivering fast and reliable sterilization performance. It features an elevating type door for convenient loading/unloading and a pulse vacuum system with -0.080 MPa limit for complete sterilization. Equipped with a separate steam generator for energy saving and a 7-inch capacitive touch screen for easy control. Integrated sterile ventilation and steam water circulation keep the chamber clean and dry. Our Vertical Autoclave is ideal for sterilizing laboratory instruments, culture media, surgical tools, and other high-temperature resistant items.
