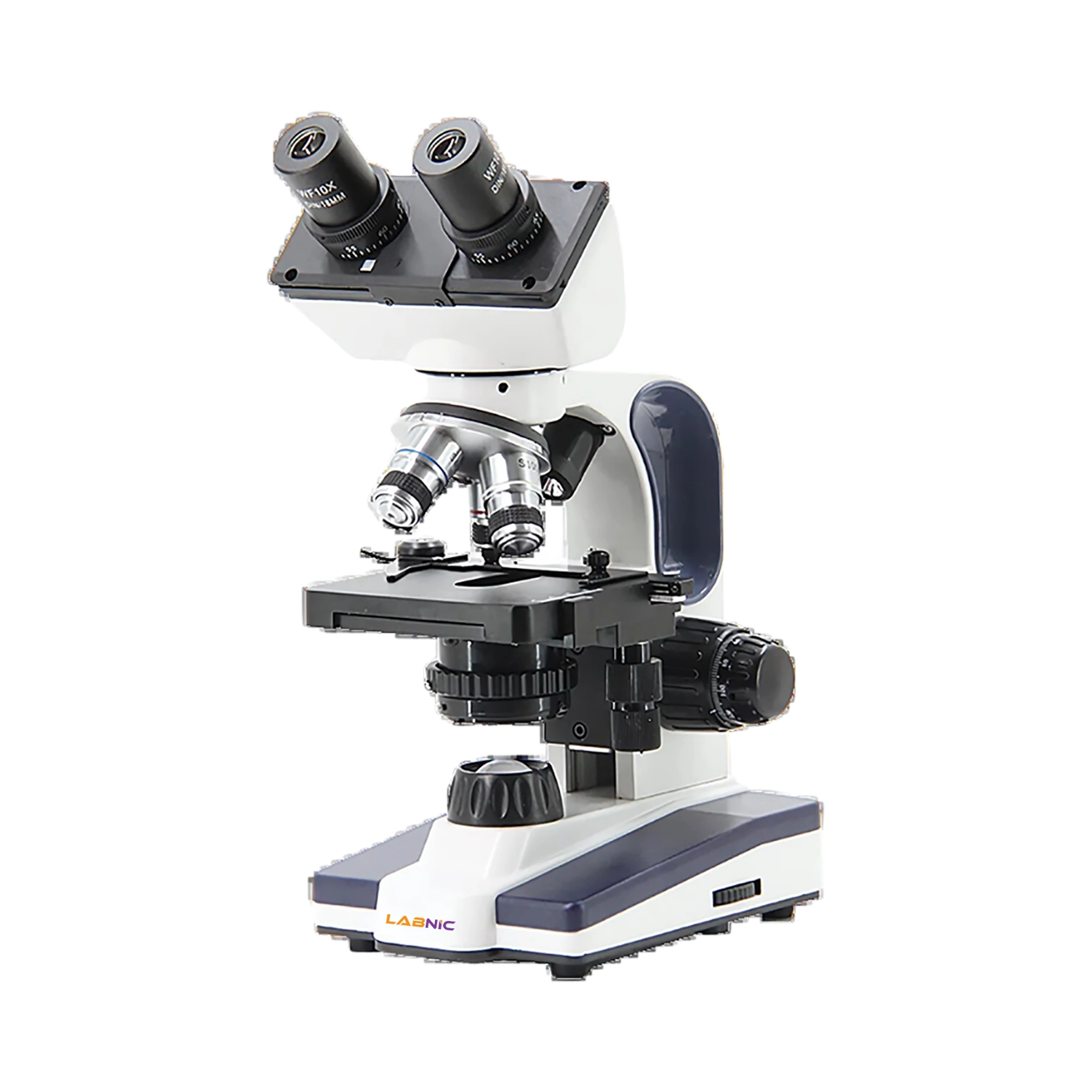

Biological Microscope LBN-BO127 is ergonomically design. It consists of view head with a dual-view inclination of 45°+45°and a quadruple inward nosepiece. It has a coaxial coarse and fine focusing mechanism and a plan achromatic optical system. It features an Abbe condenser with a filter holder, an iris diaphragm with an aperture of 1.25 and a halogen lamp as a light source.
| Optical Type | Achromatic |
| Standard Magnification | 40 ×-1000 × |
| Head Type | Dual-View |
| Head Inclination | 45 degree + 45 degree |
| Head Rotation | Head Rotate 360 degree |
| Eyepiece Diameter | 23.2mm |
| Eyepiece | WF10× /18mm, 2 pcs |
| Nosepiece | 4 holes, inward |
| Objective | Achromatic 4×, 10×, 40× (s), 100× (s, o) |
| Working Stage Type | 2 Layer Mechanical |
| Working Stage Size | 125 × 130mm |
| Working Moving Stage | 60 × 30 mm |
| Focusing Type | Coarse Coaxial & Fine, 20mm |
| Condenser | 1.25 N. A |
| Condenser Type | f2-f30mm Iris Diaphragm, f32mm Filter Holder |
| Light Source | Halogen, brightness adjustable |
| Power Supply | AC110V-220V |
| Transmit Light | 6V/20W |
| Weight | 18 Kg |
| Dimensions (L × D × H) | 690 × 450 × 470 mm |
Biological Microscope is used for research analysis of samples, tissue culture, cell findings, at laboratories, medical institutes, health clinics, scientific research institutes, etc.
Biological Microscope is used for research analysis of samples, tissue culture, cell findings, at laboratories, medical institutes, health clinics, scientific research institutes, etc.
Most Frequently Asked Questions
1. What is a Biological Microscope used for?
Ans. A biological microscope is used for observing biological specimens such as cells, tissues, and microorganisms. It is widely used in scientific research, medical diagnostics, and educational labs.
2. What kind of magnification do these microscopes provide?
Ans. They offer high magnification using optical lenses, which ensures clear and detailed visualization of microscopic samples.
3. Do these microscopes have adjustable lighting?
Ans. Yes, they come with adjustable illumination to provide consistent lighting, enhancing visibility during observation of transparent or low-contrast samples.
4. Is it easy to operate biological microscope?
Ans. Yes, these microscopes are designed for user-friendly operation, making them suitable for both beginners and professionals.
5. What types of specimens can be observed with this microscope?
Ans. You can observe a wide range of specimens including blood cells, bacteria, plant tissues, microorganisms, and slides of organs or tissues for research and diagnostic purposes.
Biological Microscope LBN-BO127 is ergonomically design. It consists of view head with a dual-view inclination of 45°+45°and a quadruple inward nosepiece. It has a coaxial coarse and fine focusing mechanism and a plan achromatic optical system. It features an Abbe condenser with a filter holder, an iris diaphragm with an aperture of 1.25 and a halogen lamp as a light source.
