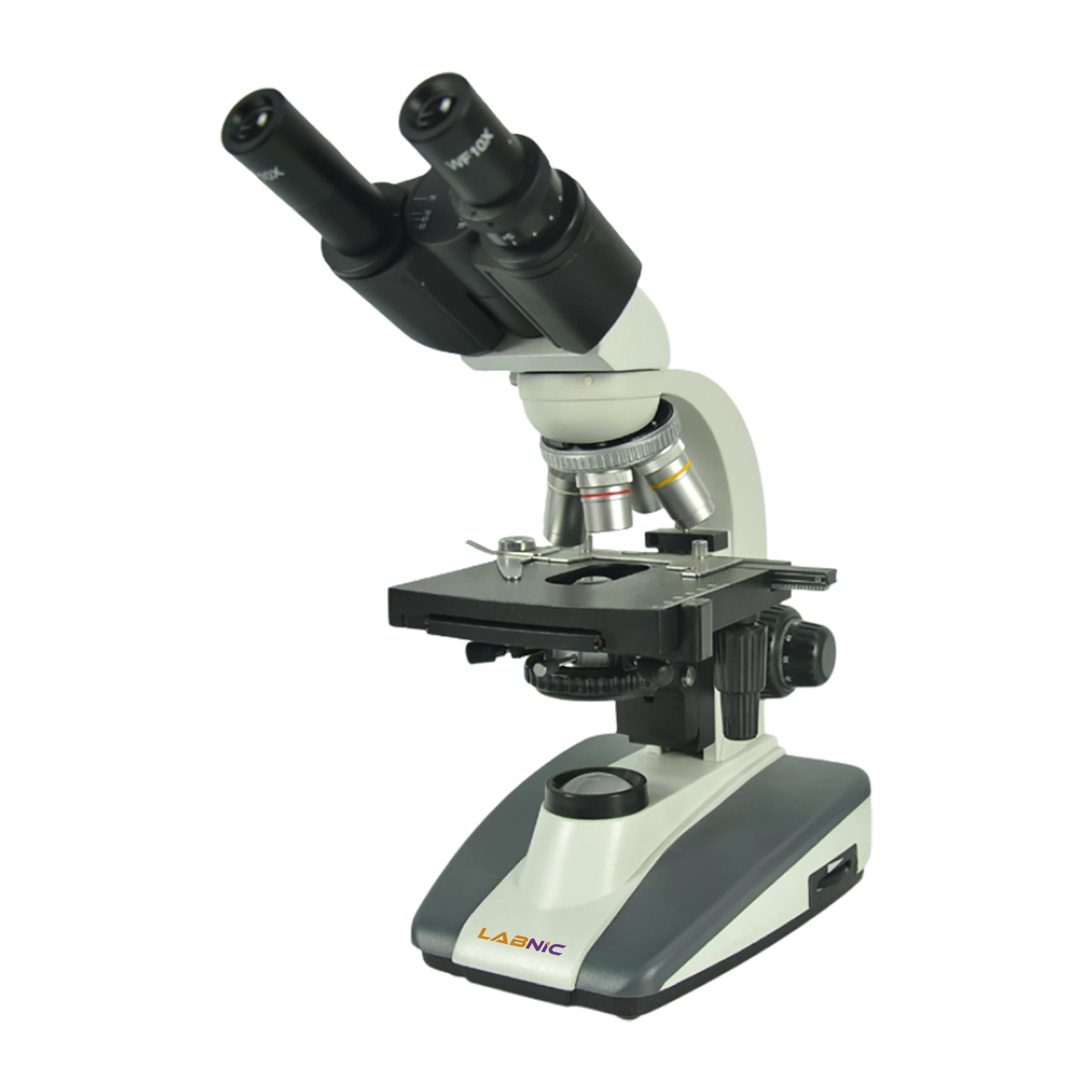

Biological Microscope LBN-BO124 has an ergonomically designed, user-friendly optical system and a bright field observation method. It consists of a halogen lamp illuminator, a mechanical double layer stage, a quadruple reversed angle nosepiece, and a Siedentopf binocular head with 45° of inclined rotation and 360° of rotation. It is used to analyze microsamples at research institutes, laboratories, schools, colleges, etc.
| Optical Type | Achromatic |
| Standard Magnification | 40×-1000× |
| Head Type | Siedentopf Binocular |
| Head Inclination | 45 degree |
| Head Rotation | Head Rotate 360 degree |
| Eyepiece Diameter | 23.2 mm |
| Eyepiece | WF10×/18mm, 2 pcs, right tube adjustable |
| Nosepiece | 4 holes, inward |
| Objective | 4×, 10×, 40×(s), 100×(s, o) |
| Working Stage Type | 2 Layer Mechanical |
| Working Stage Size | 125 × 130 mm |
| Working Moving Stage | 60 × 30 mm |
| Focusing Type | Coarse Coaxial & Fine, 20mm |
| Condenser | 1.25 N. A |
| Condenser Type | ⏀2-⏀30mm Iris Diaphragm, ⏀32mm Filter Holder |
| Light Source | Halogen, brightness adjustable |
| Power Supply | AC110V-220V |
| Transmit Light | 6V/20W |
| Weight | 20Kg |
| Dimensions (L × D × H) | 690 × 450 × 470 mm |
| Light Source (optional) | LED 1W, brightness adjustable |
Biological Microscope is used for microscopic analysis at schools, laboratories, scientific research institutes, medical institutes, health clinics, etc.
Biological Microscope is used for microscopic analysis at schools, laboratories, scientific research institutes, medical institutes, health clinics, etc.
Most Frequently Asked Questions
1. What is a Biological Microscope used for?
Ans. A biological microscope is used for observing biological specimens such as cells, tissues, and microorganisms. It is widely used in scientific research, medical diagnostics, and educational labs.
2. What kind of magnification do these microscopes provide?
Ans. They offer high magnification using optical lenses, which ensures clear and detailed visualization of microscopic samples.
3. Do these microscopes have adjustable lighting?
Ans. Yes, they come with adjustable illumination to provide consistent lighting, enhancing visibility during observation of transparent or low-contrast samples.
4. Is it easy to operate biological microscope?
Ans. Yes, these microscopes are designed for user-friendly operation, making them suitable for both beginners and professionals.
5. What types of specimens can be observed with this microscope?
Ans. You can observe a wide range of specimens including blood cells, bacteria, plant tissues, microorganisms, and slides of organs or tissues for research and diagnostic purposes.
Biological Microscope LBN-BO124 has an ergonomically designed, user-friendly optical system and a bright field observation method. It consists of a halogen lamp illuminator, a mechanical double layer stage, a quadruple reversed angle nosepiece, and a Siedentopf binocular head with 45° of inclined rotation and 360° of rotation. It is used to analyze microsamples at research institutes, laboratories, schools, colleges, etc.
