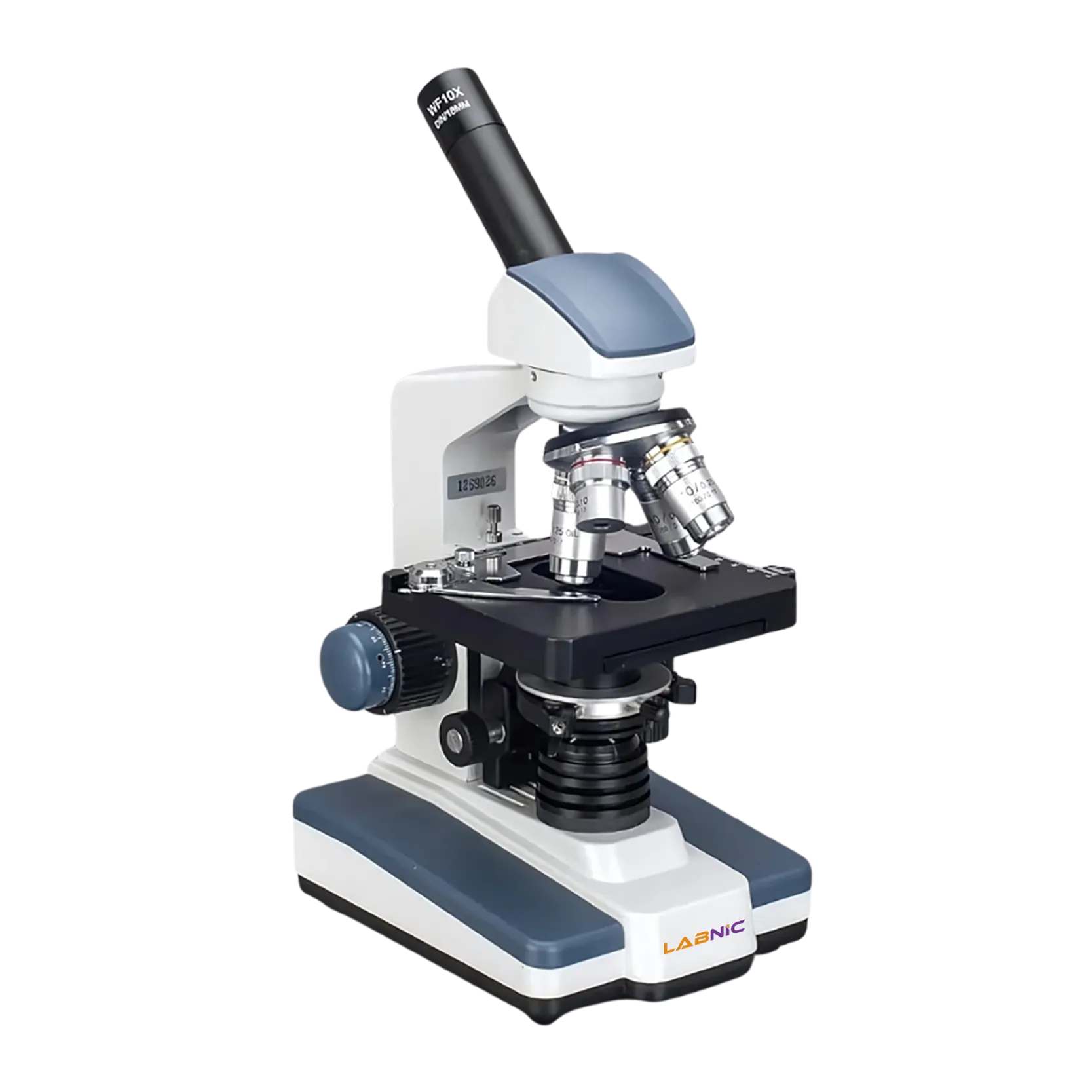

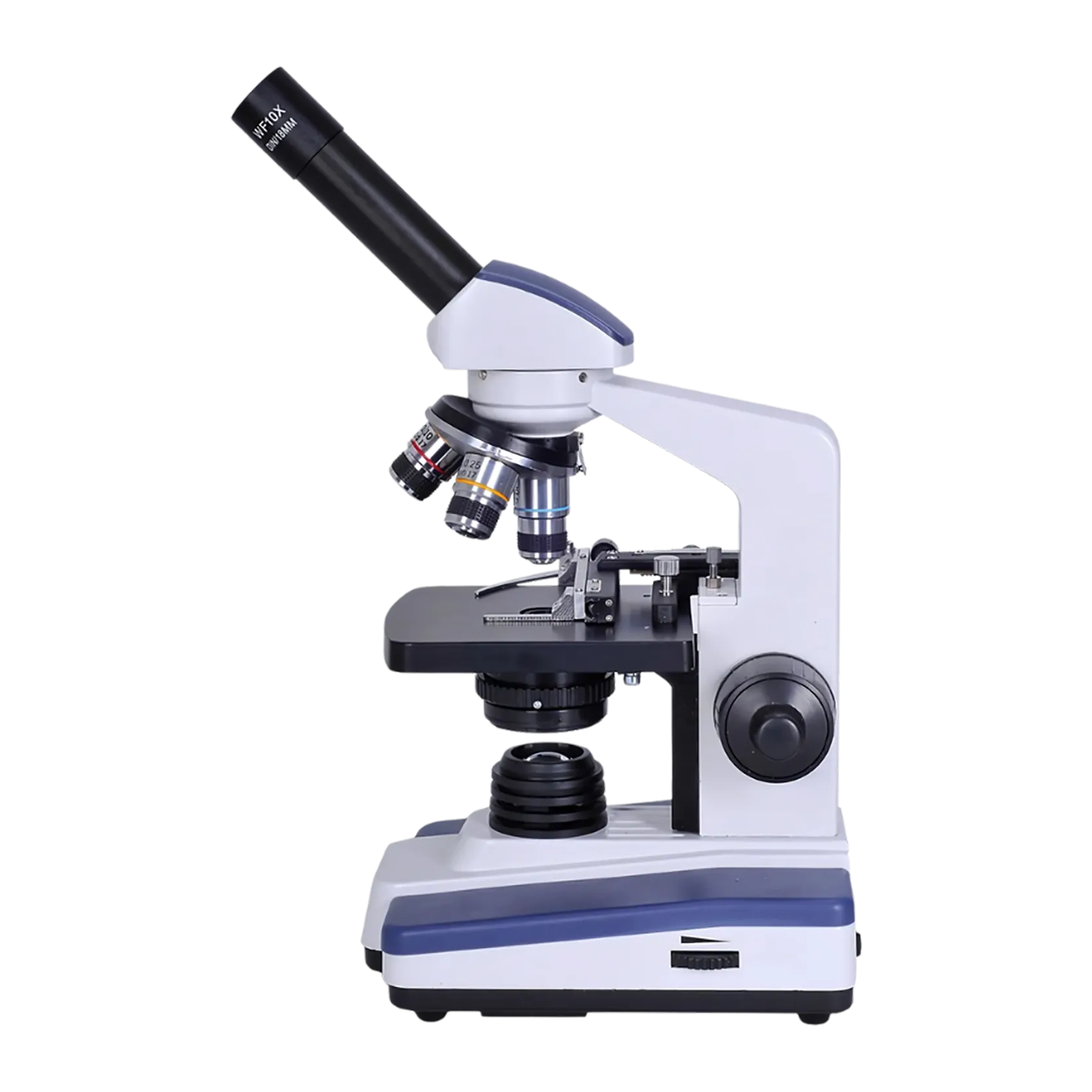

Biological Microscope LBN-BO134 is secure and simple to operate. It is made up of an achromatic optical system with a 40x–1000x magnification range. It has a monocular head design with a 360° rotatable and 30° inclined axis. It consists of an outward quadruple nosepiece and a WF10X eyepiece with a pointer. A 1.25 N.A condenser and an iris diaphragm are also included. LED lighting is utilized as a source of light.
| Optical Type | Achromatic |
| Standard Magnification | 40X-1000X |
| Head Type | Monocular |
| Head Inclination | 30 degree |
| Head Rotation | Head Rotate 360 degree |
| Eyepiece | WF10× with pointer |
| Nosepiece | 4 holes, outward |
| Objective | Achromatic 4´, 10´, 40´ (s), 100´ (s, o) |
| Working Stage Type | 1 layer +sliding ruler |
| Working Stage Size | 100 × 90mm |
| Focusing Type | Coaxial Coarse & Fine |
| Condenser N.A | 1.25 |
| Condenser Features | Iris Diaphragm |
| Light Source | LED, brightness adjustable |
| Power Supply | AC110V-240V |
| Transmit Light | 6V/20W |
| Weight | 16Kg/14Kg |
| Dimensions (L × D × H) | 480 × 320 × 450 mm |
It is safe, reliable, and easy to use
It consists of an achromatic optical system
It features monocular head type with 30 inclination
Outward quadruple nosepiece
Iris Diaphragm condenser with 1.25 aperture
Coaxial coarse and fine focusing type
Biological Microscope is used for research analysis of samples, tissue analysis, cell identification at laboratories, biological research institutes, medical institutes, health clinics, etc.
