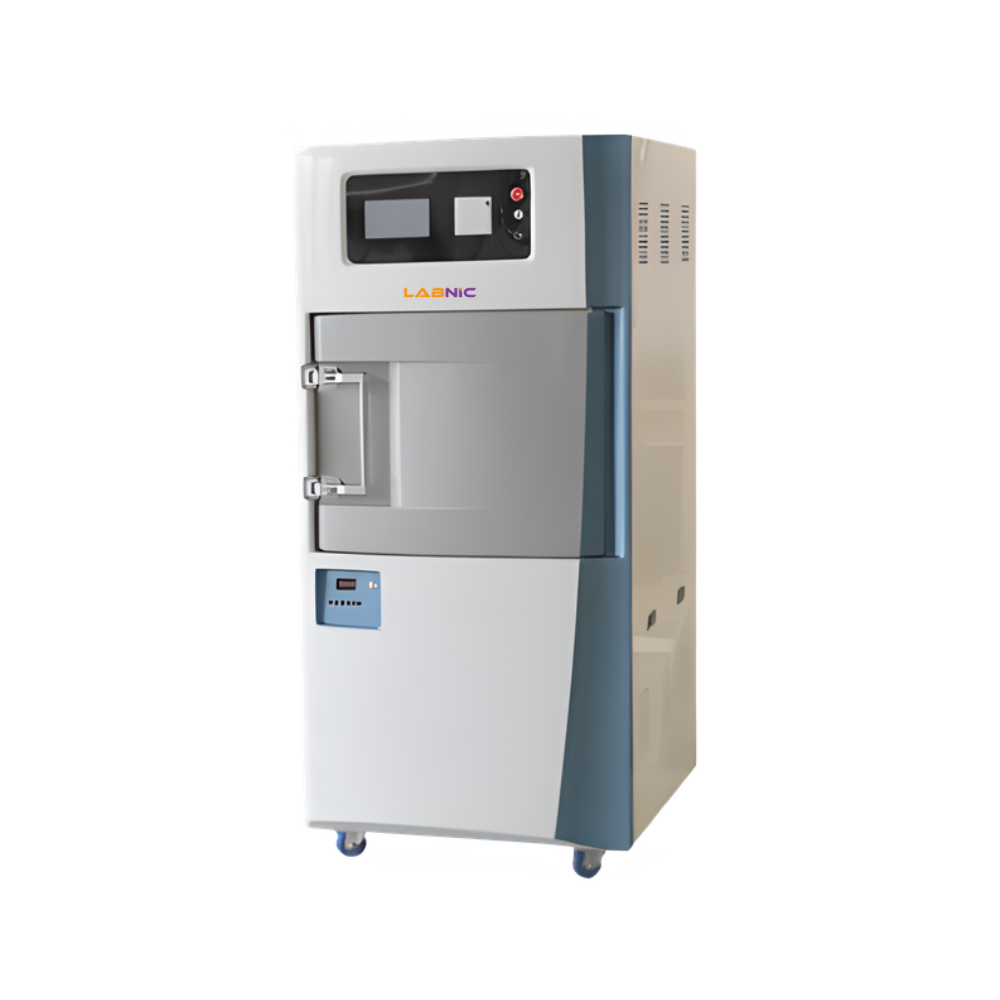

Ethylene Oxide Sterilizer LBN-EO110 is a vertical manual-door sterilizer designed for precise and safe EO gas sterilization. It uses electric heating with stable temperature and human control to ensure effective sterilization for sensitive materials. Equipped with a PLC control system. Equipped with a PLC control system and a 7-inch LED touchscreen, offers a clear display, easy operation, and real-time monitoring. Our Ethylene Oxide Sterilizer is Ideal for hospitals, laboratories, and pharmaceutical industries requiring sterilization of heat- and moisture-sensitive instruments.
| Volume | 120 L |
| Sterilization Method | Pure Ethylene Oxide (EO) Gas |
| Sterilization Temperature | 50℃ ± 5℃ |
| Humidity Range | 45 to 75 % RH |
| Working Pressure | – 60 kPa |
| Sterilization Time | 0 to 99 hours (Adjustable) |
| Total Sterilization Cycle | 8 to 12 hours |
| Control System | PLC Fully Automatic |
| Display Type | 7-inch LED Touchscreen |
| Heating Method | Electric Heating |
| Gas Injection Method | Built-in EO Tank, Automatic Injection |
| Vacuum System | Oil-Free Vacuum Pump (–60 kPa in 15 min) |
| Air Exchange | Automatic Replacement, 15 min / Cycle × 5 Cycles |
| Safety Features | Over-temperature, Residual Gas Processing, Power-failure Recovery |
| Data Recording | Built-in Printer for Process Records |
| Chamber Material | 5052 Aluminum |
| Outer Casing Material | Coated ABS |
| Air Inlet System | Sterile Filter for Bacteria-free Air |
| Integrated Function | Biological Incubator for EO Validation |
| Power Supply | 220 V / 50 Hz |
| Power Consumption | 2.8 kW / 16 A |
| Chamber Dimensions | 600 × 400 × 500 mm |
| Overall Dimensions | 780 × 620 × 1150 mm |
Our Ethylene Oxide Sterilizer LBN-EO110 is Ideal for hospitals, medical device manufacturers, pharmaceutical labs, and research institutions for sterilizing heat- and moisture-sensitive materials, surgical tools, and disposable medical products.
Our Ethylene Oxide Sterilizer LBN-EO110 is Ideal for hospitals, medical device manufacturers, pharmaceutical labs, and research institutions for sterilizing heat- and moisture-sensitive materials, surgical tools, and disposable medical products.
Most Frequently Asked Questions
1. What are Ethylene Oxide Sterilizers used for?
Ans. Ethylene Oxide Sterilizers are used for sterilizing heat-sensitive and complex medical materials that require low-temperature disinfection.
2. How do Ethylene Oxide Sterilizers achieve effective sterilization?
Ans. Ethylene Oxide Sterilizers use ethylene oxide gas to ensure thorough microbial removal from instruments and materials.
3. What features support energy efficiency in Ethylene Oxide Sterilizers?
Ans. Ethylene Oxide Sterilizers incorporate advanced insulation systems that reduce energy loss and improve operational efficiency.
4. How do Ethylene Oxide Sterilizers enhance the sterilization process?
Ans. Ethylene Oxide Sterilizers include automated sterilization cycles and reliable aeration systems to support complete decontamination.
5. What types of items can be sterilized using Ethylene Oxide Sterilizers?
Ans. Ethylene Oxide Sterilizers are suitable for sterilizing implants, medical instruments, and other sensitive devices.
6. Where are Ethylene Oxide Sterilizers commonly used?
Ans. Ethylene Oxide Sterilizers are commonly used in hospitals, laboratories, and industrial sterilization facilities.
