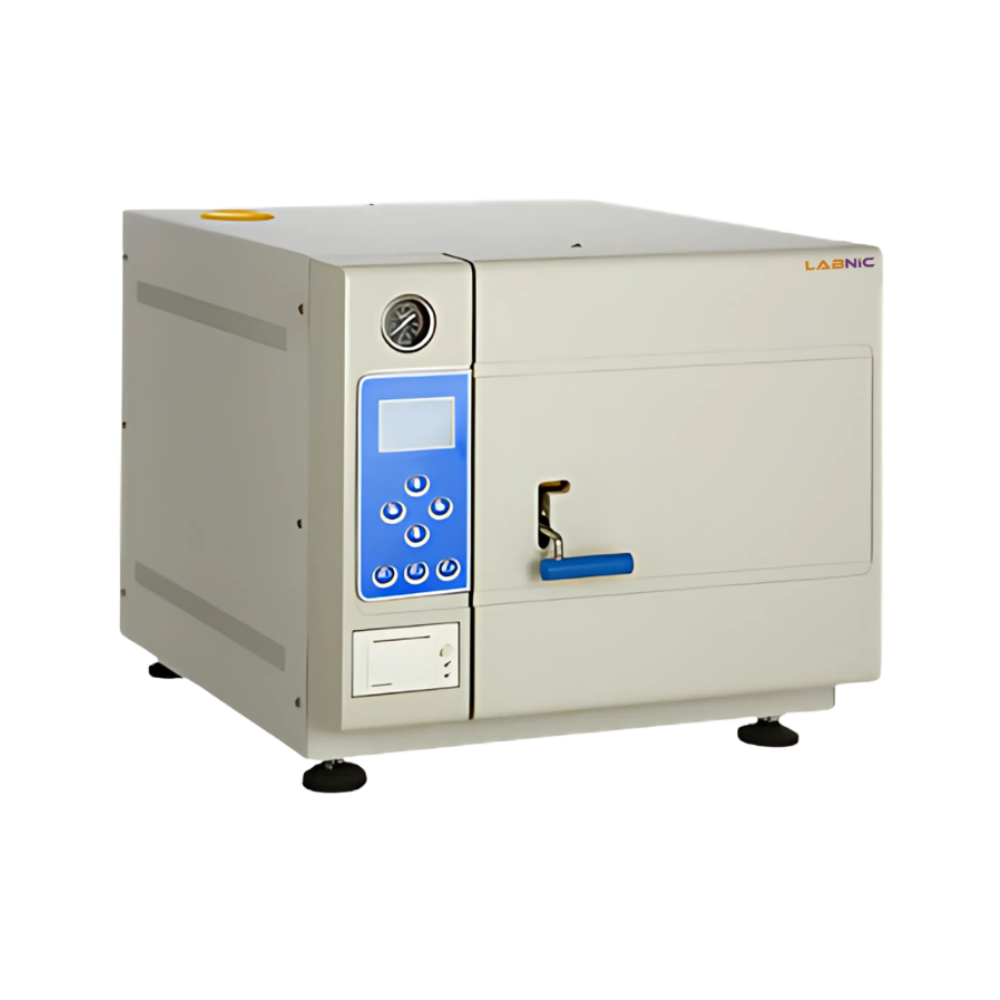

Class B Tabletop Autoclave LBN-TA156 features a 50-liter chamber capacity, providing efficient sterilization at 134°C. It utilizes advanced pulse vacuum steam technology to remove cold air, ensuring steam penetration and achieving effective sterilization. Equipped with a reliable vacuum drying system and jacket heating, it delivers dry and ready-to-use instruments after each cycle. Integrated with safety functions such as automatic over-pressure protection for reliable operation. Our Class B Tabletop Autoclave is widely used in hospitals, pharmaceuticals, microbiology labs, biotechnology, dental, and veterinary practices.
| Chamber Volume | 50 Liters (340×550 mm) |
|---|---|
| Max Working Temperature | 134℃ ±1℃ |
| Max Working Pressure | 0.22 MPa |
| Sterilization Temperature Range | 55℃ to 134℃ |
| Timer Range | 1 to 99 minutes |
| Drying Time Range | 1 to 99 minutes |
| Vacuum Limit | –0.08 MPa |
| Temperature Uniformity | ≤2℃ |
| Power Supply | AC220V / 50Hz |
| Dimensions (L×W×H) | 770 × 600 × 540 mm |
| Transport Dimensions | 880 × 730 × 700 mm |
| Net Weight | 93 kg |
| Gross Weight | 112 kg |
<span style="background-color:#ffffff;color:#0d0d0d;">Fully Automatic Sterilization Process</span>
<span style="background-color:#ffffff;color:#0d0d0d;">Triple Pulse Vacuum Cycles</span>
<span style="background-color:#ffffff;color:#0d0d0d;">Integrated Inner Data Printer</span>
<span style="background-color:#ffffff;color:#0d0d0d;">Bowie-Dick Test Function</span>
<span style="background-color:#ffffff;color:#0d0d0d;">Self-Diagnosis & Error Alerts</span>
<span style="background-color:#ffffff;color:#0d0d0d;">Safety Door Locking System</span>
<span style="background-color:#ffffff;color:#0d0d0d;">Low-Water Auto Cut-Off</span>
<span style="background-color:#ffffff;color:#0d0d0d;">Overcurrent Circuit Protection</span>
Our Class B Tabletop Autoclave is ideal for hospitals, pharmaceuticals, laboratories, biotechnology, dental, and veterinary practices.
