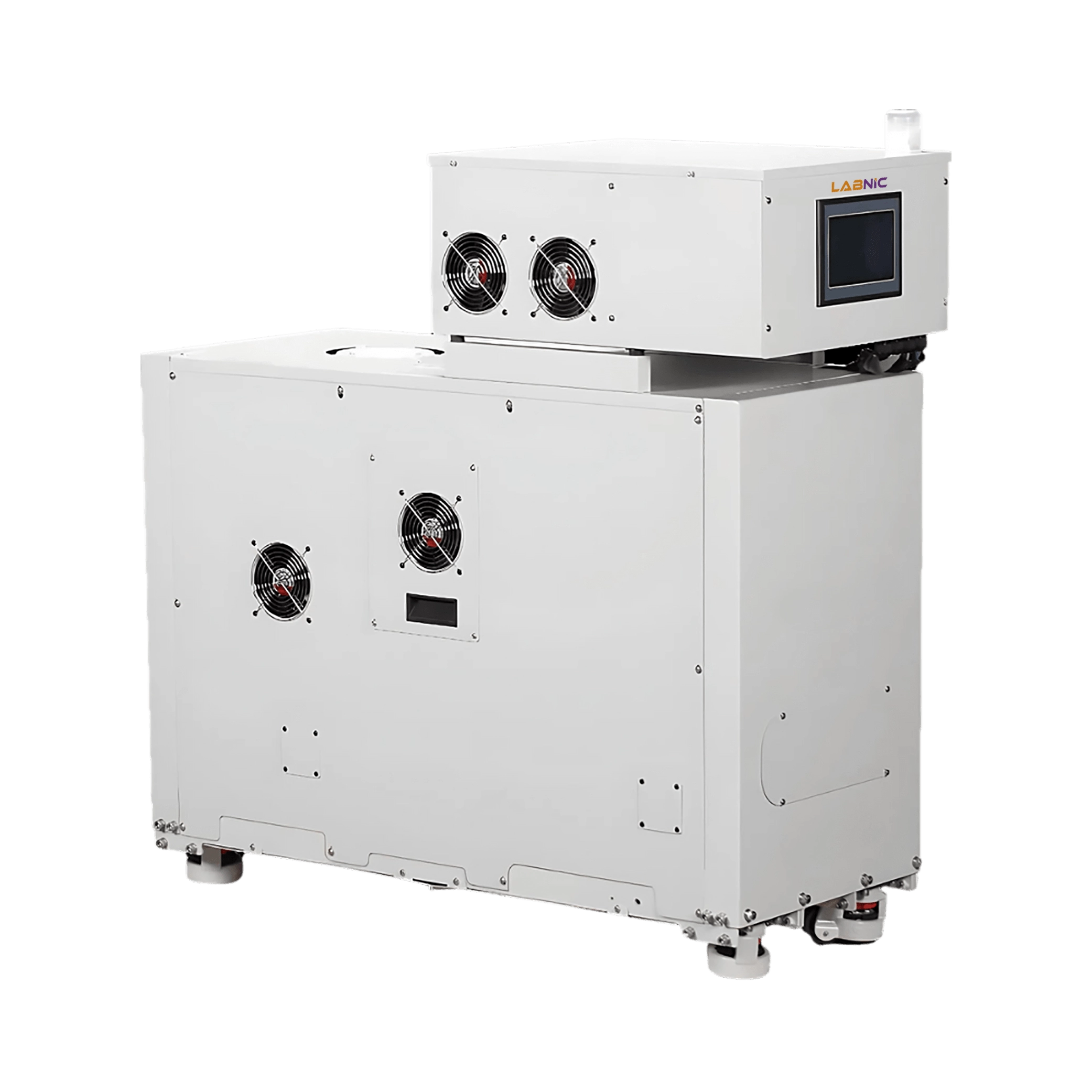

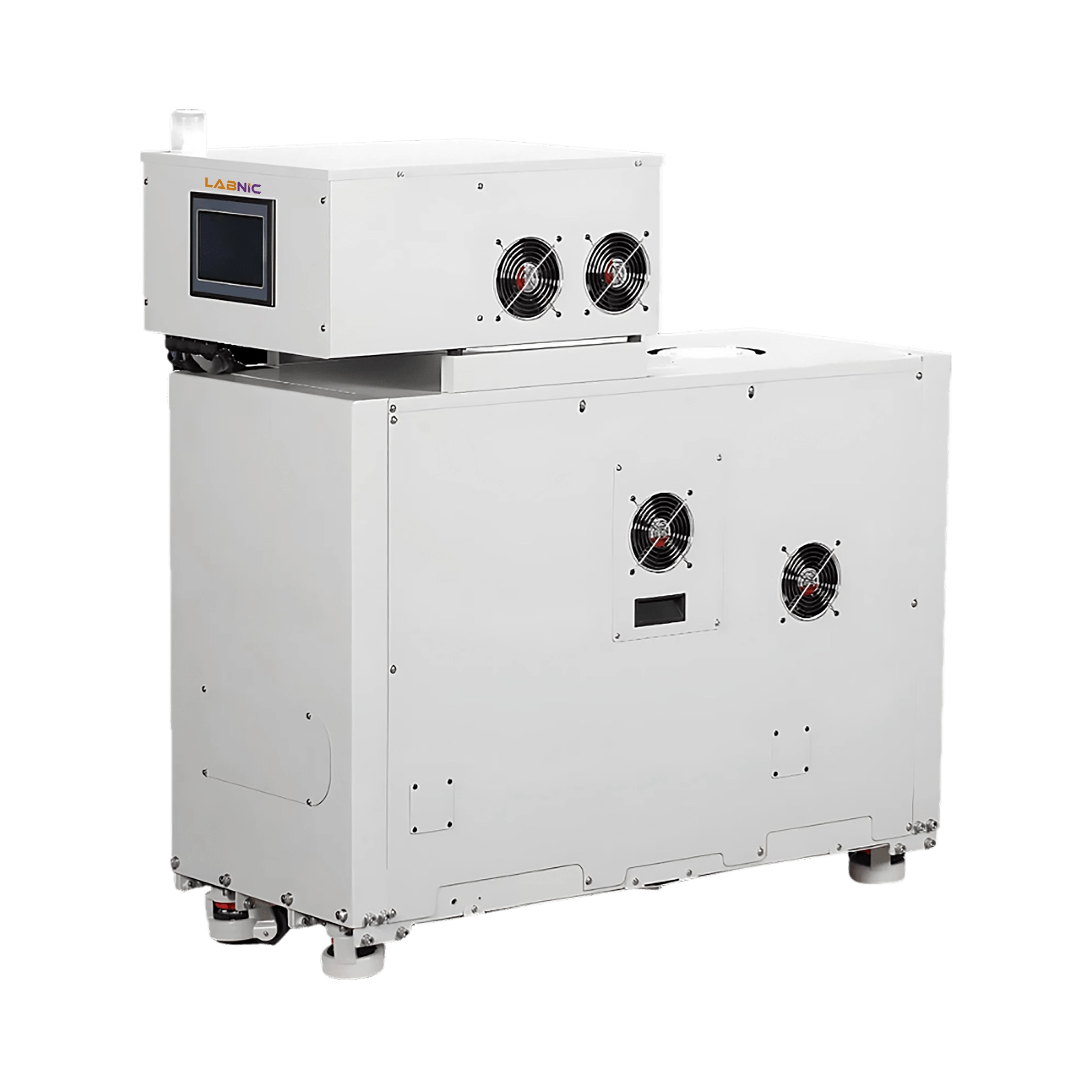

Vacuum System Pump LBN-VS153 offers a reliable pumping speed of 2200 m3/h for consistent performance. Equipped with digital control system for precise operation and real-time monitoring. Integrated with automated cleaning function during shut down to ensure residue removal. Designed with oil-repellent structure for minimal contamination. Our Vacuum System Pump achieves low pressures, making it ideal for demanding applications.
| Pumping Speed | 2200 m3/h |
| Ultimate Pressure | ≤ 1 × 10-1 Pa |
| Outlet Pressure | 1.4 × 10-1 Pa |
| Motor Power | 5.5 + 7.5 kW |
| Ambient Temperature | 5 to 40° C |
| Noise | ≤ 72 or ≤ 75 dB |
| Cooling Water Flow | ≥ 6 L/min |
| Cooling Water Temperature | 5 to 30° C |
| Purging Flow | 12 to 88 L/min |
| Inlet | ISO160 |
| Outlet | KF40 |
| Power Supply | 380 to 400 V |
| Dimension | 160 × 80 × 140 cm |
| Net Weight | 925 kg |
| Gross Weight | 980 kg |
Vacuum System Pump LBN-VS153 is widely used in pharmaceutical processing, semiconductor manufacturing, chemical distillation, industrial drying, food packaging, vacuum metallurgy, aerospace testing, and oil refining.
Vacuum System Pump LBN-VS153 is widely used in pharmaceutical processing, semiconductor manufacturing, chemical distillation, industrial drying, food packaging, vacuum metallurgy, aerospace testing, and oil refining.
Vacuum System Pump LBN-VS153 offers a reliable pumping speed of 2200 m3/h for consistent performance. Equipped with digital control system for precise operation and real-time monitoring. Integrated with automated cleaning function during shut down to ensure residue removal. Designed with oil-repellent structure for minimal contamination. Our Vacuum System Pump achieves low pressures, making it ideal for demanding applications.
