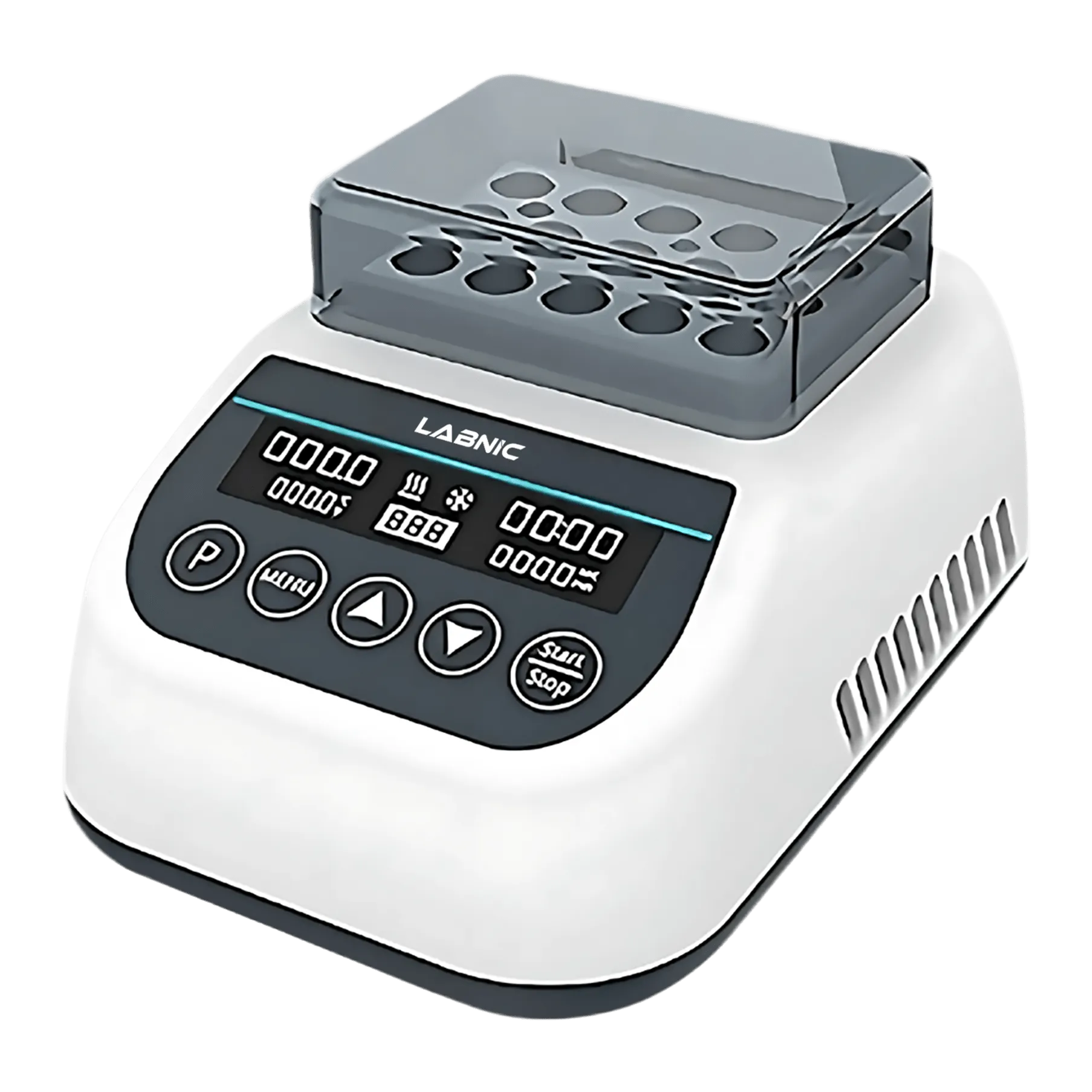

Dry Bath LBN-DB156 comes with a humanized design with multiple adapter modules. Equipped with an LCD display to view working modes of heating and cooling temperature integration. Maximum time ranges from 1s to 23h 59min. Different modules can be replaced according to requirements. Speed can be controlled with a speed button.
| Temperature Range | Below room temperature - 15℃ to 100℃ |
| Temperature Stability | ± 0.5℃ |
| Display Precision | 0.1 ℃ |
| Heating up time | ≤ 12 min (25℃ to 100℃) |
| Cooling Time | 20 to 25 min (15-0℃) |
| Multi Program Running | Yes(P1-P9) |
| Timing Range | 1s to 23 h 59 min |
| Power | 60 W |
| Power Supply | AC100-240 V/1.5 A turn to DC24 V/2.5 A |
| Module Dimensions | 71×47×32 mm |
| Product Size | 160×115×96 mm |
Real time temperature display
Set temperature value
Program setting and multi-program running
Presence of start or stop button
Presence of heating mode and cooling mode
Micro-computer control system
Multiple programs running programs
It is widely applied in the field of educational sectors, industrial purposes and clinical laboratories
Download Catalog for Dry Bath LBN-DB156
Download
No of Blocks : 1
Heating Temperature Range : RT +5°C to 150°C
Ambient Temperature : 5° - 40°C
Relative Humidity : 0.8
No of Blocks : 2
Heating Temperature Range : RT +5°C to 150°C
Ambient Temperature : 5° - 40°C
Relative Humidity : 0.8
No of Blocks : 4
Heating Temperature Range : RT +5°C to 150°C
Ambient Temperature : 5° - 40°C
Relative Humidity : 0.8
Temperature Range : RT+5℃ TO 100℃
Time for temperature increasing : ≤25 minutes 20℃ to 100℃
Temperature Accuracy : ≤±0.5°C
Uniformity of the block temperature : ≤±0.5℃
Temperature range : RT+5 to 100℃
Time for temperature increasing : ≤25 minutes (from 20℃ to100℃ )
Temperature accuracy : ≤±0.5℃
Display resolution : 0.1℃
Temperature Control Range : Rt +5° to 100°C
Temperature Precision : ± 0.5°
Timer : 0 – 99Hr 59min
Heating Time : ≤ 15 min
Temperature Range : RT+5 - 100℃
Temperature Setting Range : 25℃ – 100℃
Maximum Heating Rate : 6.5℃/min
Heating Time : ≤ 20min
Temperature Range : RT+5 - 100℃
Temperature Setting Range : 25℃ – 100℃
Maximum Heating Rate : 8℃/min
Maximum Cooling Rate : 3℃/min
Operating Temperature : Room temperature +5 to 60 ℃
Temperature Control Precision : ±0.1 ℃
Rotation Frequency : 20 to 300 rpm
Amplitude : Φ26 mm
Operating Temperature : Room temperature +5 to 60 ℃
Temperature Control Precision : ±0.1 ℃
Rotation Frequency : 20 to 300 rpm
Amplitude : Φ26 mm
Operating Temperature : 4 to 60 ℃ (Refrigeration type)
Temperature Control Precision : ±0.1 ℃
Rotation Frequency : 20 to 300 rpm
Amplitude : Φ26 mm
Chamber Volume : 1075 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Chamber Volume : 275 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Voltage : 220V/50Hz
Temperature Range : 0-65℃
Temperature Resolution Ratio : 0.1℃
Temperature Motion : ±0.5℃
Chamber Volume : 475 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Electrical Requirement : 220V 50Hz
Temperature Range : CL:-10℃ to 65°C
Display Resolution : 0.1°C
Temperature stability : High 0.5℃, low1℃
Temperature Range : 4 to 60 ℃ (Cooling)
Capacity : 155 L
Shaking Speed : 20 to 300 rpm
Time Range : 1 to 9999 minutes
Temperature Range : RT+5 to 60 °C
Capacity : 155 L
Shaking Speed : 20 to 300 rpm
Time Range : 1 to 9999 minutes
Temperature Range : RT+5 to 60 °C
Capacity : 265 L
Shaking Speed : 20 to 300 rpm
Time Range : 1 to 9999 minutes
Temperature Range : 4 to 60 ℃ (Cooling)
Capacity : 265 L
Shaking Speed : 20 to 300 rpm
Time Range : 1 to 9999 minutes
Dimension : 540×605×960 mm
Voltage : 220 V 50 Hz
Storage area and layers (W×D×H) : 390×300×230 5 layers
Storage bags : 5 to 10 bags
Temperature Range : 20-24°C
Capacity : 5 L
Blood Bags : 10
Refrigerant : R134a
Temperature Range : 22 ± 2 °C
Temperature Accuracy : 0.1 °C
Temperature Control : Microprocessor controller
Oscillation : 60 ± 5 cycles/ minute
Temperature Range : 20-24°C
Capacity : 10 L
Blood Bags : 20
Refrigerant : R134a
Temperature Range : 22 ± 2 °C
Temperature Accuracy : 0.1 °C
Temperature Control : Microprocessor controller
Oscillation : 60 ± 5 cycles/ minute
Capacity : 160 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 50 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 20 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 270 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 80 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
