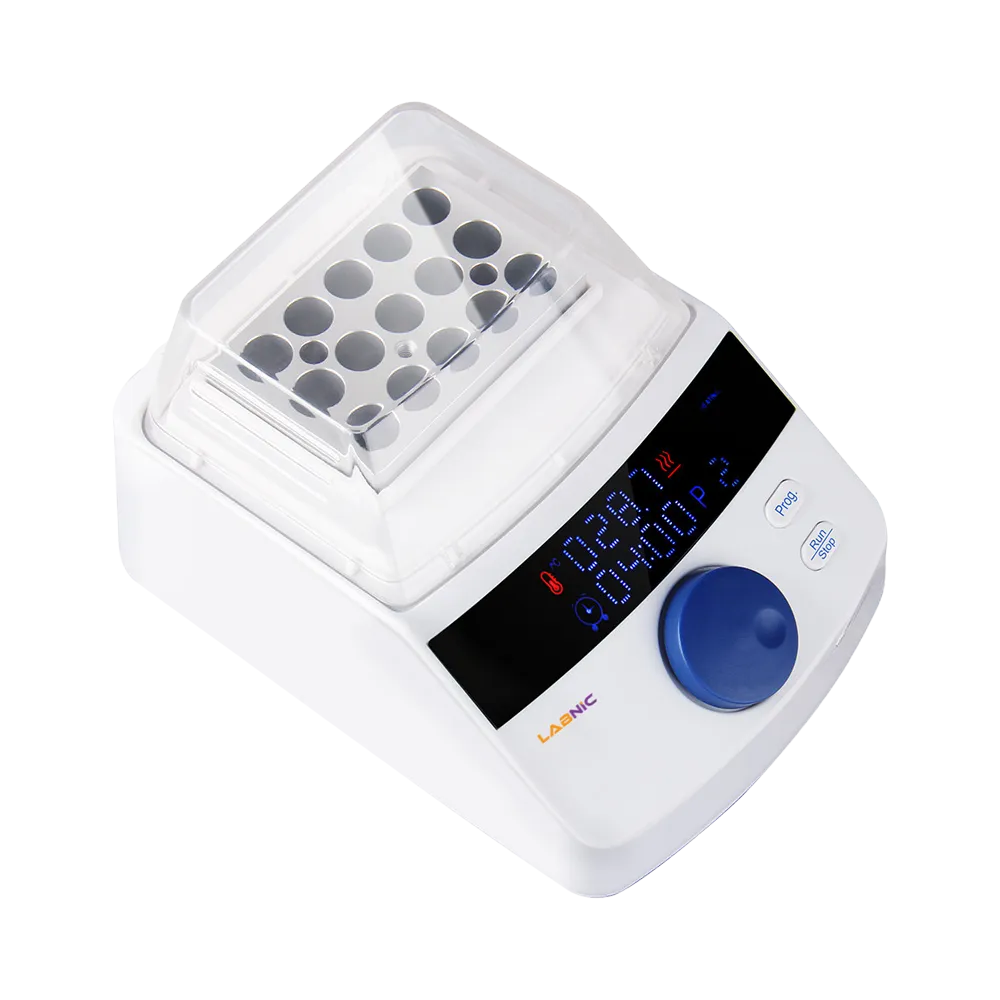

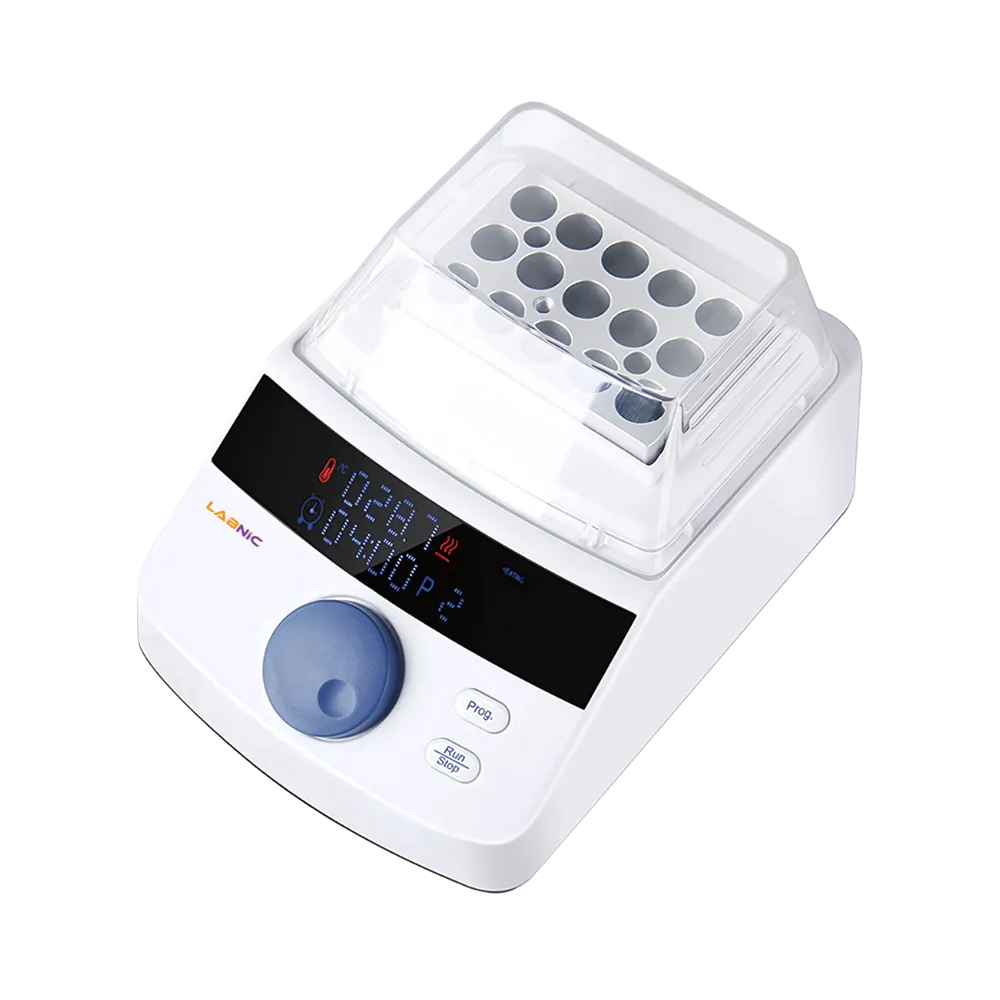

Mini Dry Bath Incubator LBN-DI141 is designed to maximize bench top space and enhance research productivity with precise temperature control and accuracy. The unit operates at a 100°C temperature range with a precision of 0.5°C. Equipped with 3D wheel for time and temperature adjustment with programmable operation mode which can store up to 5 programs. It is a microprocessor controlled heating block with intuitive LED display aids in easy reading of parameters.
| Temperature Control Range | Rt +5° to 100°C |
| Temperature Precision | ± 0.5° |
| Timer | 0 – 99Hr 59min |
| Heating Time | ≤ 15 min |
| Display Accuracy | ± 0.1 |
| Power Supply | 12 V |
| Dimension | 164 × 116 × 98 mm |
| Net Weight | 0.9 Kg |
LED display for easy reading
High temperature precision up to ±5°C
Programmable operation mode stores up to 5 program setups
3D digital wheel adjustment of temperature and time
Interchangeable aluminum alloy sample blocks, provides durability
Simultaneous display of set/actual parameters
Compact design saves valuable bench space
Microprocessor control with digital temperature
Easy set up and operation
Over heat protection
Mini dry bath incubator is used for qualitative and quantitative procedures in clinical laboratories, research institutes, biological labs for culture activation, enzyme reaction, coagulation studies, polymerase chain reactions etc.
