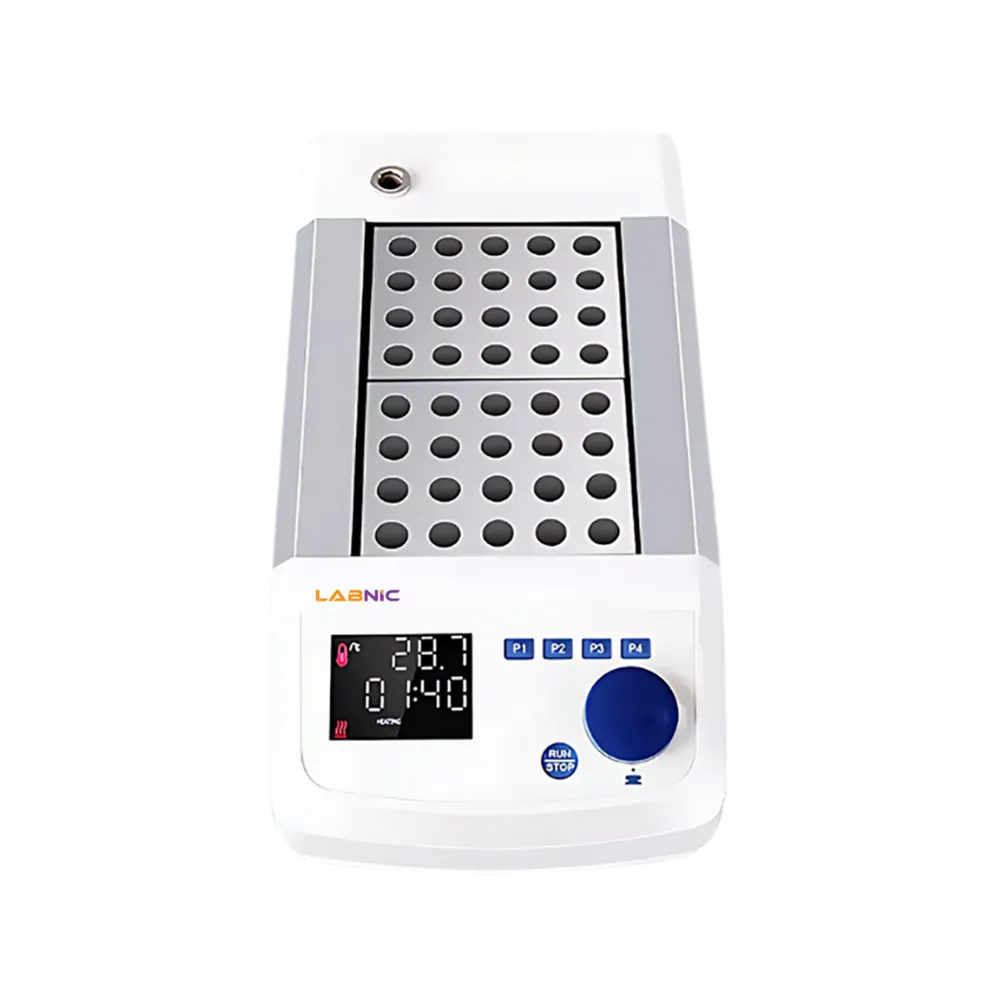

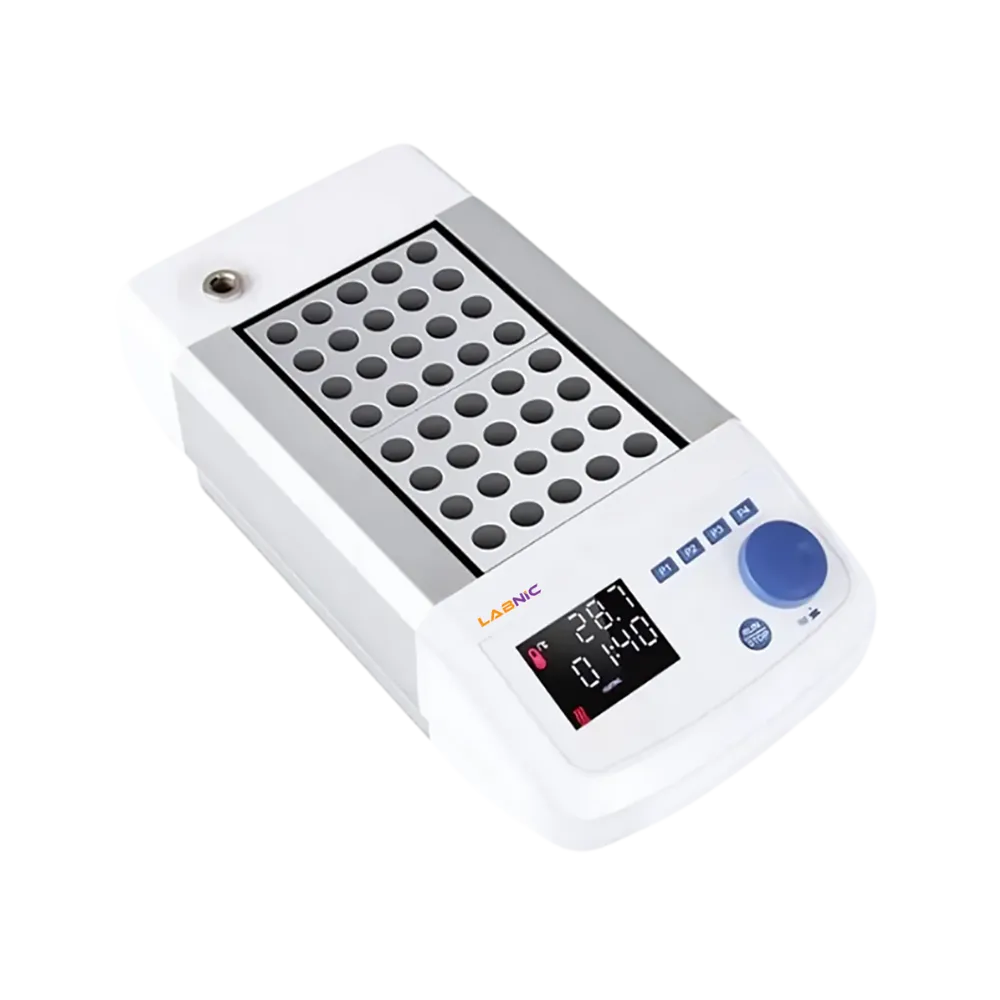

Dry Bath Incubator LBN-DI152 is a microprocessor controlled device with highly precise temperature control up to 150°C and a timer. Accommodates two aluminum alloy blocks of 96 × 152 mm dimension, designed to facilitate easy placement and extraction of tubes. Equipped with a digital wheel for accurate time and temperature adjustment along with the parameters being displayed on LED screen.
| No of Blocks | 2 |
| Heating Temperature Range | RT +5°C to 150°C |
| Ambient Temperature | 5° - 40°C |
| Relative Humidity | 0.8 |
| Temperature Uniformity <60°C | 0.5 |
| Temperature Uniformity >60°C | 0.5 |
| Temperature Stability Within The Blocks <60°C | ±0.5° |
| Temperature Stability Within The Blocks >60°C | ±1 |
| Plate Dimension | 96 × 152 mm |
| Timer | 1 min – 99Hr 59min |
| Display | LED |
| Display Resolution | 0.1 |
| Plate Material | Aluminum alloy |
| Power Input | 250 W |
| Heat Output | 250 W |
| Voltage | 200 – 240 / 115 V |
| Frequency | 50/60 Hz |
| Dimension (W × H × D) | 152 × 86 × 300 mm |
| Weight | 2.5 Kg |
Digital controls and display of time and temperature
Use of timer allows the user to accurately monitor heating time
Wide range of interchangeable aluminum alloy heat blocks
Temperature deviation adjustment
3D digital wheel adjustment of temperature and time
High temperature precision up to ±5°C
Easy set up and operation
Over heat protection
Auto calibration with PT1000 temperature sensor
Dry Bath Incubator is used for qualitative and quantitative procedures in clinical laboratories, research institutes, biological labs for culture activation, enzyme reaction, coagulation studies, polymerase chain reactions etc.
Download Catalog for Dry Bath Incubator LBN-DI152
Download
No of Blocks : 1
Heating Temperature Range : RT +5°C to 150°C
Ambient Temperature : 5° - 40°C
Relative Humidity : 0.8
No of Blocks : 4
Heating Temperature Range : RT +5°C to 150°C
Ambient Temperature : 5° - 40°C
Relative Humidity : 0.8
Temperature Range : RT+5℃ TO 100℃
Time for temperature increasing : ≤25 minutes 20℃ to 100℃
Temperature Accuracy : ≤±0.5°C
Uniformity of the block temperature : ≤±0.5℃
Temperature range : RT+5 to 100℃
Time for temperature increasing : ≤25 minutes (from 20℃ to100℃ )
Temperature accuracy : ≤±0.5℃
Display resolution : 0.1℃
Temperature Range : Below room temperature - 15℃ to 100℃
Temperature Stability : ± 0.5℃
Display Precision : 0.1 ℃
Heating up time : ≤ 12 min (25℃ to 100℃)
Temperature Control Range : Rt +5° to 100°C
Temperature Precision : ± 0.5°
Timer : 0 – 99Hr 59min
Heating Time : ≤ 15 min
Temperature Range : RT+5 - 100℃
Temperature Setting Range : 25℃ – 100℃
Maximum Heating Rate : 6.5℃/min
Heating Time : ≤ 20min
Temperature Range : RT+5 - 100℃
Temperature Setting Range : 25℃ – 100℃
Maximum Heating Rate : 8℃/min
Maximum Cooling Rate : 3℃/min
Cabin Volume : 248 L
Temperature Control Range : Ambient +5°C ~ 60°C
Working Environment Temperature : 5°C ~ 40°C
Sterilization : 140°C hot air sterilization
Convection Mode : Forced Convection
Capacity : 160 L
Temperature Range : RT+5℃ - 60℃
Temperature Accuracy : 0.1
Convection Mode : Forced Convection
Capacity : 80 L
Temperature Range : RT+5℃ - 55℃
Temperature Accuracy : 0.1
Convection Mode : Forced Convection
Capacity : 80 L
Temperature Range : RT+5℃ - 60℃
Temperature Accuracy : 0.1
Cabin Volume : 185 L
Temperature Control Range : Ambient +5°C ~ 60°C
Working Environment Temperature : 5°C ~ 40°C
Sterilization : 140°C hot air sterilization
Operating Temperature : Room temperature +5 to 60 ℃
Temperature Control Precision : ±0.1 ℃
Rotation Frequency : 20 to 300 rpm
Amplitude : Φ26 mm
Operating Temperature : 4 to 60 ℃ (Refrigeration type)
Temperature Control Precision : ±0.1 ℃
Rotation Frequency : 20 to 300 rpm
Amplitude : Φ26 mm
Operating Temperature : Room temperature +5 to 60 ℃
Temperature Control Precision : ±0.1 ℃
Rotation Frequency : 20 to 300 rpm
Amplitude : Φ26 mm
Temperature Range : 4 to 60 ℃ (Cooling)
Capacity : 155 L
Shaking Speed : 20 to 300 rpm
Time Range : 1 to 9999 minutes
Temperature Range : 4 to 60 ℃ (Cooling)
Capacity : 265 L
Shaking Speed : 20 to 300 rpm
Time Range : 1 to 9999 minutes
Temperature Range : RT+5 to 60 °C
Capacity : 265 L
Shaking Speed : 20 to 300 rpm
Time Range : 1 to 9999 minutes
Temperature Range : RT+5 to 60 °C
Capacity : 155 L
Shaking Speed : 20 to 300 rpm
Time Range : 1 to 9999 minutes
Temperature Range : RT+5 to 60 °C
Capacity : 582 L
Shaking Speed : 40 to 300 rpm
Temperature Accuracy : ± 0.1 °C
Temperature Range : RT+5 to 60 °C
Capacity : 170 L
Shaking Speed : 40 to 300 rpm
Temperature Accuracy : ± 0.1 °C
Temperature Range : 4 to 60 °C
Capacity : 582 L
Shaking Speed : 40 to 300 rpm
Temperature Accuracy : ± 0.1 °C
Temperature Range : 4 to 60 °C
Capacity : 280 L
Shaking Speed : 40 to 300 rpm
Temperature Accuracy : ± 0.1 °C
Temperature Range : RT+5 to 60 °C
Capacity : 280 L
Shaking Speed : 40 to 300 rpm
Temperature Accuracy : ± 0.1 °C
Chamber Volume : 475 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Chamber Volume : 375 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Chamber Volume : 1075 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Electrical Requirement : 220V 50Hz
Temperature Range : CL:-10℃ to 65°C
Display Resolution : 0.1°C
Temperature stability : High 0.5℃, low1℃
Chamber Volume : 275 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
