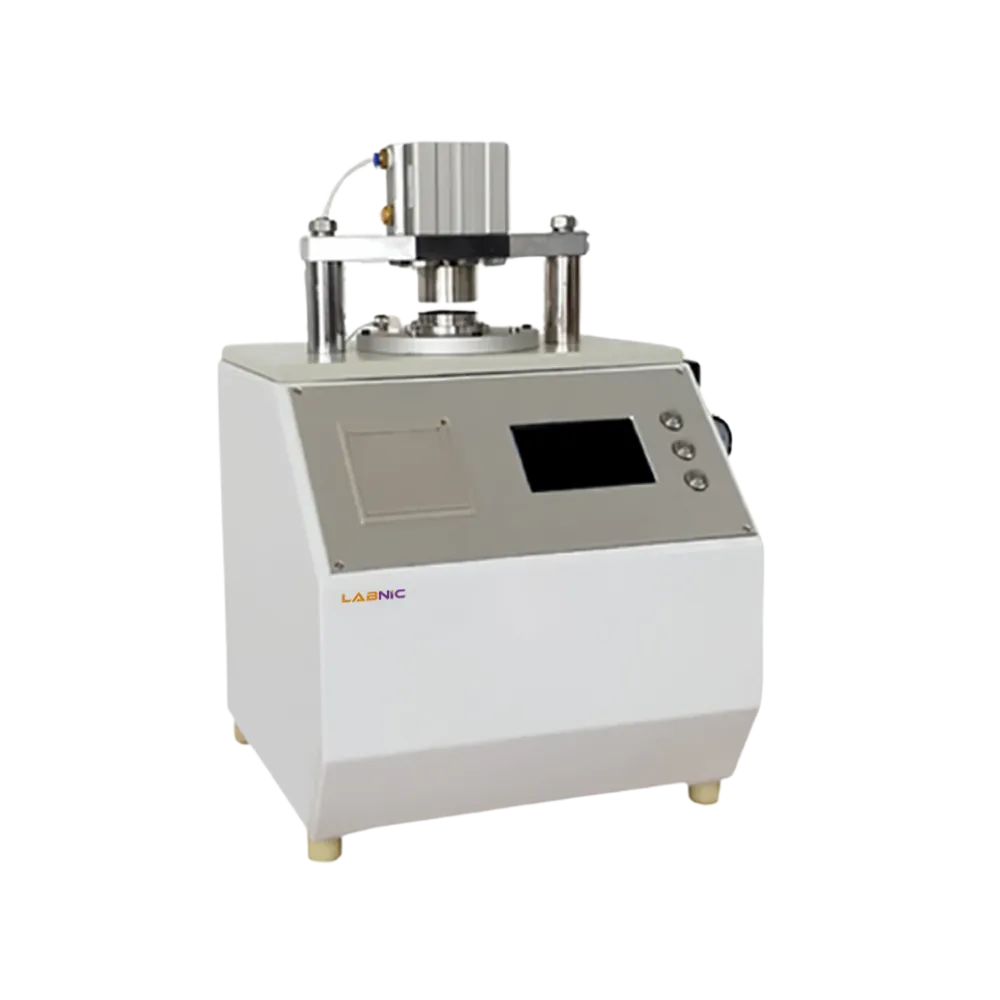

Low Air Permeability Tester LBN-AT111

Low Air Permeability Tester LBN-AT111

Low Air Permeability Tester LBN-AT111 offers measurement range within 0 to 2500 ml/min for high accuracy. Equipped with smart chips and load sensors for enhancing precision. Integrated with automatic features to provide reliability. Constructed with high quality materials for durability in demanding environment. Our Low Air Permeability Tester LBN delivers quality testing of various materials across multiple industries.

Measurement Range 0 to 2500 ml/min, 0.01 to 42 µm/Pas
Accuracy 0.01 µm/(Pas), 0.06 ml/min, 0.1s
Linear Error < 1%
Measuring Area 6.42 cm², 10 cm² (selectable)
Pressure Difference 0.05 KPa to 6 KPa
Dimension 330 × 340 × 490 mm
Weight 30 Kg

Lightweight and Portable

Automatic data recording

Compact Design

Digital Display

Versatile Testing Capability

Low Air Permeability Tester LBN-AT111 is widely used in filtration industry, paper and packaging and textile industries. It is essential for Testing permeability of fabrics used in buildings, leather industry as well as used in medical and health care.

Download Catalog for Low Air Permeability Tester LBN-AT111

Download

Low Air Permeability Tester

Labnic Low Air Permeability Tester is designed to measure airflow of materials with very low flow rates, ranging from 0 to 2500 ml/min. They deliver fast and accurate results, making it ideal for high-precision applications. These are equipped with smart chips and load sensors, ensuring reliable performance. They feature an LCD screen for easy operation and clear data visualization. Our Low Air Permeability Tester is suitable for evaluating the porosity of ultra-thin sheets, including paper and other thin materials.

Low Air Permeability Tester LBN-AT112

Low Air Permeability Tester LBN-AT112

Measure Range : 0 to 400 ml/min, 0.00005 to 0.2 µm/Pas

Accuracy : 10 to 5 µm / (Pas), 3×10 4 ml/min, 0.1s

Linear Error : < 1%

Measuring Area : 50 cm² (selectable)

Labnic Fabric Air Permeability Tester is designed to measure within a range of 0-200 Pa/cm2, ensuring accurate and reliable results. They are controlled by a single-chip microcomputer, providing precision and ease of use. These are equipped with a micro printer for quick and clear printing of results. They feature an LCD screen for convenient operation. Our Fabric Air Permeability Tester allows user to set pressure difference, making it ideal for testing leather, cloth, fabrics, and paper.

Fabric Air Permeability Tester LBN-AT113

Fabric Air Permeability Tester LBN-AT113

Measure Range : 0 – 200 Pa/ cm2, 0 – 2000 L/dm2/min, 0 – 3000 mm/s, 0 – 3300 µm/Pas

Accuracy : 0.01 Pa/ cm2, 0.1 Pa, 0.01 L/dm2/min, 0.1 mm/s

Linear Error : <1%

Measuring Area : 5 cm2, 20cm2, 10cm2 (selectable)
