Low Air Permeability Tester LBN-AT111
Low Air Permeability Tester LBN-AT111

Low Air Permeability Tester LBN-AT111

www.labnic.com | info@labnic.com

Overview

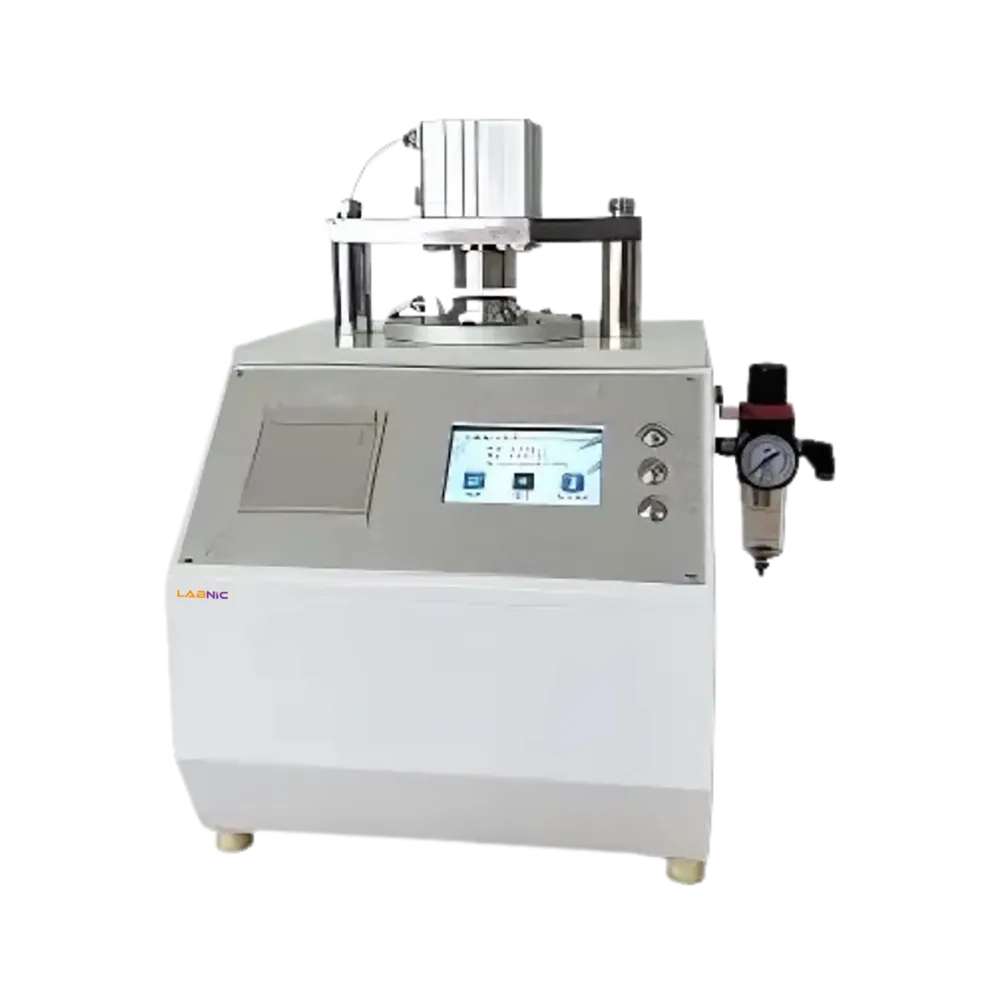

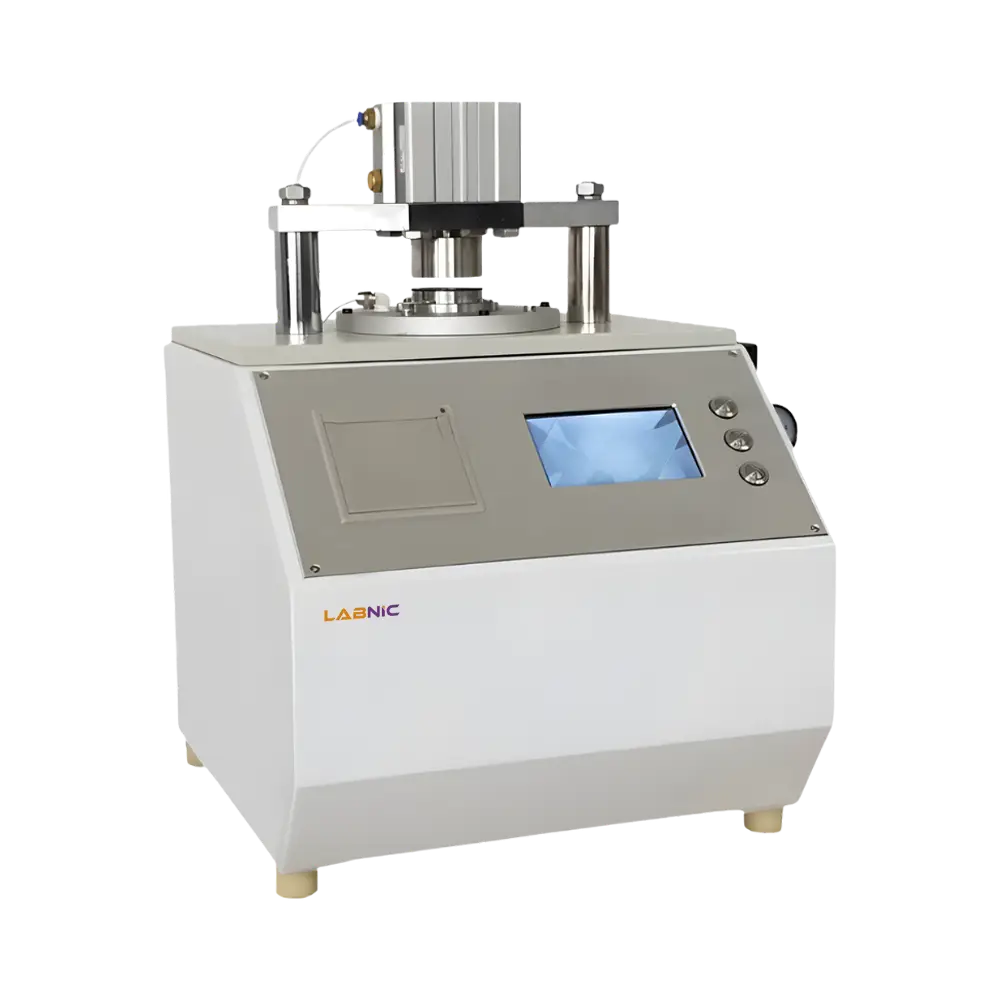

Low Air Permeability Tester LBN-AT111 runs by a microcomputer with a range of 0 to 2500 ml/min and 0.05 KPa to 6 KPa. It is fully automated and equipped with smart chips and load sensors. Offers adjustable pressure based on product permeability. Our tester has a built-in micro-printer for quick and clear prints.

Specifications :
Measure Range 0 to 2500 ml/min, 0.01 to 42 µm/Pas
Accuracy 0.01 µm/ (Pas), 0.06 ml/min, 0.1s
Linear Error < 1%
Measuring Area 6.42 cm², 10 cm² (selectable)
Pressure Difference 0.05 KPa to 6 KPa
Dimension 330 × 340 × 490 mm
Weight 30 Kg
Features :
  • Fast and accurate tests
  • Soft-touch buttons LCD
  • Quick and simple results
  • Data recording and processing functions
Applications :

Low Air Permeability Tester evaluates the air permeability of various materials such as paper, mica tape, and other sheet objects. Used for quality control in industries like textiles and packaging.
