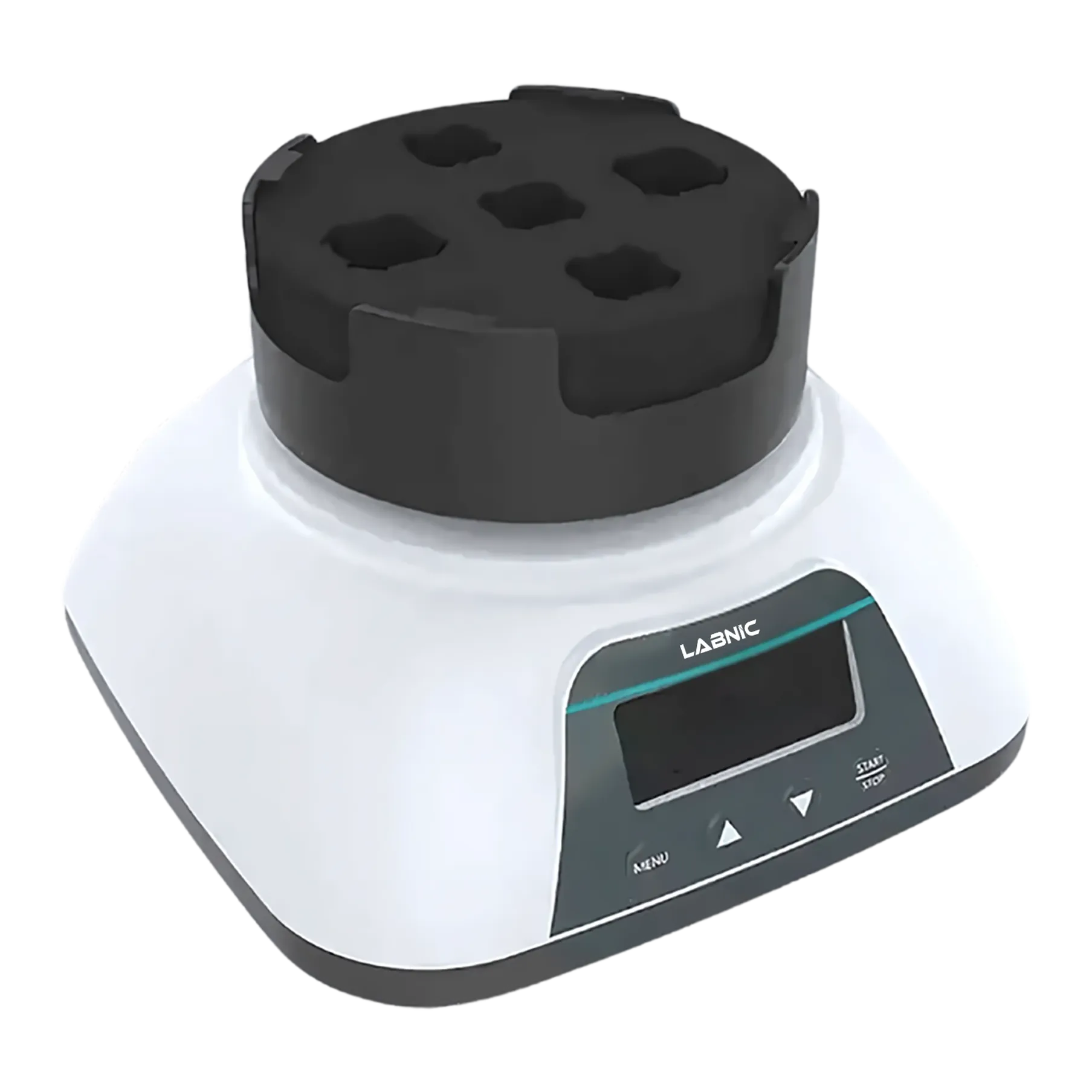

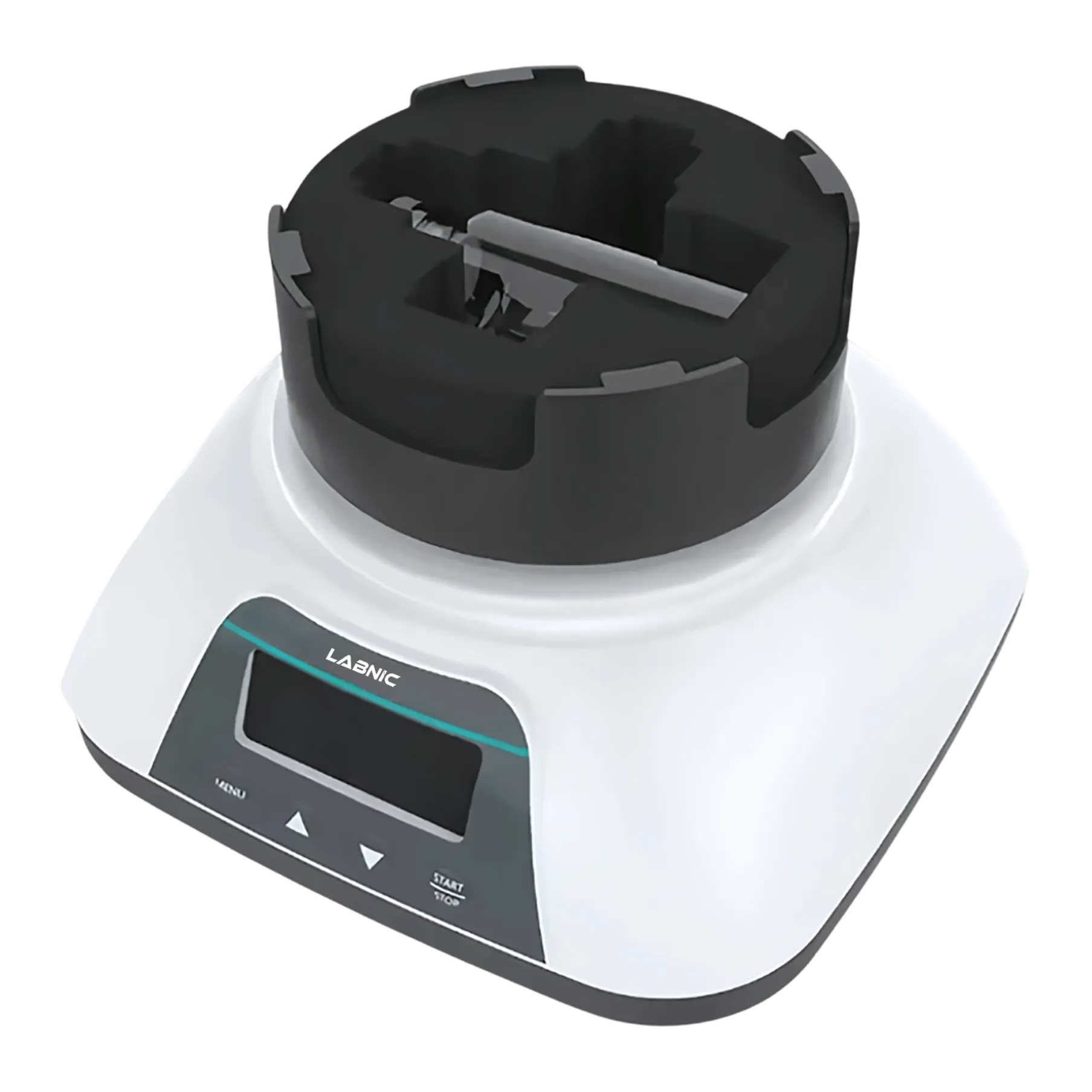

Multi-Plate Vortex Mixer LBN-MV152 is an efficient mixing device that uses 4.5 mm circular oscillation. Featuring a control panel with touch buttons for setting the time/speed and touch/continuous mode, as well as an LCD screen for displaying precise values. It is equipped with a brushless motor and various fixtures, allowing it to be used for centrifugal tubes, blood tubes, PCR plates, cell culture plates, and other applications.
| Capacity | 50 ml × 4 / 15 ml × 9 / 5 to 10 ml × 12 / 2 ml × 24 |
| Speed Range | Touch: 0 to 3000 rpm, Run: 100 to 3000 rpm |
| Amplitude | 4.5 mm circular oscillation |
| Temperature | 5 to 40 ℃，80 %RH |
| Timing / Time | 1 to 99 min or 1 to 59 sec |
| Operating Mode | Touch / Run |
| Control Mode | PWM speed adjustment |
| Display | LCD |
| Motor | Brushless motor |
| Voltage | AC 100 to 240 V / DC 24 V |
| Power | 20 W |
Designed with digital display for precise reading
Integrated with step-less speed regulation and multi-functional switch switchable for touch/continuous mode
Equipped with the ultra-low body for stable operation
Brushless motor with string power with various fixtures, suitable for centrifugal tube, blood tube, PCR plate cell culture plate, and so on
Small and compact design delivering powerful robust vortex mixing at 3000 rpm
Multi-Plate Vortex Mixers are widely applied in general micro test tube mixing, mixing tissue samples, vertexing cells suspensions, mixing chemical reagents and high throughput testing in clinical, environmental and chemistry laboratories.
Download Catalog for Multi-Plate Vortex Mixer LBN-MV152
Download
Capacity : 50 ml × 4 / 15 ml × 9 / 5 to 10 ml × 12 / 2 ml × 24
Speed Range : Touch: 0 to 3000 rpm, Run: 200 to 3000 rpm
Amplitude : 4.5 mm circular oscillation
Temperature : 5 to 40 ℃，80 %RH
Movement : Continuous/ touch operation
Orbital Diameter : 6 mm
Speed : 400 – 3000 rpm
Ambient Temperature : 5° to 40°C
Movement : Orbital
Orbital Diameter : 6 mm
Speed : 5600 rpm
Ambient Temperature : 5° to 40°C
Capacity : 50 ml
Speed Range : 3000 rpm
Control Method : Constant speed
Shaking Orbit : 4.5 mm (circle)
Capacity : 50 ml
Speed Range : 0 to 3000 rpm
Control Method : Knob speed regulation
Shaking Orbit : 4.5 mm (circle)
Movement : Continuous/ touch operation
Orbital Diameter : 6 mm
Speed : 0 – 3000 rpm
Ambient Temperature : 5° to 40°C
Speed Range : 500 to 3000 rpm
Sample Capacity : 50
Amplitude : 4 mm
Shaking Mode : Horizontal Swing
