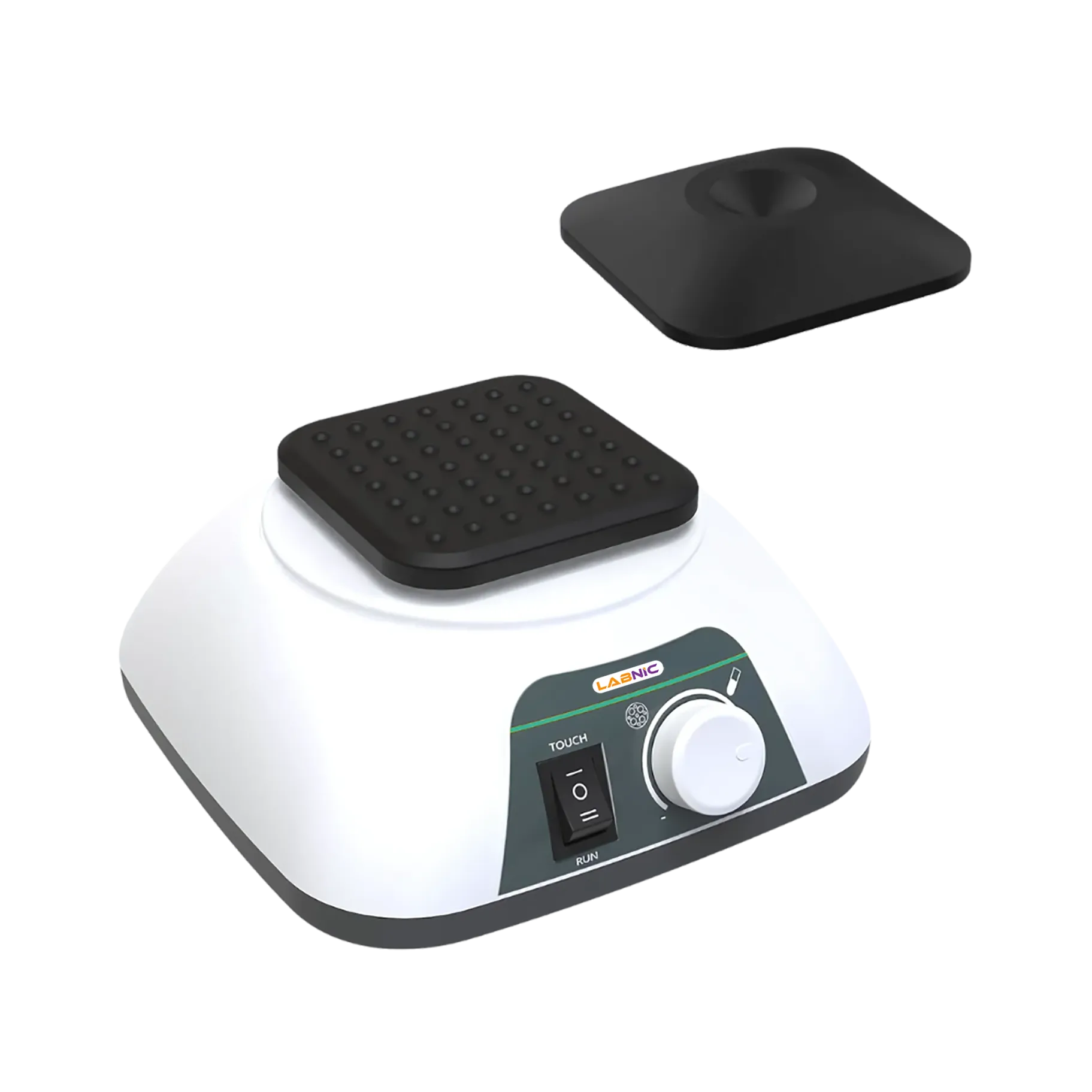

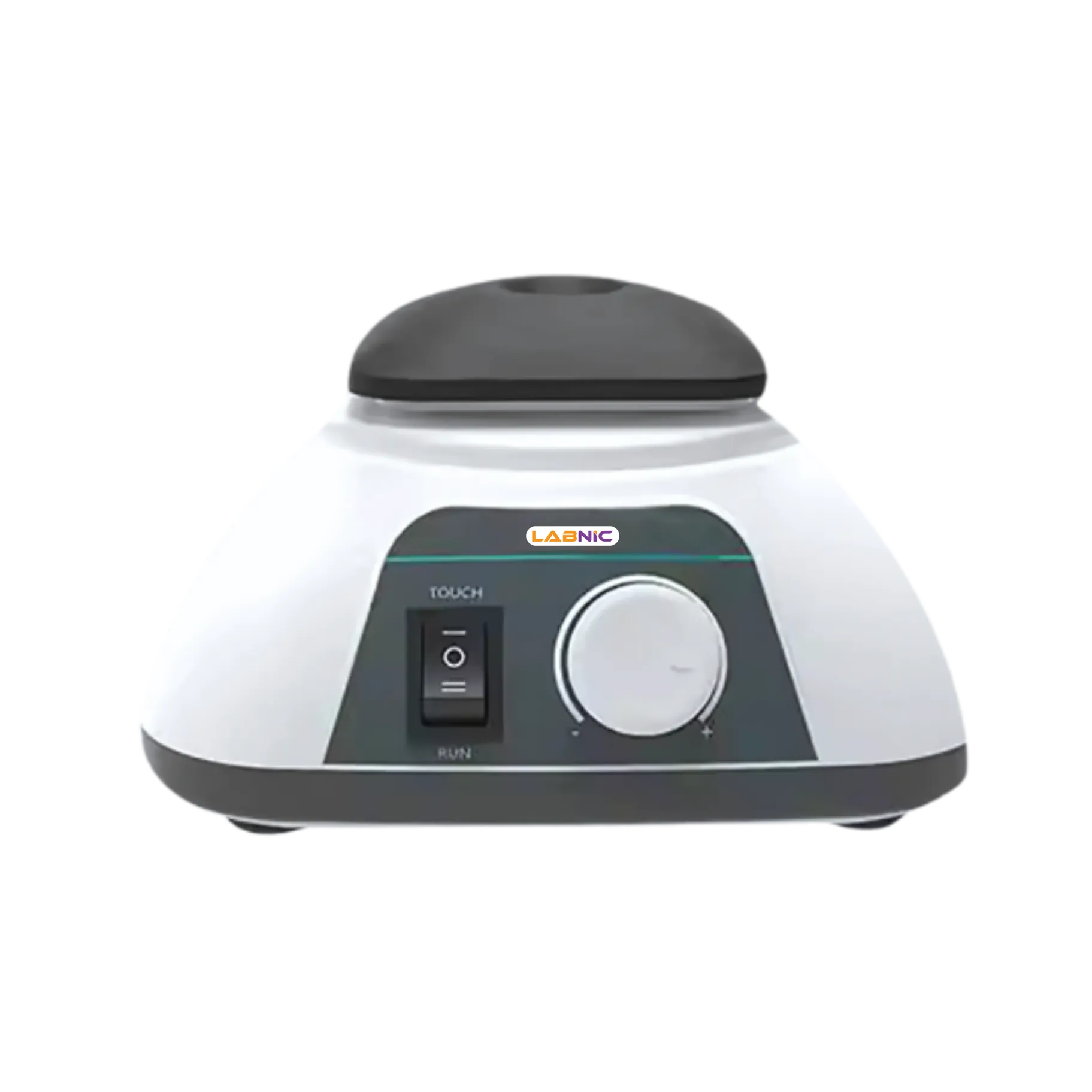

Multi-Plate Vortex Mixer LBN-MV151 is a versatile device that combines a small footprint and a high speed of 3000 rpm to produce an efficient mixing effect. Step-less speed regulation and a multi-functional switch for continuous mode settings are included. Designed with a knob for adjusting the speed to the user's preference.
| Capacity | 50 ml × 4 / 15 ml × 9 / 5 to 10 ml × 12 / 2 ml × 24 |
| Speed Range | Touch: 0 to 3000 rpm, Run: 200 to 3000 rpm |
| Amplitude | 4.5 mm circular oscillation |
| Temperature | 5 to 40 ℃，80 %RH |
| Timing / Time | 1 to 99 min or 1N1,J2:M13 to 59 sec |
| Operating Mode | Touch / Run |
| Control Mode | Knob speed adjustment |
| Display | No |
| Motor | Brushless motor |
| Voltage | AC 100 to 240 V / DC 24 V |
| Power | 20 W |
Integrated with step-less speed regulation and multi-functional switch switchable for touch/continuous mode
Equipped with the ultra-low body for stable operation
Brushless motor with string power with various fixtures, suitable for centrifugal tube, blood tube, PCR plate cell culture plate, and so on
Small and compact mixer that is powerful enough to deliver robust mixing at 3000 rpm
Multi-Plate Vortex Mixers are widely applied in general micro test tube mixing, mixing tissue samples, vertexing cells suspensions, mixing chemical reagents and high throughput testing in clinical, environmental and chemistry laboratories.
Download Catalog for Multi-Plate Vortex Mixer LBN-MV151
Download
Capacity : 50 ml × 4 / 15 ml × 9 / 5 to 10 ml × 12 / 2 ml × 24
Speed Range : Touch: 0 to 3000 rpm, Run: 100 to 3000 rpm
Amplitude : 4.5 mm circular oscillation
Temperature : 5 to 40 ℃，80 %RH
Movement : Continuous/ touch operation
Orbital Diameter : 6 mm
Speed : 0 – 3000 rpm
Ambient Temperature : 5° to 40°C
Speed Range : 500 to 3000 rpm
Sample Capacity : 50
Amplitude : 4 mm
Shaking Mode : Horizontal Swing
Movement : Orbital
Orbital Diameter : 6 mm
Speed : 5600 rpm
Ambient Temperature : 5° to 40°C
Capacity : 50 ml
Speed Range : 3000 rpm
Control Method : Constant speed
Shaking Orbit : 4.5 mm (circle)
Capacity : 50 ml
Speed Range : 0 to 3000 rpm
Control Method : Knob speed regulation
Shaking Orbit : 4.5 mm (circle)
Movement : Continuous/ touch operation
Orbital Diameter : 6 mm
Speed : 400 – 3000 rpm
Ambient Temperature : 5° to 40°C
