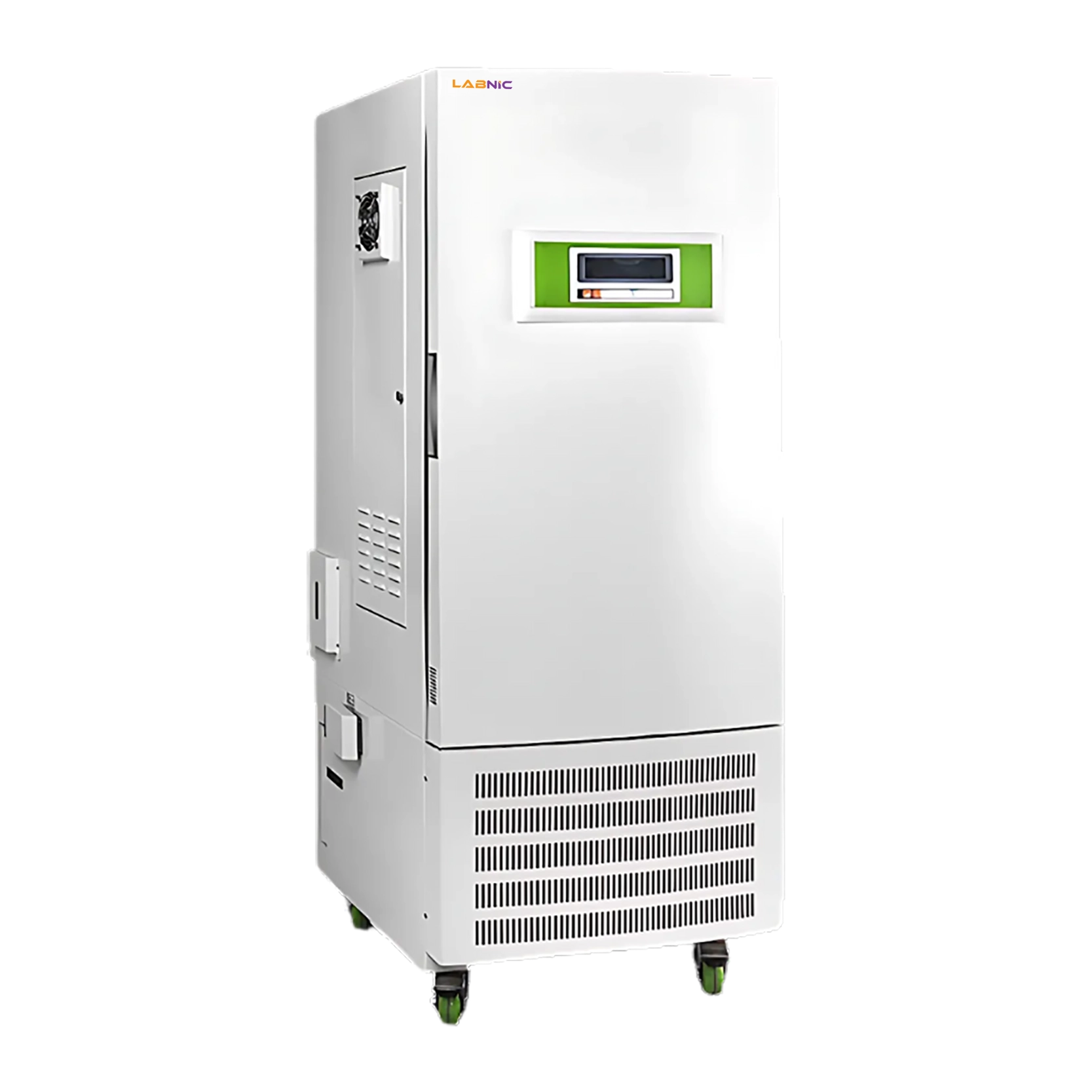

Cooling Incubator LBN-CI161 chamber is made up of polished stainless-steel material in which semi circular arcs at corners for easy cleaning and the space between the shelves in the chamber is adjustable. It adopts PID temperature controller. R134a is used as refrigerant with imported compressor. It is provided with maximum 3 shelves. 0.1°C of display resolution. It is equipped with a standard digital controller.
| Electrical Requirement | 220V 50Hz |
| Temperature Range | CL:-10℃ to 65°C |
| Display Resolution | 0.1°C |
| Temperature stability | High 0.5℃, low1℃ |
| Ambient Temperature | +5°C to 35°C |
| Power Consumption | 1300W |
| Interior Dimension (W×D×H) | 550×405×670 mm |
| Exterior Dimension (W×D×H) | 690×800×1430 mm |
| Shelves | 3(pcs) |
| Timing range | 1 to 5999min |
Independent temperature limiting alarm system provides experiments to run safely
RS-485 and printer are used as connector which can connect to computer to record the variations of the temperature
It is provided with 25 mm instruction connection hole on the left side of the chamber for easy testing operation and temperature measurement
UV sterilizer is used as optional
Microprocessor controller
It is widely applied in the field of scientific research industries for biochemical oxygen demand testing and bacterial research centers
Download Catalog for Cooling Incubator LBN-CI161
Download
Chamber Volume : 175 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Chamber Volume : 275 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Chamber Volume : 375 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Chamber Volume : 475 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Chamber Volume : 800 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Chamber Volume : 1075 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Voltage : 220V/50Hz
Temperature Range : 0-65℃
Temperature Resolution Ratio : 0.1℃
Temperature Motion : ±0.5℃
Capacity : 81 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 43 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 252 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 138 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 20 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 160 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 270 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 50 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 80 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Temperature Range : RT+5 - 100℃
Temperature Setting Range : 25℃ – 100℃
Maximum Heating Rate : 8℃/min
Maximum Cooling Rate : 3℃/min
No of Blocks : 1
Heating Temperature Range : RT +5°C to 150°C
Ambient Temperature : 5° - 40°C
Relative Humidity : 0.8
Temperature Control Range : Rt +5° to 100°C
Temperature Precision : ± 0.5°
Timer : 0 – 99Hr 59min
Heating Time : ≤ 15 min
No of Blocks : 4
Heating Temperature Range : RT +5°C to 150°C
Ambient Temperature : 5° - 40°C
Relative Humidity : 0.8
No of Blocks : 2
Heating Temperature Range : RT +5°C to 150°C
Ambient Temperature : 5° - 40°C
Relative Humidity : 0.8
Temperature Range : RT+5 to 80°C
Temperature Accuracy : ±0.5°C
Ambient Temperature : 5 to 35°C
Shelves : 2 Piece
Chamber Volume : 35 L
Temperature Range : RT+5 to 65℃
Display resolution : 0.1℃
Ambient Temperature : +5℃ to30℃
Temperature Range : 4 to 60 ℃ (Cooling)
Capacity : 265 L
Shaking Speed : 20 to 300 rpm
Time Range : 1 to 9999 minutes
Temperature Range : RT+5 to 60 °C
Capacity : 155 L
Shaking Speed : 20 to 300 rpm
Time Range : 1 to 9999 minutes
Temperature Range : 4 to 60 ℃ (Cooling)
Capacity : 155 L
Shaking Speed : 20 to 300 rpm
Time Range : 1 to 9999 minutes
Temperature Range : RT+5 to 60 °C
Capacity : 265 L
Shaking Speed : 20 to 300 rpm
Time Range : 1 to 9999 minutes
