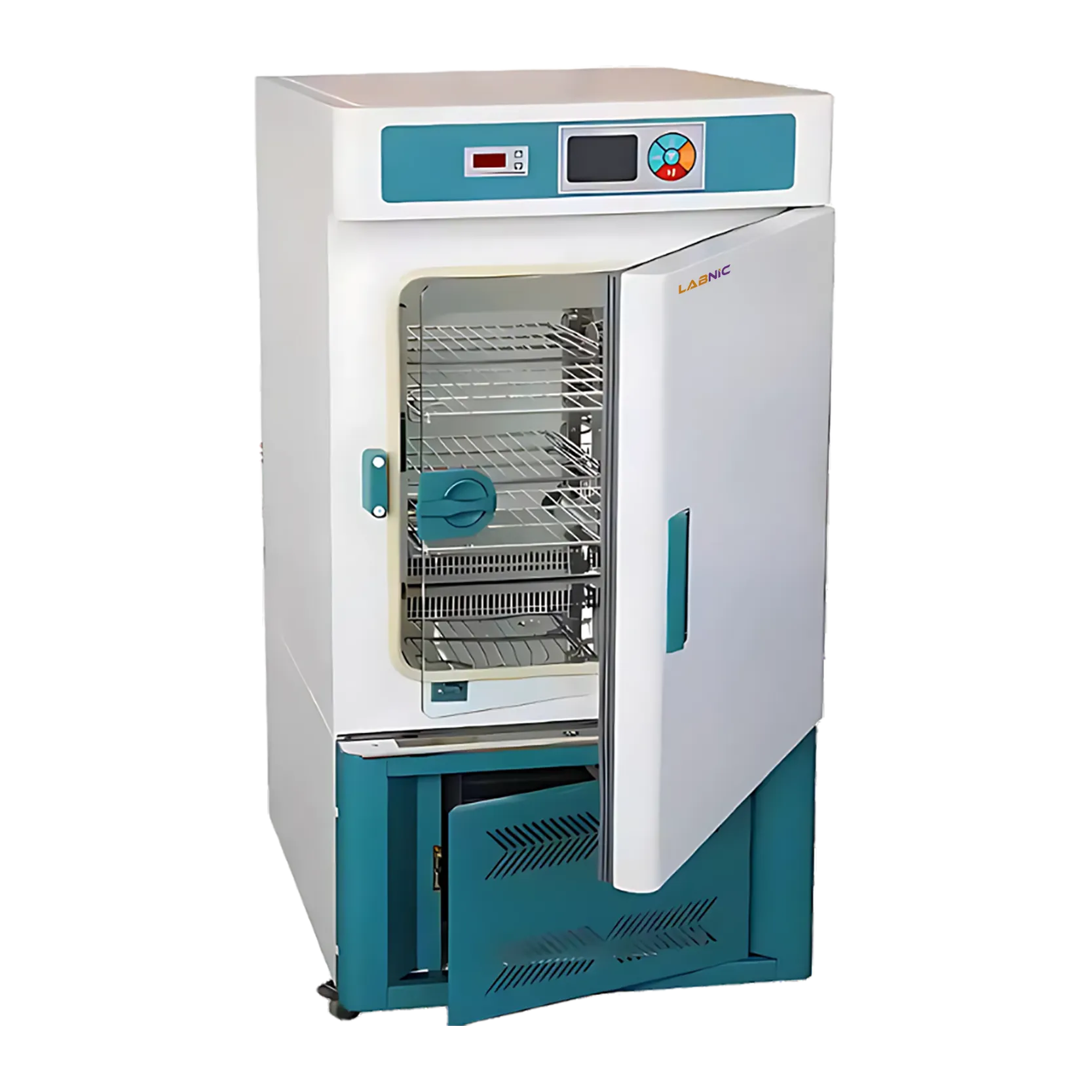

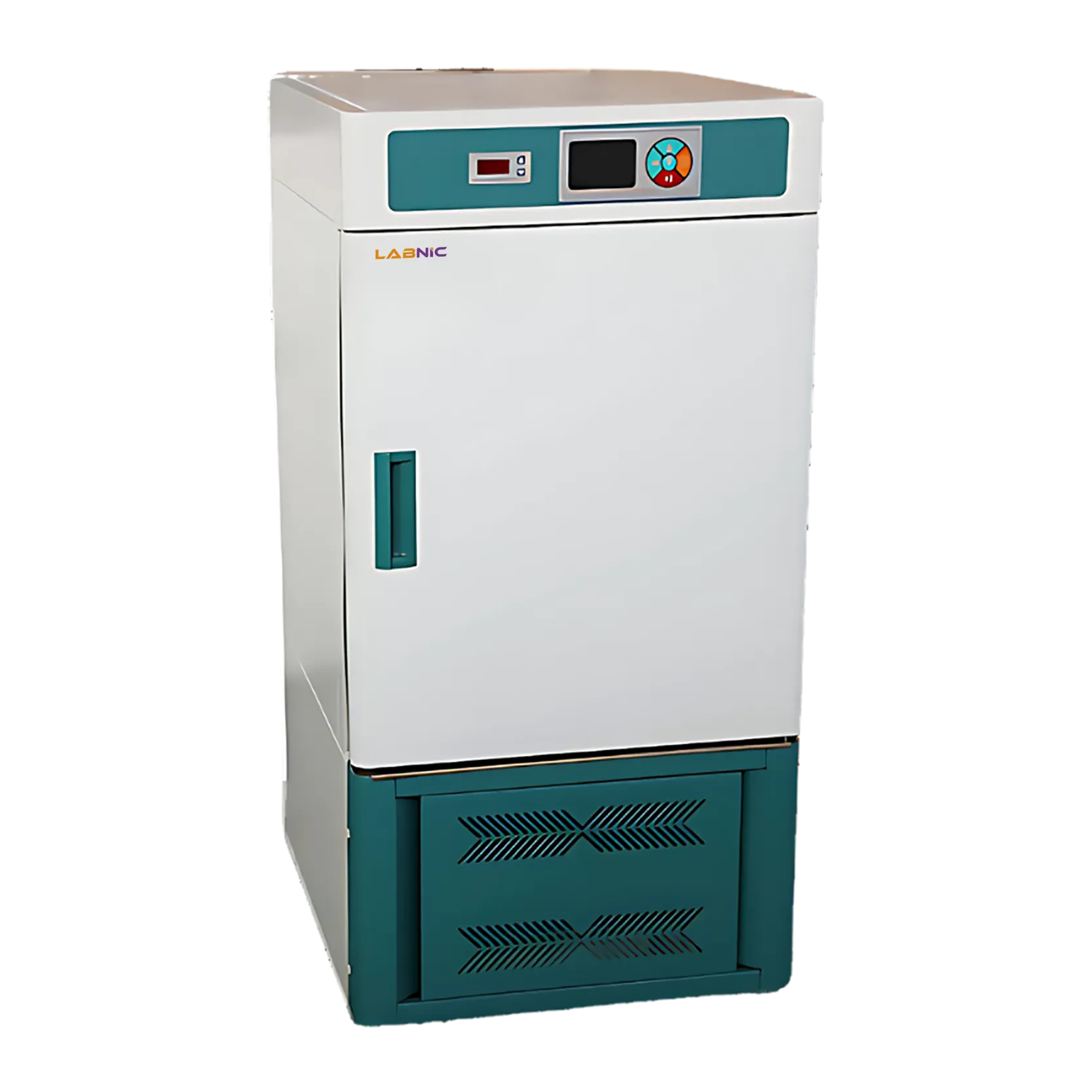

Cooling Incubator LBN-CI162 has maximum temperature ranges from 0~65℃ and ±1℃ of temperature uniformity. R134a is used as coolant. Internal chamber is made up of stainless steel material and four-square semicircle transition which is convenient to clean. Space between shelves are adjustable. It adopts micro-computer control system. Equipped with LCD display to view working parameters and power reset recovering.
| Voltage | 220V/50Hz |
| Temperature Range | 0-65℃ |
| Temperature Resolution Ratio | 0.1℃ |
| Temperature Motion | ±0.5℃ |
| Temperature uniformity | ±1℃ |
| Power | 300 W |
| Coolant | R134a |
| Ambient temperature | 5-30℃ |
| Inner Chamber Size | 420×350×500 mm |
| Exterior Size | 570×560×1200 mm |
| Packing Size | 730×730×1190 |
| N.W. | 69 Kg |
| G.W. | 92 Kg |
| Timing | 1-9999min |
| Load per rack | 2pieces (15kg/piece) |
Fluoride free refrigeration and gentle breeze circulation
There is a hole of Φ52mm at left side of container
Inner door is sealed with tempered glass silicon rubber and magnetic rubber seal outer door which is convenient to on/off inner chamber with light door convenient observation
Intelligent defrosting function provide long frost-free operation of the equipment
It is a high quality of cooling bed refrigerated incubator
It is widely applied in the field of industries, educational sectors and medical institutes
Download Catalog for Cooling IncubatorLBN-CI162
Download
Electrical Requirement : 220V 50Hz
Temperature Range : CL:-10℃ to 65°C
Display Resolution : 0.1°C
Temperature stability : High 0.5℃, low1℃
Chamber Volume : 175 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Chamber Volume : 275 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Chamber Volume : 375 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Chamber Volume : 475 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Chamber Volume : 800 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Chamber Volume : 1075 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Temperature Range : Below room temperature - 15℃ to 100℃
Temperature Stability : ± 0.5℃
Display Precision : 0.1 ℃
Heating up time : ≤ 12 min (25℃ to 100℃)
Temperature Range : RT+5 - 100℃
Temperature Setting Range : 25℃ – 100℃
Maximum Heating Rate : 8℃/min
Maximum Cooling Rate : 3℃/min
Temperature range : RT+5 to 100℃
Time for temperature increasing : ≤25 minutes (from 20℃ to100℃ )
Temperature accuracy : ≤±0.5℃
Display resolution : 0.1℃
Temperature Range : RT+5℃ TO 100℃
Time for temperature increasing : ≤25 minutes 20℃ to 100℃
Temperature Accuracy : ≤±0.5°C
Uniformity of the block temperature : ≤±0.5℃
No of Blocks : 2
Heating Temperature Range : RT +5°C to 150°C
Ambient Temperature : 5° - 40°C
Relative Humidity : 0.8
Capacity : 81 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 138 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 43 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 252 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Temperature Range : RT+5 to 60 °C
Capacity : 170 L
Shaking Speed : 40 to 300 rpm
Temperature Accuracy : ± 0.1 °C
Temperature Range : 4 to 60 °C
Capacity : 170 L
Shaking Speed : 40 to 300 rpm
Temperature Accuracy : ± 0.1 °C
Temperature Range : RT+5 to 60 °C
Capacity : 582 L
Shaking Speed : 40 to 300 rpm
Temperature Accuracy : ± 0.1 °C
Temperature Range : 4 to 60 °C
Capacity : 582 L
Shaking Speed : 40 to 300 rpm
Temperature Accuracy : ± 0.1 °C
Temperature Range : 4 to 60 °C
Capacity : 280 L
Shaking Speed : 40 to 300 rpm
Temperature Accuracy : ± 0.1 °C
Capacity : 50 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 80 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 20 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 270 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 160 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Dimension : 540×605×960 mm
Voltage : 220 V 50 Hz
Storage area and layers (W×D×H) : 390×300×230 5 layers
Storage bags : 5 to 10 bags
Temperature Range : 20-24°C
Capacity : 5 L
Blood Bags : 10
Refrigerant : R134a
Temperature Range : 20-24°C
Capacity : 10 L
Blood Bags : 20
Refrigerant : R134a
Temperature Range : 22 ± 2 °C
Temperature Accuracy : 0.1 °C
Temperature Control : Microprocessor controller
Oscillation : 60 ± 5 cycles/ minute
Temperature Range : 22 ± 2 °C
Temperature Accuracy : 0.1 °C
Temperature Control : Microprocessor controller
Oscillation : 60 ± 5 cycles/ minute
