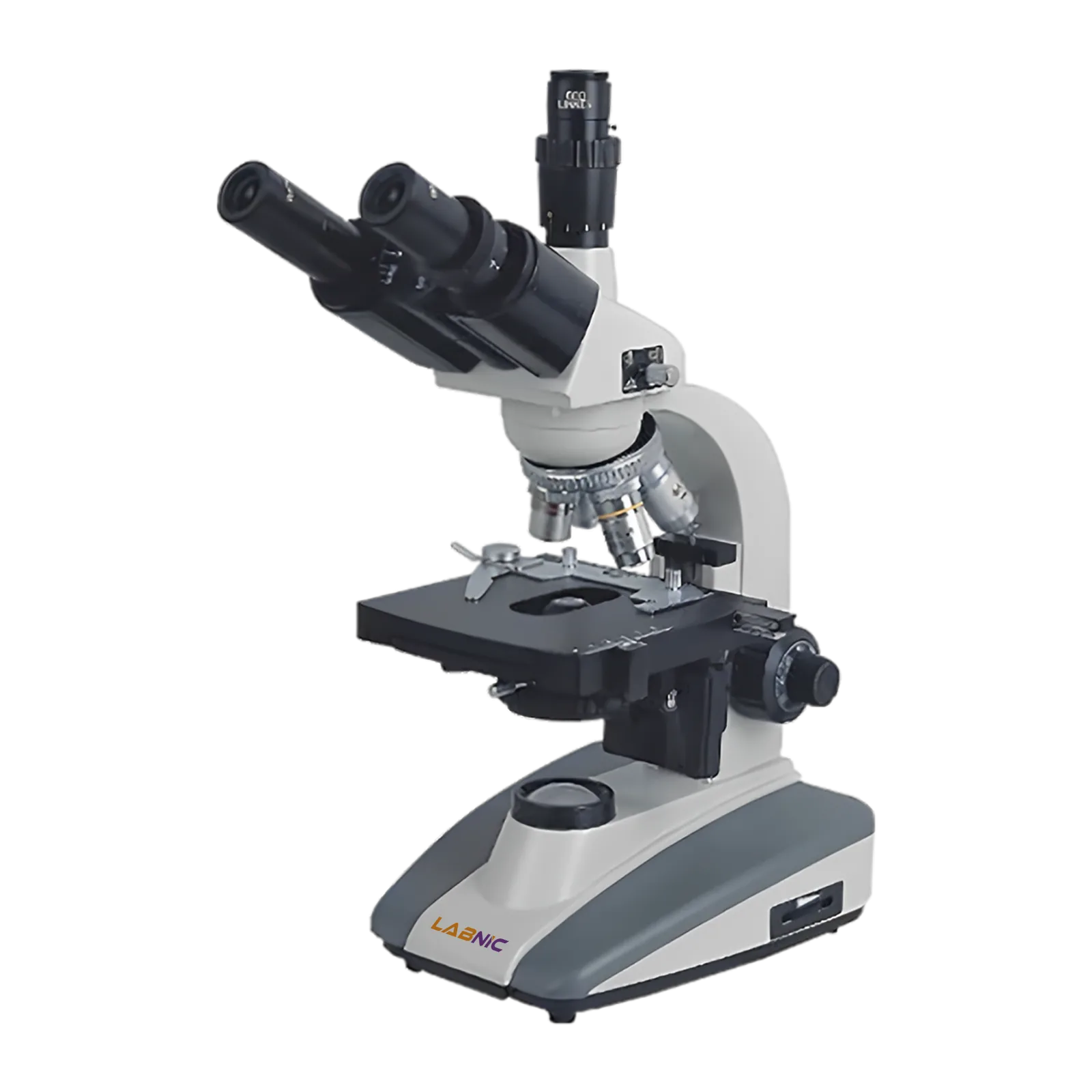

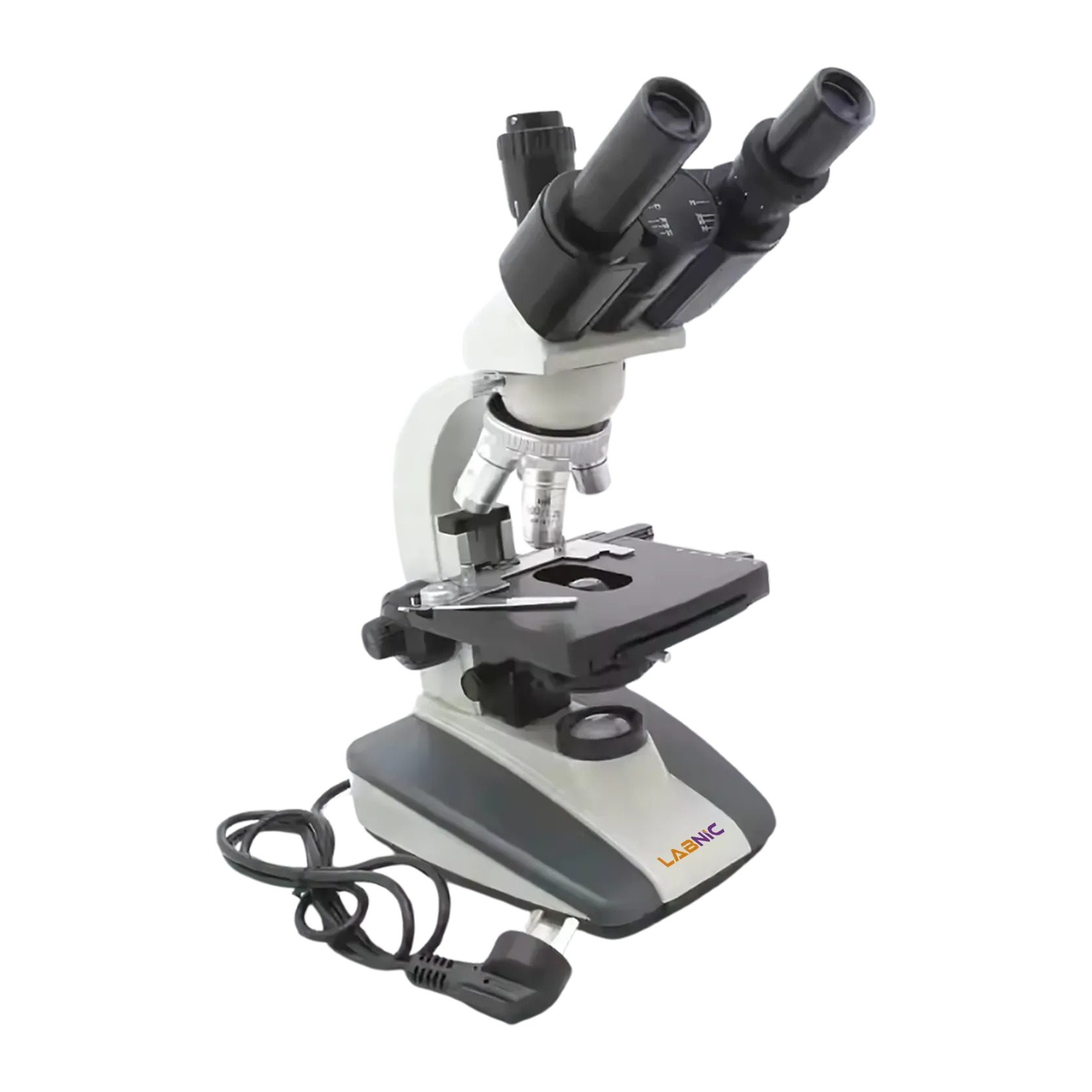

Biological Microscope LBN-BO125 comes with an ergonomic design that is employed for sample analysis in research facilities, academic institutions, and other places. It consists of view head with a Siedentopf trinocular inclination of 45° and a quadruple inward nosepiece. It has a coaxial coarse and fine focusing mechanism and a plan achromatic optical system. It features an Abbe condenser with a filter holder, an iris diaphragm with an aperture of 1.25 and a halogen lamp as a light source.
Optical Type | Achromatic |
Standard Magnification | 40×-1000× |
Head Type | Siedentopf trinocular |
Head Inclination | 45 degree |
Head Rotation | Head Rotate 360 degree |
Head Light Path | E100:P0/E0:P100 |
Eyepiece Diameter | 23.2mm |
Eyepiece | WF10X/18mm, 2 pcs, right tube adjustable |
Nosepiece | 4 holes, inward |
Objective | 4×, 10×, 40× (s), 100× (s, o) |
Working Stage Type | 2 Layer Mechanical |
Working Stage Size | 125 × 130mm |
Working Stage Moving | 60 × 30 mm |
Focusing Type | Coarse Coaxial & Fine, 20mm |
Condenser | 1.25 N. A |
Condenser Type | ⏀2-⏀30mm Iris Diaphragm, ⏀32mm Filter Holder |
Light Source | Halogen, brightness adjustable |
Power Supply | AC110V-220V |
Transmit Light | 6V/20W |
Weight | 20Kg |
Dimension (L × D × H) | 690 × 450 × 470 mm |
Light Source (optional) | LED 1W, brightness adjustable |
Video Adapter | C-Mount 1.0x, Digital Eyepiece 23.2mm |
It consists of an achromatic optional system
Ergonomically designed and user-friendly
A halogen lamp as a light source
Coaxial Coarse and fine focusing types with a range of 20nm
A wide eyepiece field
Inward Quadruple Nosepiece
Abbe condenser type is used
Biological Microscope is used for research analysis, quantitative and qualitative analysis of samples at medical institutes, scientific research institutes, laboratories, health clinics, etc.
Download Catalog for Biological Microscope LBN-BO125
