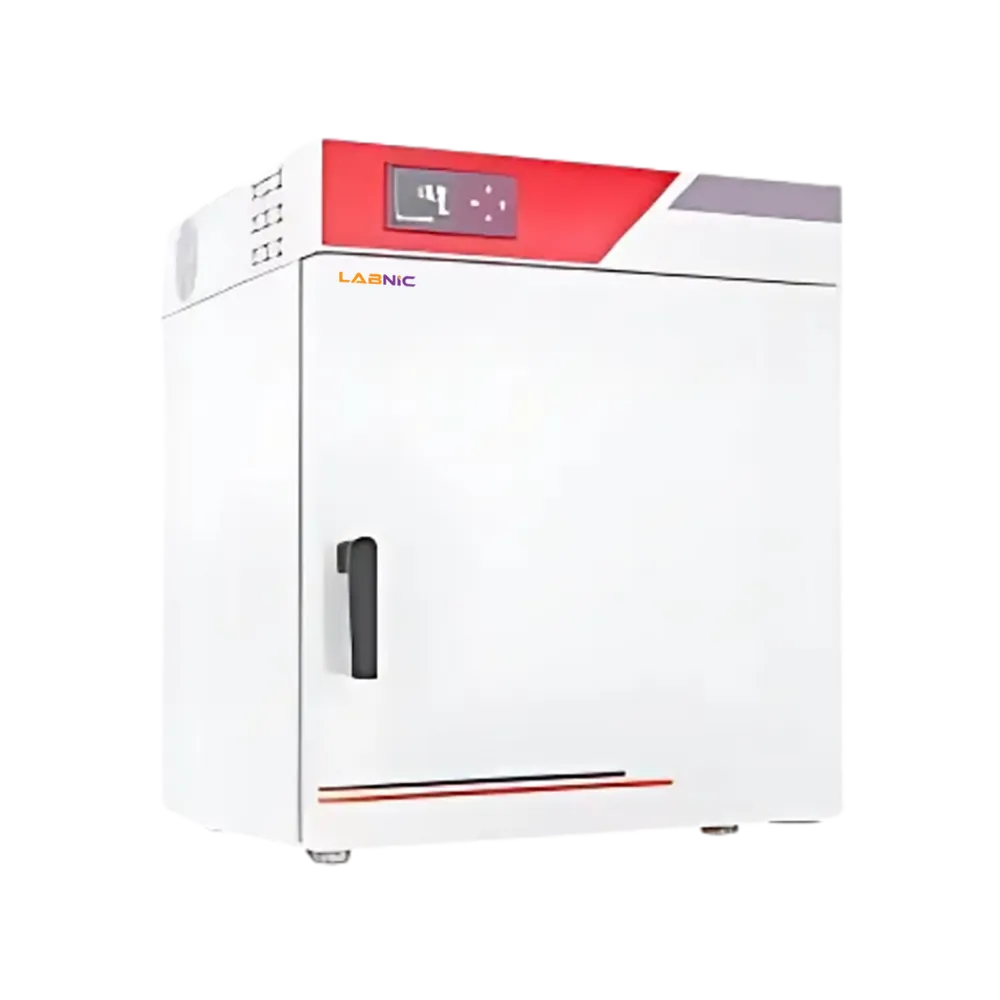

Drying Oven LBN-DO162

Drying Oven LBN-DO162

Drying Oven LBN-DO162 is a bench top model that takes up little bench space and is designed to provide trouble-free operation for a variety of needs. The instrument is well-suited to a wide range of applications up to 300°C, with temperature uniformity as good as 2.5°C. It has a chamber volume of 129 liters, a cold-rolling steel shell, and a mirror stainless steel working chamber. The unit includes an observation glass window as well as 2/7 shelves with a load capacity of 15 kg per shelf.

Volume 129 L
Temperature Range RT+5 - 300°C
Temperature Resolution 0.1°C
Temperature Fluctuation ±1°C
Temperature Uniformity ±2.5°C
Heating Rate ˃ 5
Timer Range 0 – 9999 min
No of Shelves 2/7
Load Per Shelf 15 Kg
Power 2150 W
Power Supply 220V, 50Hz
Internal Dimension W×D×H 570×400×570 mm
Housing Dimensions W×D×H 715×616×842 mm
Package Dimension W×D×H 835×776×992 mm
Net Weight 57 Kg
Gross Weight 75 Kg

Unique door design reduces heat emission

Time for effective usage and additional energy savings

Space saving foot print

Flexible shelving system allows for optimal space utilization

Temperature uniformity of ±2.5°C

Easy setting with intuitive interface

Easy to open door handle

Dual LED screens and soft touch keys

Rotary two stage locking structure has good sealing performance

Rounded corners of the chambers are easy to clean and maintain

Power supply recovery function helps in data retrieval during power failure

Due to air convention breeze device air in the chamber can be renewed and circulated

Access port for data logging

Audible and visual alarm functions ensure both sample and operator safety

It is widely used to dry glassware, sterilize general instruments etc. in chemical and pharmaceutical industries, food industries, and textiles and electronic components.
