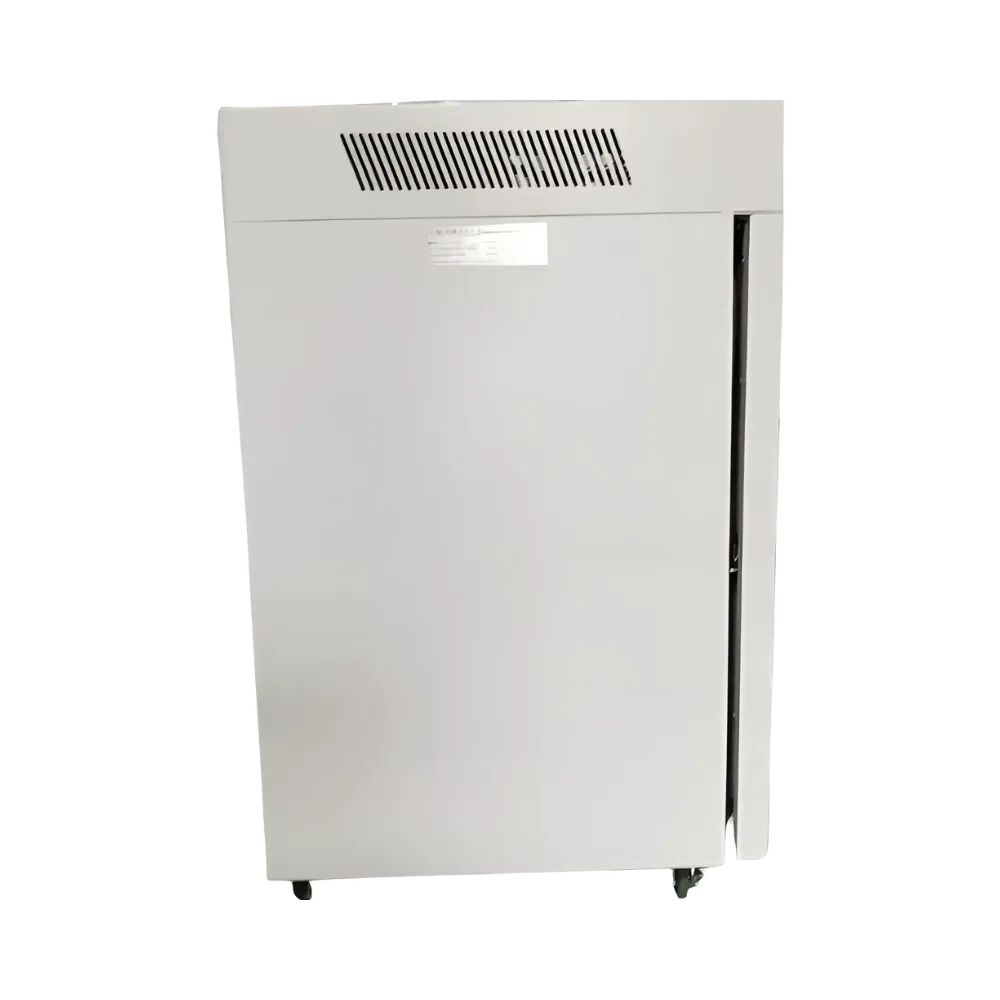

Vertical Heating Incubator LBN-VHI132 is an efficient device designed with a high-quality stainless-steel chamber with removable shelves. The air duct generates uniform hot air providing a precise and stable incubation environment. A microprocessor control system with an LCD panel controls the temperature at a range of RT+5 to 66 ℃.
| Capacity | 50 L |
| Temperature Range | RT +5 to 66 ℃ |
| Temperature Fluctuation | 0.5 ℃ |
| Temperature Uniformity | ±1 ℃ |
| Temperature Resolution | 0.1 ℃ |
| Display | LCD |
| Voltage | AC 220 V, 50 Hz |
| Power Consumption | 250 W |
| Chamber Dimension (W×D×H) | 350×350×410 mm |
| No. of Shelves | 2 |
| Net Weight | 32 kg |
| Gross Weight | 38 kg |
Designed with unique air duct for good temperature uniformity
Integrated with a microprocessor control system with temperature correction and timing function
Equipped with large LCD screen display and high-quality stainless-steel chamber with removable shelves which are easy-to-clean
Options: multi-segment programmable control, built-in printer, RS485 interface, and UV sterilizer
Vertical Heating incubators are used for the growth and storage of bacterial cultures mainly in the department of microbiology, biotechnology, research and development industries etc.
Download Catalog for Vertical Heating Incubator LBN-VHI132
