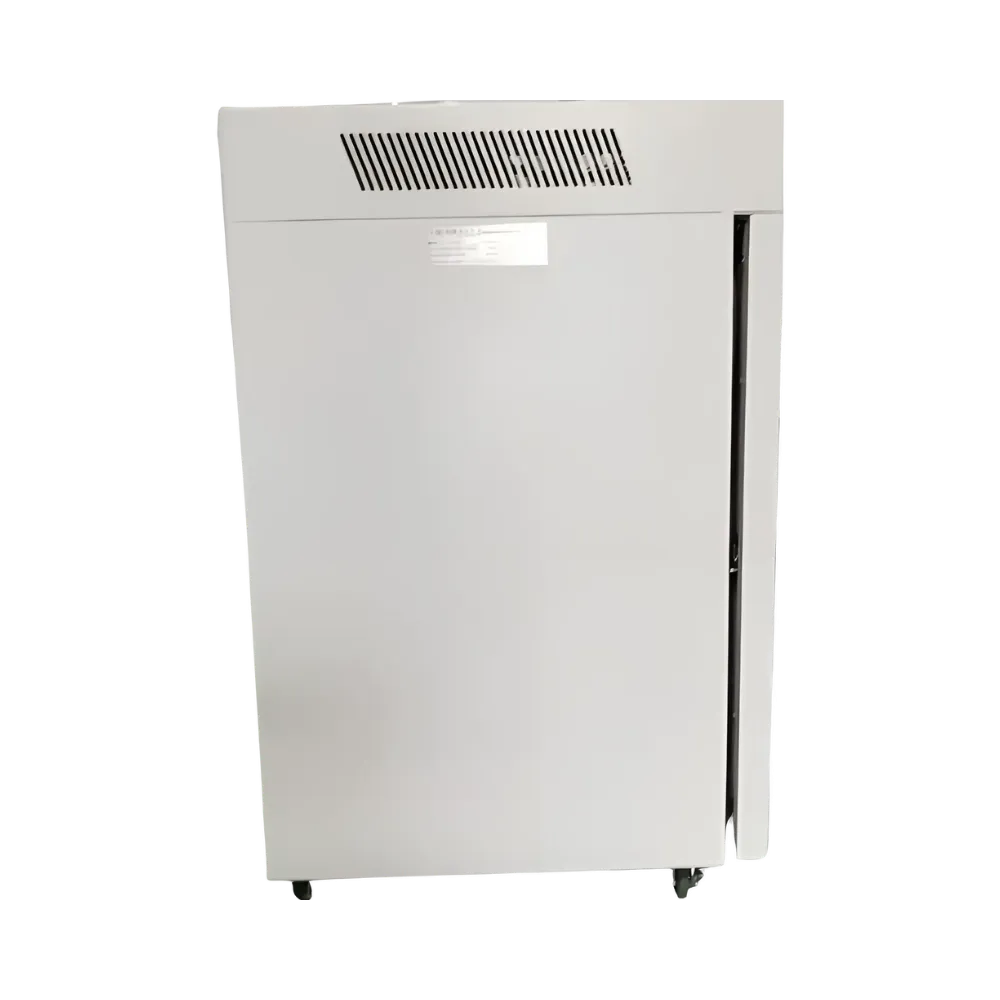

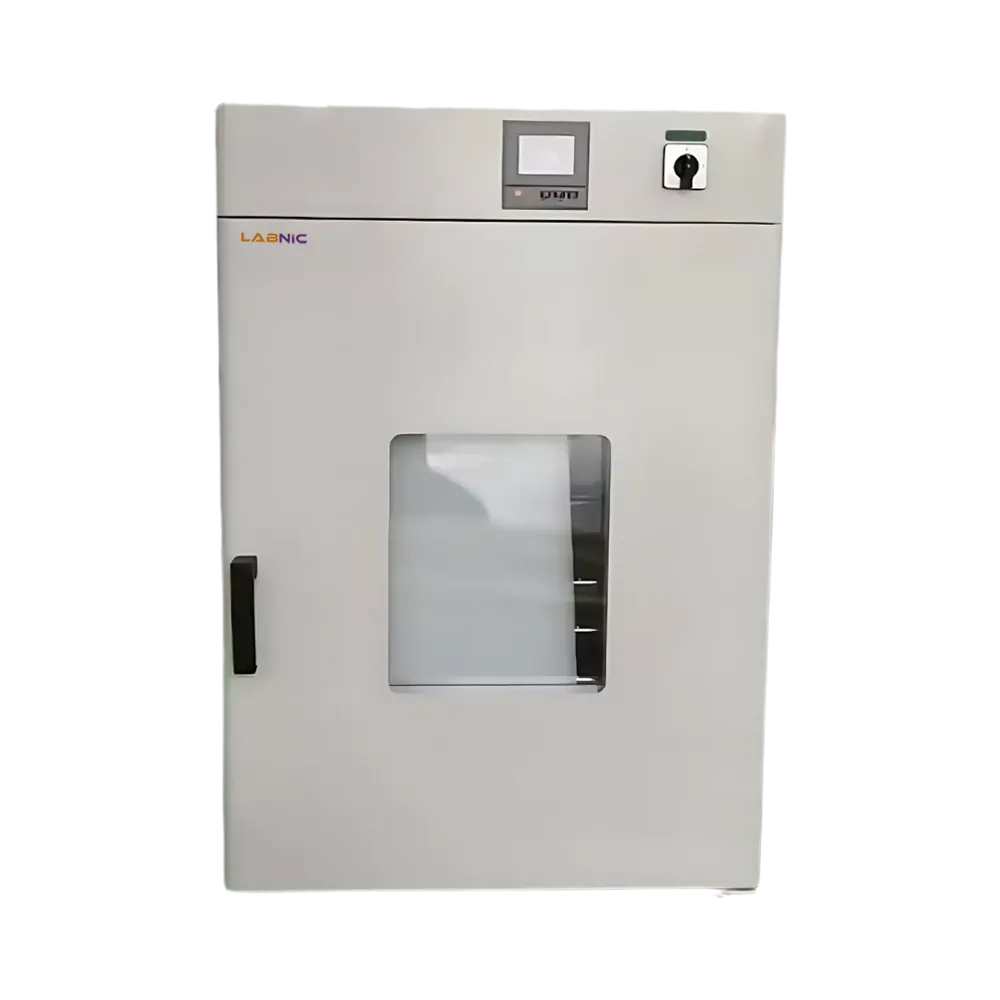

Vertical Heating Incubator LBN-VHI133 is a vertical floor standing microprocessor-controlled device designed with an air duct for providing uniformity of hot temperature throughout the chamber at a temperature range of RT+5 to 66 ℃. If required it is also provided with options like a multi-segment programmable control system, Built-in printer, RS485 interface, and UV sterilizer.
| Capacity | 80 L |
| Temperature Range | RT +5 to 66 ℃ |
| Temperature Fluctuation | 0.5 ℃ |
| Temperature Uniformity | ±1 ℃ |
| Temperature Resolution | 0.1 ℃ |
| Display | LCD |
| Voltage | AC 220 V, 50 Hz |
| Power Consumption | 300 W |
| Chamber Dimension (W×D×H) | 400×400×500 mm |
| No. of Shelves | 2 |
| Net Weight | 45 kg |
| Gross Weight | 55 kg |
Designed with unique air duct for good temperature uniformity
Integrated with a microprocessor control system with temperature correction and timing function
Equipped with large LCD screen display and high-quality stainless-steel chamber with removable shelves which are easy-to-clean
Options: multi-segment programmable control, built-in printer, RS485 interface, and UV sterilizer
Vertical Heating incubators are used for the growth and storage of bacterial cultures mainly in the department of microbiology, biotechnology, research and development industries etc.
Download Catalog for Vertical Heating Incubator LBN-VHI133
Download
Capacity : 20 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 50 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 160 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 270 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Electrical Requirement : 220V 50Hz
Temperature Range : CL:-10℃ to 65°C
Display Resolution : 0.1°C
Temperature stability : High 0.5℃, low1℃
Chamber Volume : 475 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Voltage : 220V/50Hz
Temperature Range : 0-65℃
Temperature Resolution Ratio : 0.1℃
Temperature Motion : ±0.5℃
Chamber Volume : 800 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Chamber Volume : 375 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Temperature Range : 20-24°C
Capacity : 10 L
Blood Bags : 20
Refrigerant : R134a
Temperature Range : 22 ± 2 °C
Temperature Accuracy : 0.1 °C
Temperature Control : Microprocessor controller
Oscillation : 60 ± 5 cycles/ minute
Temperature Range : 20-24°C
Capacity : 5 L
Blood Bags : 10
Refrigerant : R134a
Dimension : 540×605×960 mm
Voltage : 220 V 50 Hz
Storage area and layers (W×D×H) : 390×300×230 5 layers
Storage bags : 5 to 10 bags
Temperature Range : 22 ± 2 °C
Temperature Accuracy : 0.1 °C
Temperature Control : Microprocessor controller
Oscillation : 60 ± 5 cycles/ minute
Temperature Range : 4 to 60 ℃ (Cooling)
Capacity : 265 L
Shaking Speed : 20 to 300 rpm
Time Range : 1 to 9999 minutes
Temperature Range : 4 to 60 ℃ (Cooling)
Capacity : 155 L
Shaking Speed : 20 to 300 rpm
Time Range : 1 to 9999 minutes
Temperature Range : RT+5 to 60 °C
Capacity : 265 L
Shaking Speed : 20 to 300 rpm
Time Range : 1 to 9999 minutes
Temperature Range : RT+5 to 60 °C
Capacity : 155 L
Shaking Speed : 20 to 300 rpm
Time Range : 1 to 9999 minutes
Operating Temperature : 4 to 60 ℃ (Refrigeration type)
Temperature Control Precision : ±0.1 ℃
Rotation Frequency : 20 to 300 rpm
Amplitude : Φ26 mm
Operating Temperature : Room temperature +5 to 60 ℃
Temperature Control Precision : ±0.1 ℃
Rotation Frequency : 20 to 300 rpm
Amplitude : Φ26 mm
Operating Temperature : Room temperature +5 to 60 ℃
Temperature Control Precision : ±0.1 ℃
Rotation Frequency : 20 to 300 rpm
Amplitude : Φ26 mm
Chamber Volume : 35 L
Temperature Range : RT+5 to 65℃
Display resolution : 0.1℃
Ambient Temperature : +5℃ to30℃
Temperature Range : RT+5 to 80°C
Temperature Accuracy : ±0.5°C
Ambient Temperature : 5 to 35°C
Shelves : 2 Piece
