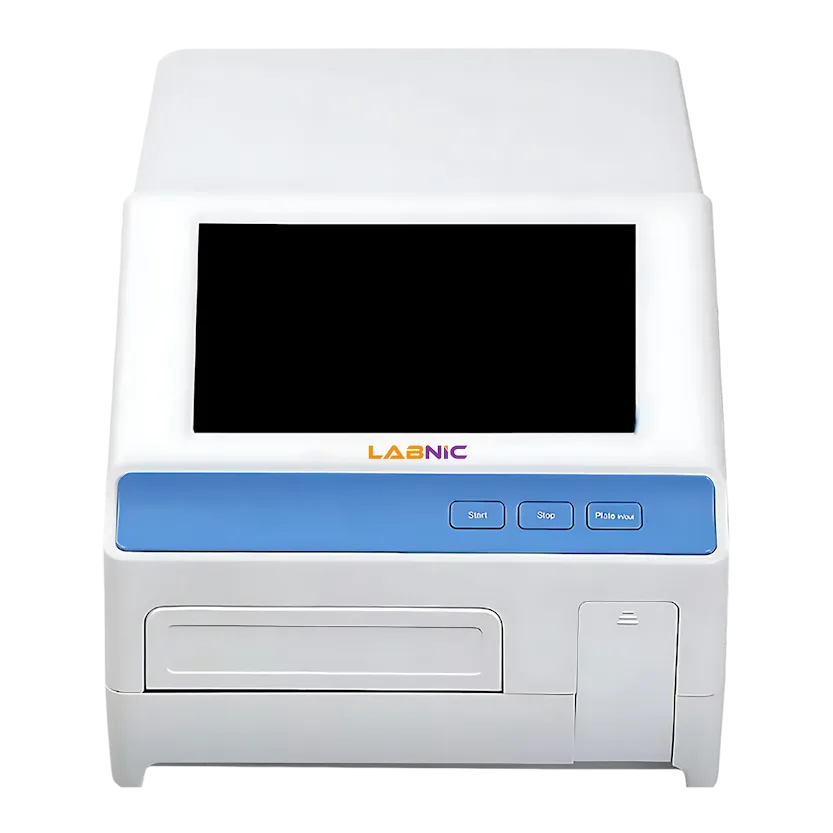

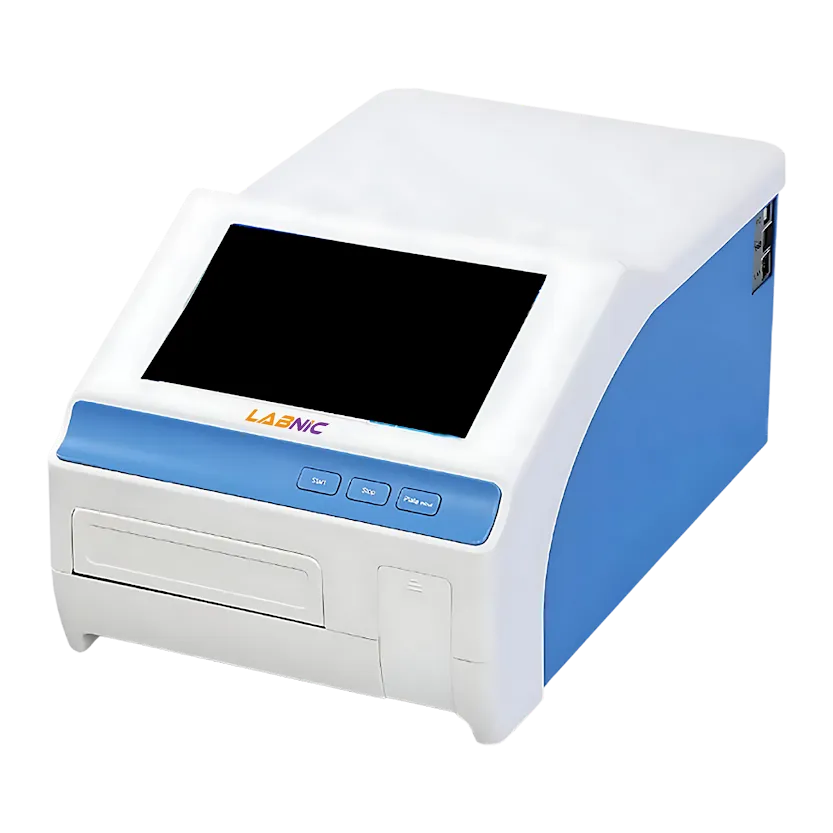

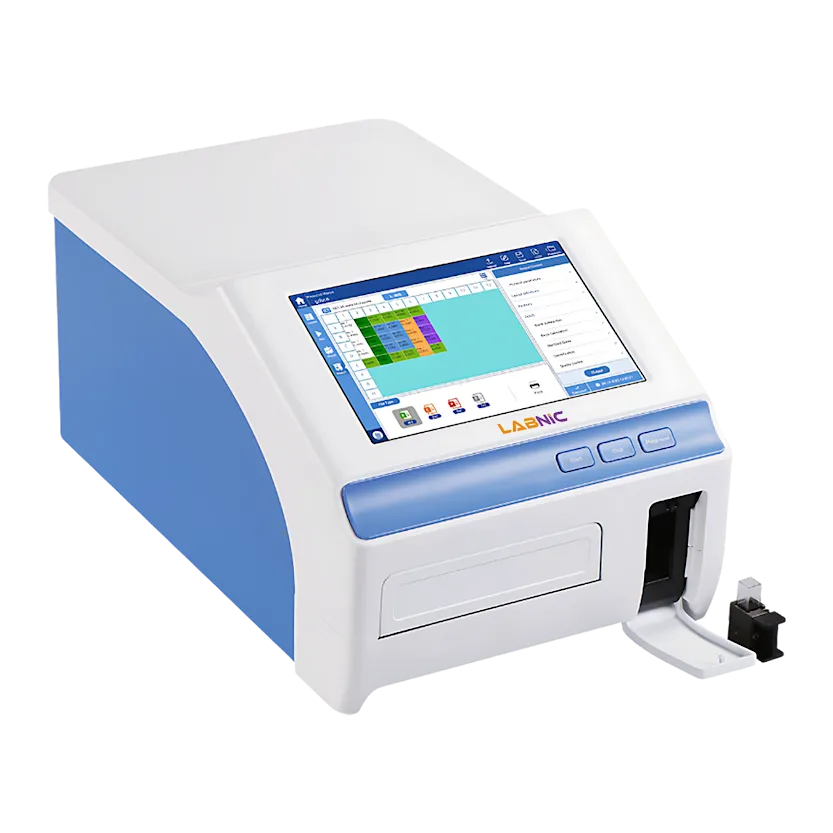

ELISA Microplate Reader LBN-MR165 is a monochromator-based UV-Visible microplate spectrophotometer covering the full 200–1000 nm wavelength range for high-precision absorbance analysis. It supports 96-well and 384-well plates with standalone 10-inch touchscreen operation, Android system control, and PC software integration. Equipped with a xenon flash lamp (>10⁹ flashes), dual silicon photodetectors, 1 nm wavelength resolution, and accurate photometric performance up to 4.0 OD. Integrated incubation from RT +4°C to 45°C with three-speed linear shaking and optional independent cuvette mode enables endpoint, kinetic, spectral scanning, and 4PL curve analysis. Our ELISA Microplate Reader is ideal for DNA/RNA quantification, protein analysis, ELISA assays, enzyme activity studies, cytotoxicity testing, microbial detection, and pharmaceutical research applications.
| Optical System | Monochromator-Based (Grating Monochromator) |
| Wavelength Range | 200 to 1000 nm |
| Wavelength Resolution | 1 nm |
| Wavelength Accuracy | ±2 nm |
| Wavelength Repeatability | 0.2 nm |
| Bandwidth | <2.5 nm |
| Light Source | Xenon Flash Lamp (>10⁹ Flashes) |
| Detection System | Dual Silicon Photodetectors |
| Reading Range | 0 to 4.0 OD |
| Linearity @450 nm | R² ≥ 0.999 (0 to 3.0 Abs) |
| Absorbance Accuracy | ±(1.0% + 0.003 Abs), ±2.0% |
| Absorbance Repeatability | CV <0.5% (Accurate), CV <1.0% (Fast) |
| Plate Compatibility | 96-Well & 384-Well Plates (With/Without Lids) |
| Measurement Modes | Endpoint, Kinetic, Spectral Scan, 4PL, Curve Fitting |
| Measuring Speed (96-Well) | <8 s (Fast), <28 s (Accurate) |
| Incubation Temperature | RT +4°C to 45°C |
| Temperature Uniformity | ±0.5°C @37°C |
| Shaking Function | Linear, 5/11/20 Hz |
| Cuvette Mode | Independent Slot, 200 to 1000 nm |
| Display | 10-inch Capacitive Touchscreen |
| Operating System | Android |
| Internal Storage | 16 GB (>20,000 Files) |
| Connectivity Ports | 1×USB-B, 2×USB-A, 1×Network |
| Data Transfer | USB, FTP, Direct PC Upload |
| Power Supply | DC 24 V, 6.67 A |
| Dimensions (W × D × H) | 300 × 500 × 260 mm |
| Weight | 15.5 kg |
Reader It II Advanced Software
U Nano Ultra Micro Plate
ABS Optical Validation Board
DC 24V Volt Adapter
USB Communication Cable
Built In Touchscreen Software
Reader It II PC Software
User Instruction Manual
Microplate Reader LBN-MR165 is ideal for ELISA, nucleic acid, protein, cytotoxicity, and enzyme activity studies in clinical labs, research institutes, food testing, and environmental laboratories for accurate diagnostics and quality control.
Microplate Reader LBN-MR165 is ideal for ELISA, nucleic acid, protein, cytotoxicity, and enzyme activity studies in clinical labs, research institutes, food testing, and environmental laboratories for accurate diagnostics and quality control.
Most Frequently Asked Questions
1. What are Microplate Readers used for?
Ans. Microplate Readers are used to analyze large numbers of samples efficiently in laboratory testing and research workflows.
2. What wavelength range is supported by Microplate Readers?
Ans. Microplate Readers operate within a wavelength range of 400 nm to 850 nm for versatile assay analysis.
3. What detection modes are available in Microplate Readers?
Ans. Microplate Readers support absorbance, fluorescence, and luminescence detection modes.
4. How do Microplate Readers support efficient data handling?
Ans. Microplate Readers include automated data collection to streamline analysis and improve workflow efficiency.
5. What software features are included in Microplate Readers?
Ans. Microplate Readers are equipped with built-in software for easy data analysis and result visualization.
6. How do Microplate Readers ensure measurement accuracy?
Ans. Microplate Readers provide precise temperature control to maintain consistent and accurate assay conditions.
ELISA Microplate Reader LBN-MR165 is a monochromator-based UV-Visible microplate spectrophotometer covering the full 200–1000 nm wavelength range for high-precision absorbance analysis. It supports 96-well and 384-well plates with standalone 10-inch touchscreen operation, Android system control, and PC software integration. Equipped with a xenon flash lamp (>10⁹ flashes), dual silicon photodetectors, 1 nm wavelength resolution, and accurate photometric performance up to 4.0 OD. Integrated incubation from RT +4°C to 45°C with three-speed linear shaking and optional independent cuvette mode enables endpoint, kinetic, spectral scanning, and 4PL curve analysis. Our ELISA Microplate Reader is ideal for DNA/RNA quantification, protein analysis, ELISA assays, enzyme activity studies, cytotoxicity testing, microbial detection, and pharmaceutical research applications.
