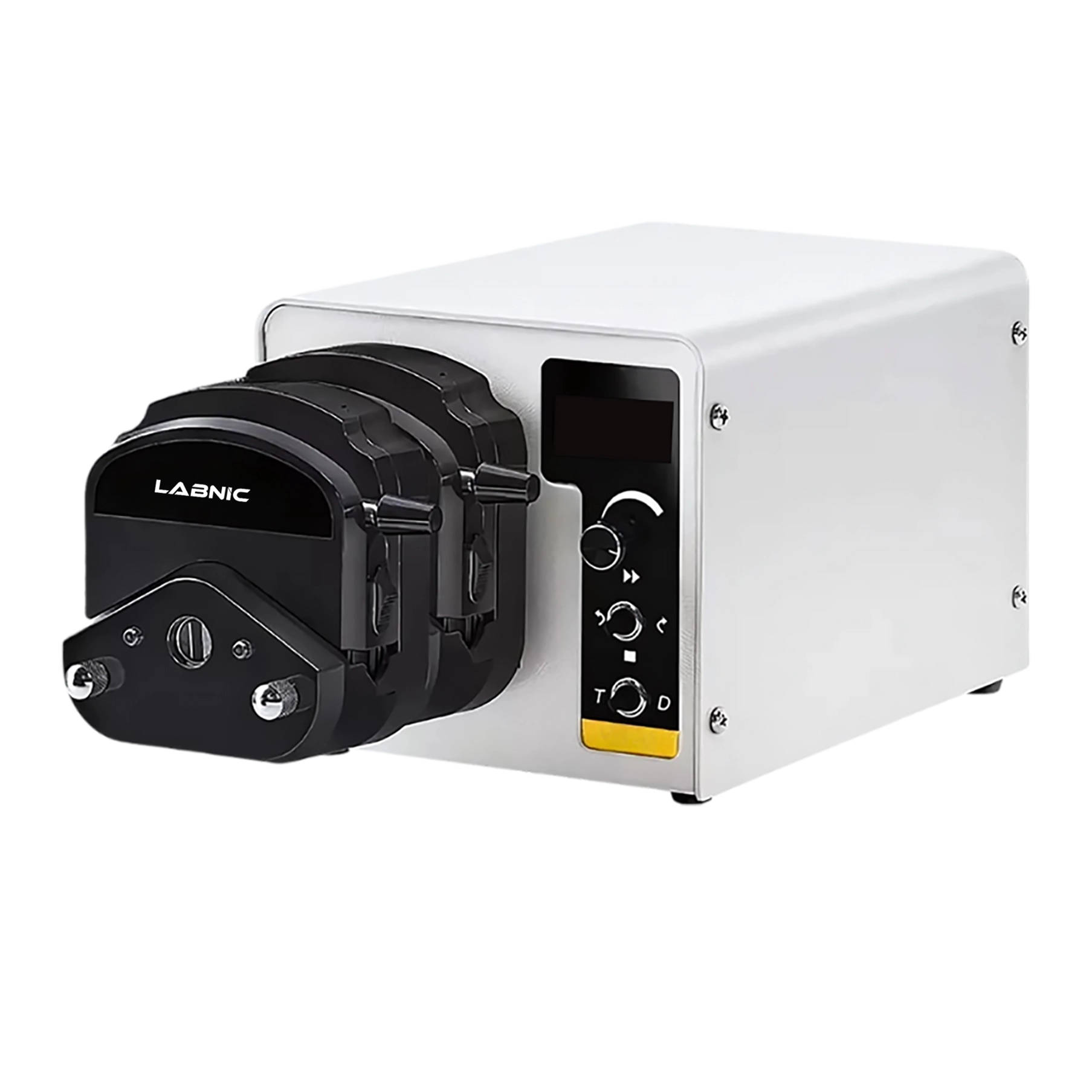

Digital Peristaltic Pump LBN-DP131 provides a back suction angle ranging from 10° to 720° for precise control over fluid withdrawal. It offers compatibility with multiple types of pump heads. Equipped with a full speed push knob for quick emptying or filling of pump tubing. Integrated with an LED display for real-time monitoring and analysis. Our Digital Peristaltic Pump supports analog control and foot control to ensure convenient operation.
| Max Speed | 600 rpm (Reversible) |
|---|---|
| Max Flow | 2280 mL/min |
| Speed Resolution | 0.1 rpm |
| Timing Range | 0.1s to 9999 min |
| Quantitative Range | 0.001mL to 9999 L |
| Filling Time | 0 to 9999 t |
| Back Suction Angle | 10° to 720° |
| Back Suction Speed | 10 to 300 rpm |
| Display | Colour LCD Display |
| Power Consumption | < 50W |
| Power Supply | AC 110/220 ± 10% |
| Dimension | 263 × 184 × 147.7 mm |
| Weight | 4.94 kg |
Dry Running Capability
External Control Operation
Easy Calibration
Multiple Operation Modes
No Contamination<strong> </strong>
Digital Peristaltic Pump LBN-DP131 is widely used in applications such as chemical dosing, pharmaceutical manufacturing, water treatment, and precise fluid dispensing in laboratory settings.
