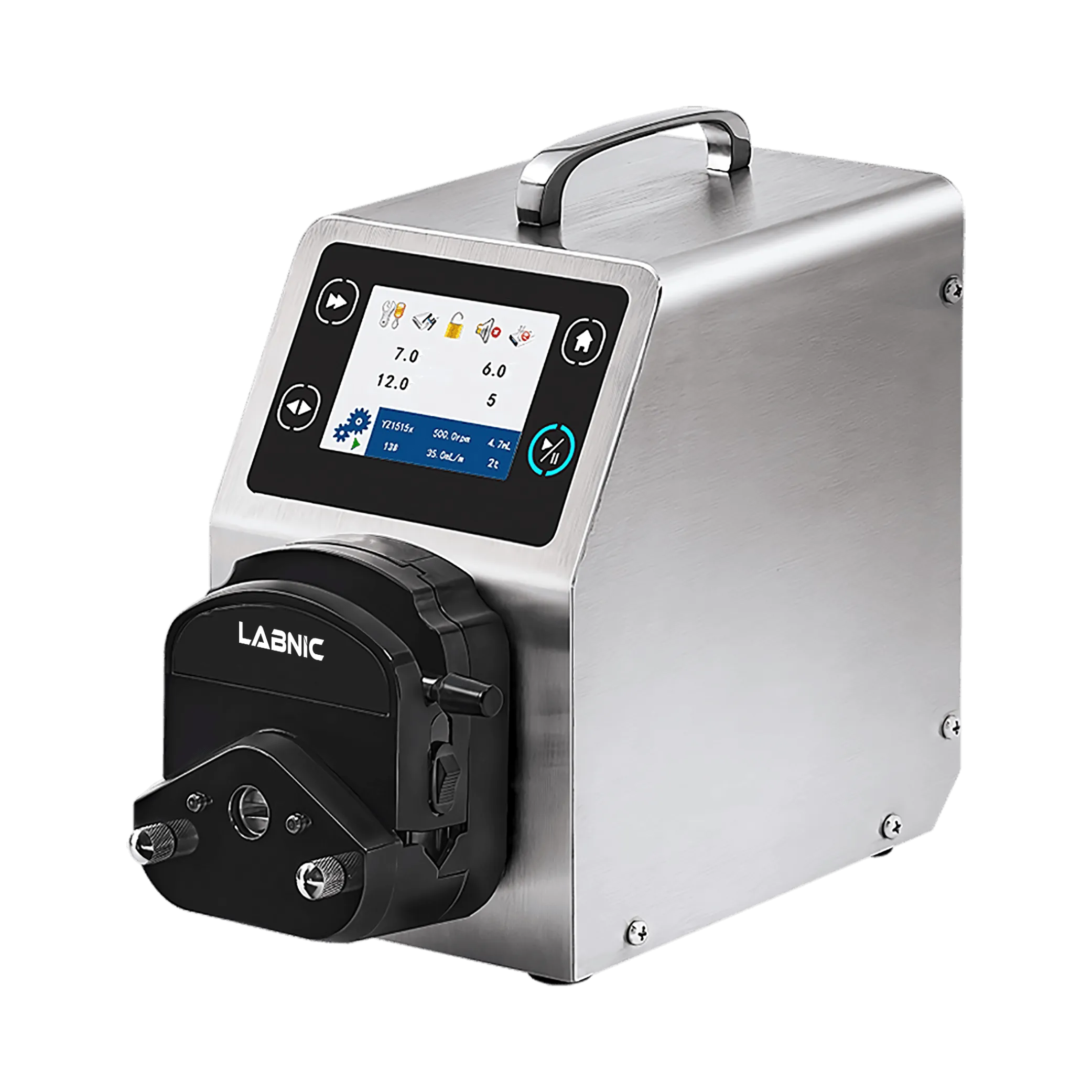

Digital Peristaltic Pump LBN-DP133 delivers leak-free dispensing through adjustable back suction speed, ranging from 10 to 300 rpm. It operates at a maximum flow rate of 2280 mL/min for efficient fluid transfer. Equipped with LCD touchscreen display for easy control and monitoring. Integrated with multiple modes for precise transmission and distribution. Our Digital Peristaltic Pump is an ideal choice for both laboratory and industrial handling needs.
| Max Speed | 600 rpm (Reversible) |
|---|---|
| Max Flow | 2280 mL/min |
| Speed Resolution | 0.1 rpm |
| Speed Mode | Touchscreen Adjustment |
| Timing Range | 0.1 seconds to 9999 minutes |
| Quantitative Range | 0.001 mL to 9999 L |
| Filling Times | 0 to 9999 times |
| Back Suction Angle | 10° to 720° |
| Back Suction Speed | 10 to 300 rpm |
| Start Control | 0 to 5V |
| Direction Control | 0 to 10V |
| Speed Control | 4 to 20mA (Optional) |
| Display | Colour LCD Display |
| Power Consumption | < 50W |
| Power Supply | AC100 to 240V, 50 Hz/60 Hz |
| Dimension | 215 ×136 × 236 mm |
| Package Dimension | 410 × 260 × 360 mm |
| Net Weight | 4.94 kg |
| Gross Weight | 8 kg |
Adaptability With Multiple Pump Heads
Power Off Memory
External Control Operation
Tubing Compatibility
Data Storage
Silicone Tube (10 meter)
Pump Head- 1pc
Silicone Tube (2 Meter)- 1Pc
Plastic Connector- 4Pcs
Foot Switch- 1Pc
Power cable-1Pc
Digital Peristaltic Pump LBN-DP133 is used for accurate and contamination-free transfer, dosing, and dispensing of liquids in laboratories, pharmaceutical production, food processing, and industrial fluid management.
