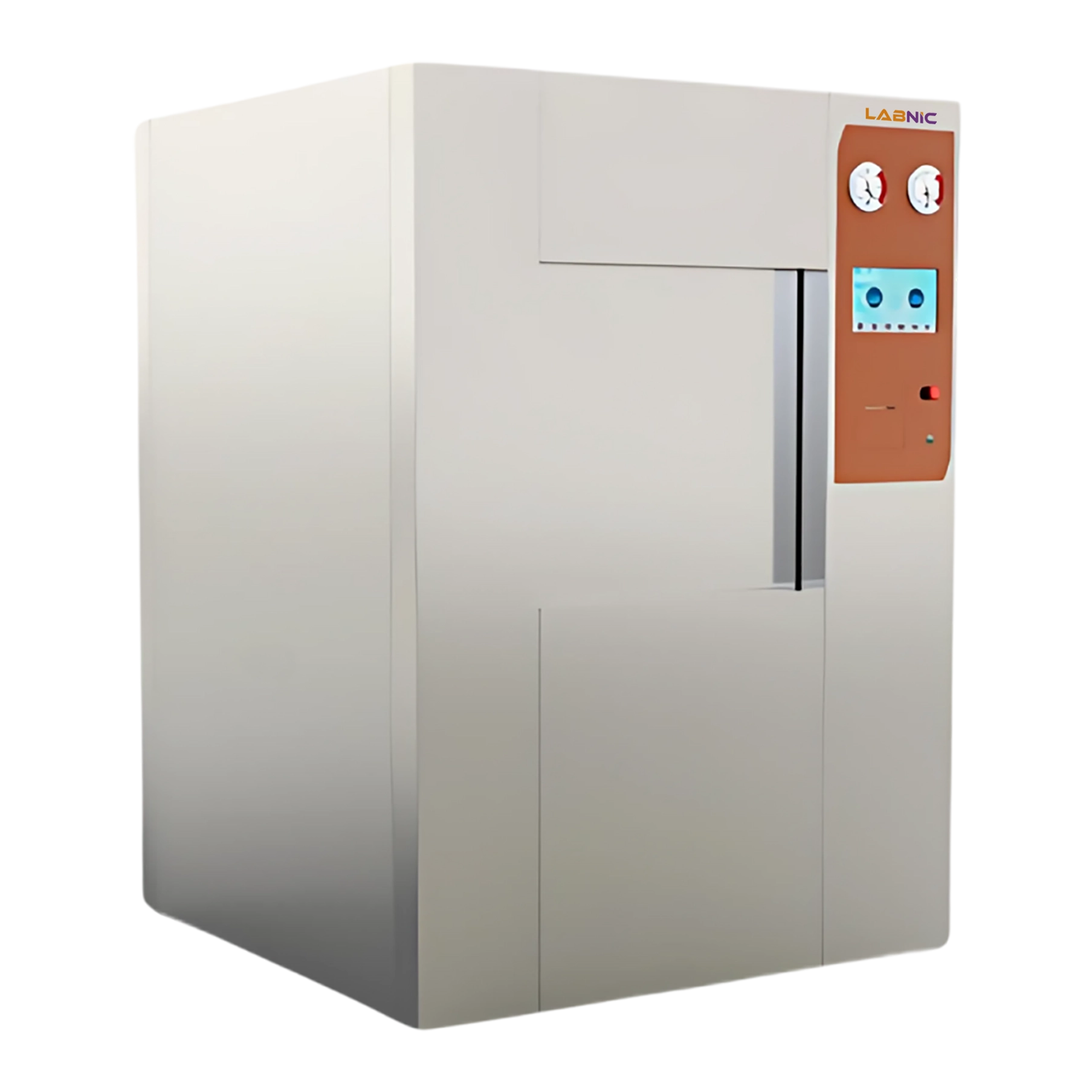

Horizontal Autoclave LBN-CH157 Catalog

Horizontal Autoclave LBN-CH157 is designed with maximum operating temperature 138℃. It features a high capacity 500L chamber and a horizontal cylindrical design for smooth loading and optimal performance. Equipped with a microprocessor-controlled system, it automates steam generation, sterilization cycles, drying, and safety functions. Built-in safety mechanisms include over-pressure protection, door interlock, and power cut-off during low water conditions. Our Horizontal Autoclave is ideal for sterilizing medical instruments, culture media, glassware, dressings, and other heat-resistant applications.

Volume	600 Liters
Sterilization Temperature	121℃ to 134℃
Adjustable Temperature Range	150℃
Working Pressure	0.25MPa
Temperature Control Accuracy	±0.2°C
Temperature Uniformity	±1°C
Container Design Life	10 Years or 20,000 Sterilization Cycles
Inner Chamber Material & Pressure Rating	0.1 to 0.3MPa
Jacket Material & Design Pressure	0.3MPa
Inner Chamber Safety Valve Opening Pressure	0.28MPa
Jacket Safety Valve Opening Pressure	0.28MPa
Inner Chamber Hydrostatic Test Pressure	0.39 MPa
Jacket Test Pressure	0.5 MPa
Temperature Display Accuracy	0.1°C
Pressure Display Accuracy	0.1 KPa
Pulsating Mode	Multiple Negative Pressure + Trans-Pressure + Positive Pressure Pulsations
Vacuum Pulsation Amplitude and Cycles	Amplitude -80 to 0KPa, Times 1~99
Trans-Pressure Pulsation	Amplitude -80 to 80KPa, Times 1
Positive Pressure Pulsation	1 to 3
Flash Vacuum Drying	Fabric Moisture Gain ≤ 0.6%, Utensils ≤ 0.1%
Ultimate Vacuum	-96 Kpa
Vacuum Leak Rate	≤0.13KPa/min
Built-in Steam Generator (Optional)	0.3 MPa

Large Capacity Chamber

Fully Automatic Operation

Over-Pressure Protection

User-Friendly Interface

Compact Design

Our Horizontal Autoclave is ideal for sterilizing medical instruments, culture media, glassware, dressings, and other heat-resistant applications.
