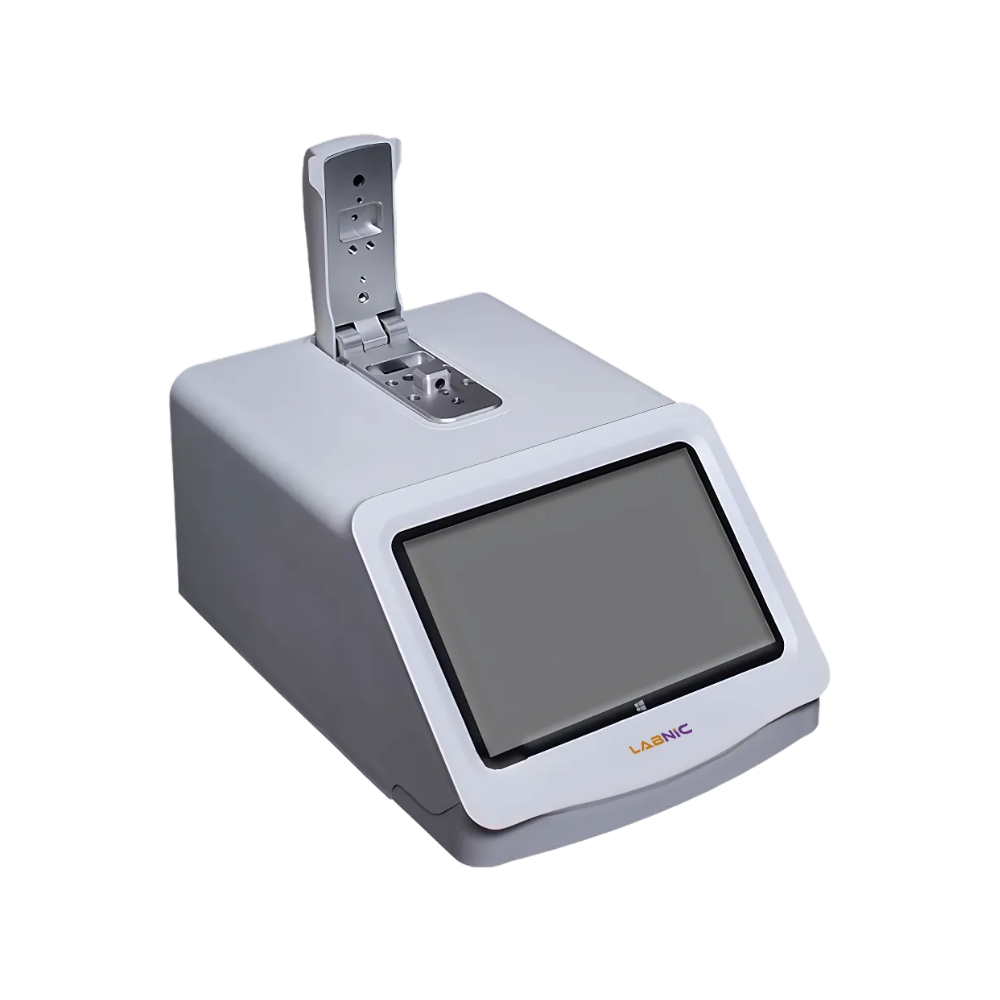

Micro Spectrophotometer LBN-MS161

Overview

Micro Spectrophotometer LBN-MS161 operates at an optical range from 190 to 1100 nm. It offers measurement for low sample volumes down to 0.3 μL. Equipped with a user-friendly touchscreen interface and intuitive software. Designed with USB and Wi-Fi connectivity for seamless data export and sharing. Our Micro Spectrophotometer is portable making it suitable for labs with limited bench space.

Specifications :

Optical Path	1, 0.5, 0.05 mm Automatic Conversion
Wavelength Scanning Range	190 to 850 nm
Wavelength Accuracy	± 1 nm
Wavelength Resolution	2 nm (FWHM Hg 546 nm)
Optical Range	190 to 1100 nm
Absorbance Range	0.002 to 300 Abs
Absorbance Accuracy	0.002 Abs
Sample Volume	0.3 to 2 μl
Nucleic Acid Range	0.4 to 15000 ng/pl (dsDNA)
Protein Range	0.01 to 400 mg/ml (BSA)
Light Source	Xenon Lamp
Detector	3864 Linear CCD Array
Detection Time	> 3s
Dimension	200 × 300 × 200 mm
Weight	3.5 kg

Features :

• Detection System
• Rapid Analysis
• Auto-Calibration
• Robust Design
• Multi-Mode Functionality
• Wide Wavelength Range

Applications :

Micro Spectrophotometer LBN-MS161 is used for sample analysis and quantification in fields like molecular biology, biochemistry, physics, chemistry, material science, engineering, environmental testing and many others.
