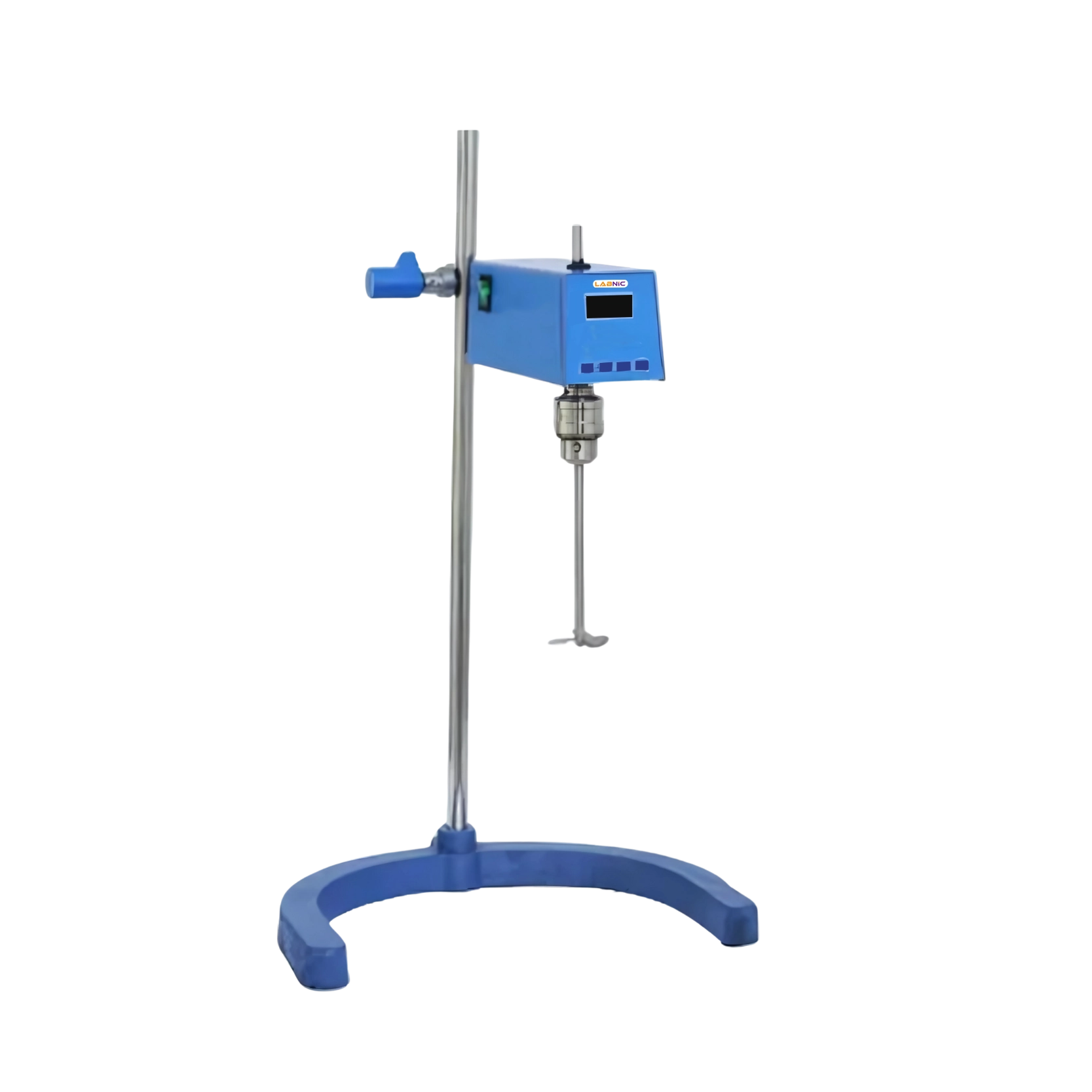

Overhead Stirrer LBN-OS177 ensures precise and controlled mixing with its microprocessor control system. Equipped with a digital display, it enables real-time monitoring and accurate adjustments. Incorporated with a robust structure and simple operation, it offers user-friendly functionality. Built-in with a speed range of 60 to 1500 RPM, it provides consistent performance. Our Overhead Stirrer is essential for laboratories, research facilities, chemical industries, and biotechnology fields.
| Stir Speed Range | 60 to 1500 RPM |
|---|---|
| Stirring Volume (Water) | 40 L |
| Timer | 0 to 9999 Min |
| Motor Type | Brushless DC Motor |
| Motor Torque | 450m N.M |
| Stir Rod Length | 350 mm (Standard) |
| Stir Rod Material | SS 304 |
| Holder Length | 700 mm |
| Speed Control System | Micro-processor control |
| Digital Display | LCD |
| Chuck Clamping Range | Ø 1.5 to 10 |
| Motor Power | 100 W |
| Power Supply | 220 V / 110 Optional |
| Dimension (CM) | 69 × 39 × 20 |
| Gross Weight | 11.5 kg |
Brushless DC motor
FWD time 1 second
REV time 3 seconds
Interval time maximum 255 seconds
Time range maximum 9999 minutes
Acceleration unit RPM/second
Overhead Stirrer LBN-OS177 is essential for laboratories, research facilities, chemical industries, pharmaceuticals, petrochemicals, cosmetics, healthcare, food, and biotechnology fields.
