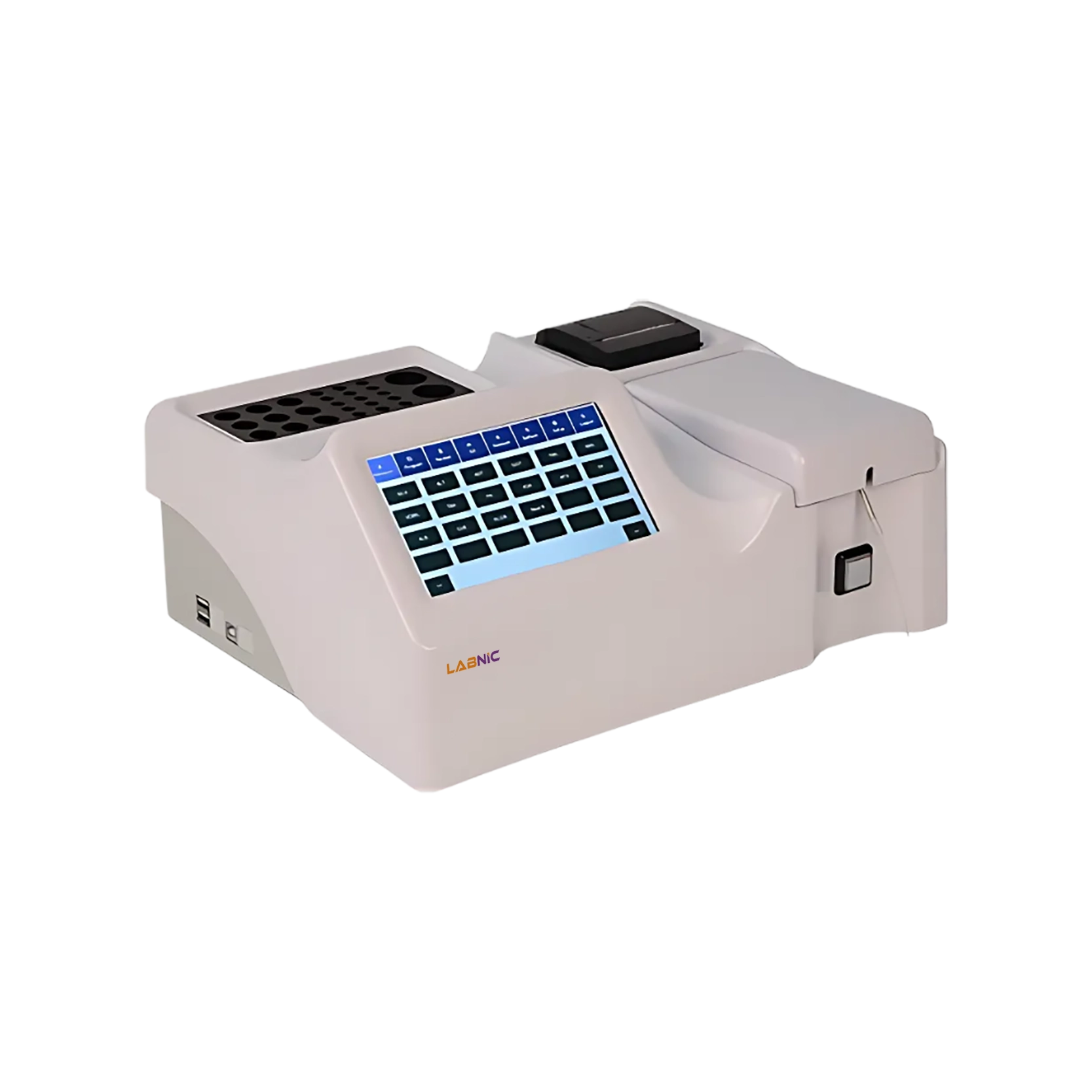

Semi-Biochemistry Analyzer LBN-SA161 Catalog

Semi-Biochemistry Analyzer LBN-SA161 delivers dependable biochemical testing using multiple analytical methods including endpoint, kinetics, fixed-time, and coagulation analysis. It features a color touchscreen interface with an open reagent system for flexible laboratory operation. Equipped with a tungsten halogen lamp and wavelength filters from 340 to 630 nm for accurate photometric results. Integrated built-in multifunction incubator with selectable temperature settings and large data storage capacity of up to 190,000 results. Our Semi-Biochemistry Analyzer is ideal for clinical laboratories, diagnostic centers, hospitals, and research facilities.

Analytical Methods	End-point, 2-point (sample blank), Kinetics, Fixed-time, Coagulation
Wavelength Filters	340, 405, 450, 505, 546, 578, 630 nm
Optional Filters	2 additional (optional)
Wavelength Accuracy	±2 nm
Light Source	Tungsten Halogen Lamp
Lamp Power Consumption	10 W
Photometric Accuracy	0–2 A, 0.001 Abs
Repeatability	< 1%
Stability	< 0.005 Abs / 10 min
Linearity	0–1.5 A ≤ 1.0%
Temperature Settings	25°C, 30°C, 37°C, Room Temperature
Incubator Type	Built-in Multifunction Incubator
Incubator Temperature	37°C
Memory Capacity	≥ 190,000 Results
Display	Color LCD Touch Screen
Printer	Built-in Thermal Printer
Interfaces	1 × Ethernet, 4 × USB
Operating Temperature	8–39°C
Operating Humidity	≤ 90%
Power Supply	110–230 VAC, 50–60 Hz
Power Adapter	External Universal SMPS
Carton Dimensions (W×D×H)	400 × 310 × 220 mm
Weight	8 kg

Open Reagent System

Color Touchscreen Operation

Built-In Multifunction Incubator

High-Capacity Data Storage

Ethernet Network Connectivity

Multiple Analytical Modes

Compact Bench-Top Design

Semi-Biochemistry Analyzer LBN-SA161 is commonly used in pharmaceutical, food industries, clinical diagnostics and biomedical research for biochemical analysis and quality control.
