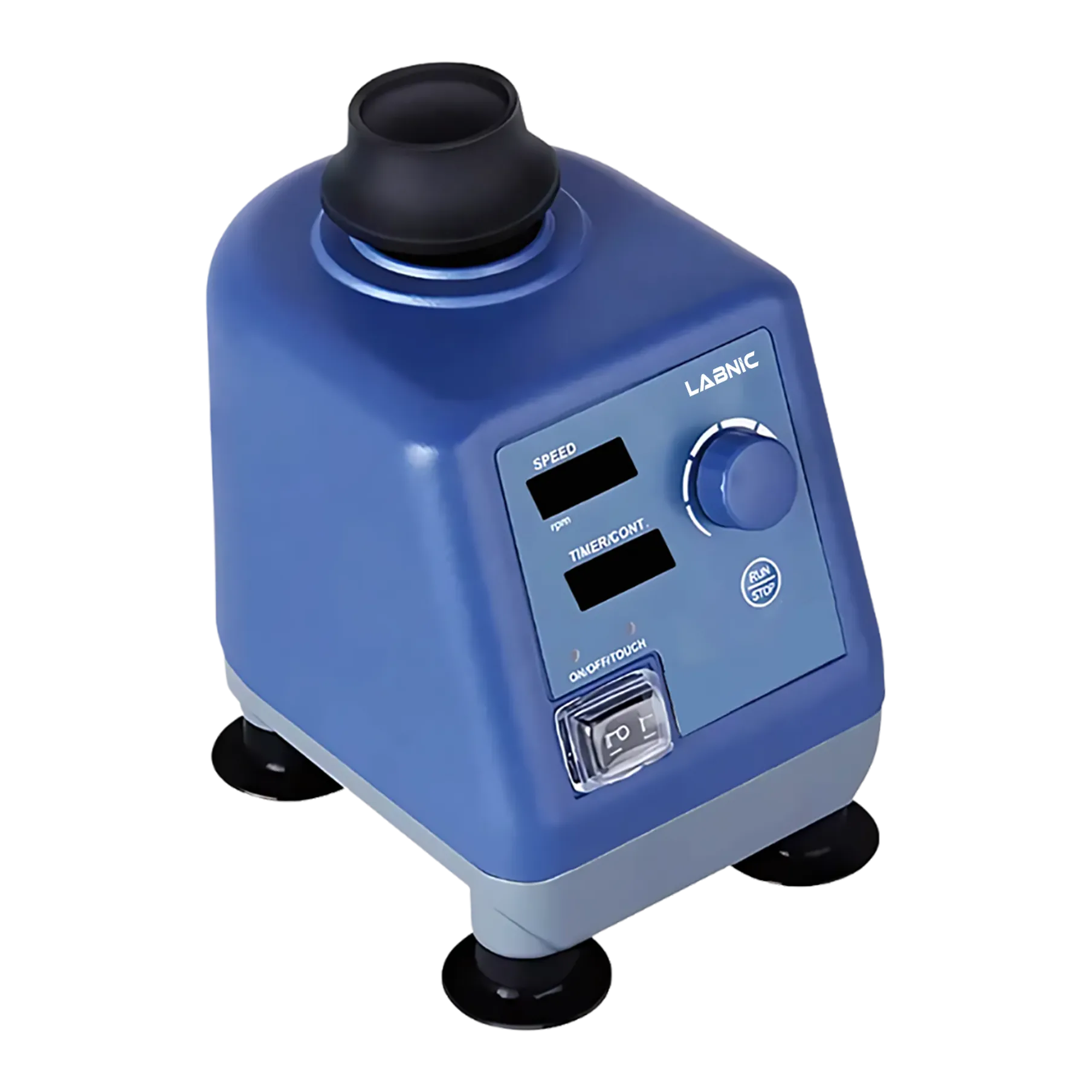

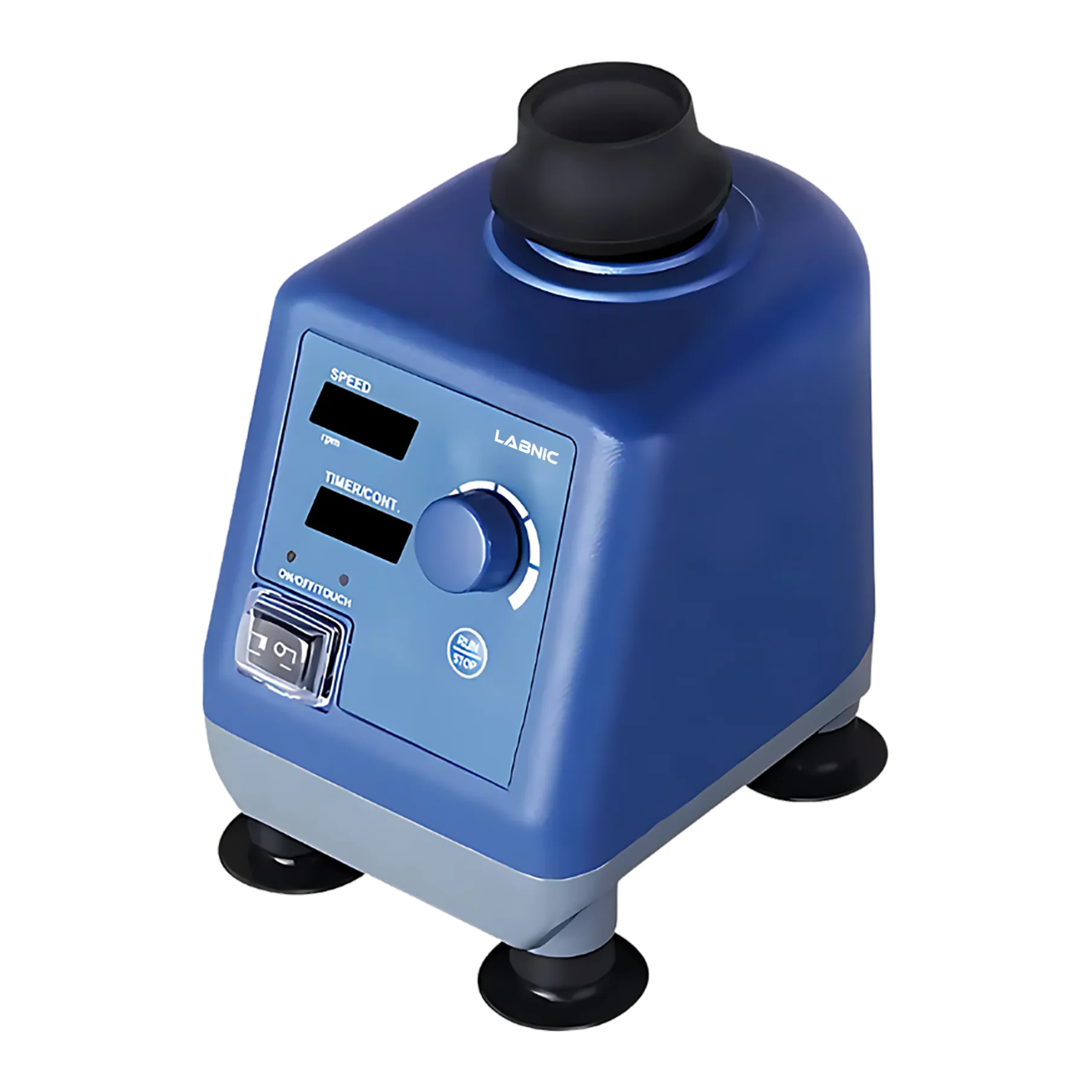

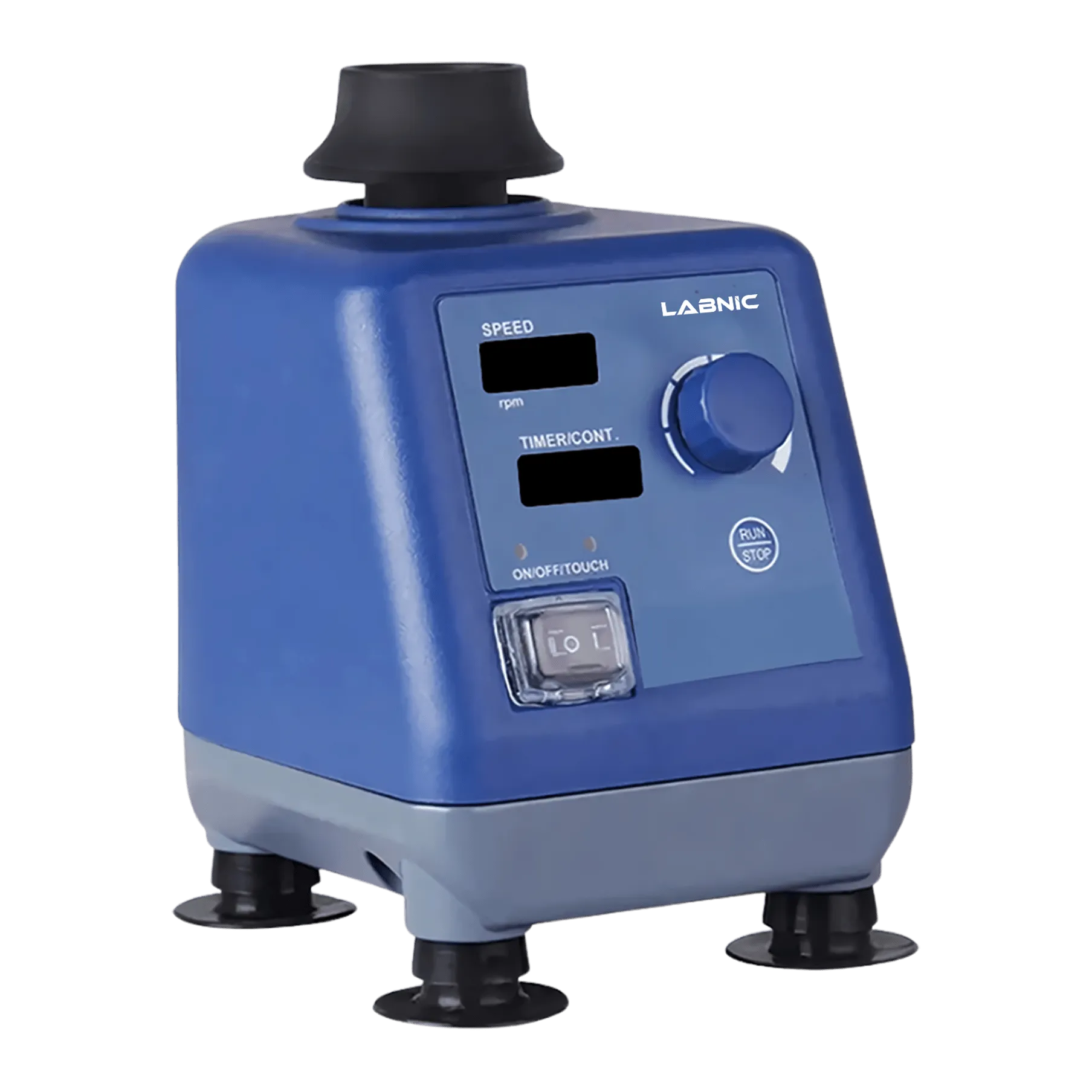

Digital Vortex Mixer LBN-DV151 is equipped with a rotary dial for speed and time selection. The mixer has three operating modes: touch, timed and continuous modes and a three-way switch to change the operational modes with parameters being displayed on LED screen. Mixer operates up to a speed of 3000 rpm making 50 ml sample containers mix within 3 seconds ensuring accurate results. Metallic base and dynamic balancing eliminates any movements and dampens vibrations while mixing.
| Movement | Continuous/ touch operation |
| Orbital Diameter | 6 mm |
| Speed | 400 – 3000 rpm |
| Ambient Temperature | 5° to 40°C |
| Relative Humidity | 0.8 |
| Display | LED |
| Motor Rating Input | 30 W |
| Motor Rating Output | 15 W |
| Power | 36 W |
| Power Supply | 100 – 240V |
| Frequency | 50 – 60 Hz |
| Dimension (W × H × D) | 107 × 146 × 166 mm |
| Weight | 3 Kg |
Continuous Touch function
Orbital diameter of 6 mm
Fixed speed up to 3000 rpm
Excellent mixing capability within 3 seconds
Compact and convenient to use
LED display for easy reading of parameters
Brushless DC motor and sturdy iron/aluminum casting base
USB interface for charging devices
Low operation voltage for full protection
Precise speed control
Built-in light indicator varies with battery level and working status
Vortex Mixer is used in re-suspending liquids, mixing reagents, buffers and emulsions, drug extractions and mixing samples etc. at clinical laboratories, medical centers, hospitals, pharmaceutical labs and biotechnology industries etc.
Download Catalog for Digital Vortex Mixer LBN-DV151
Download
Capacity : 50 ml × 4 / 15 ml × 9 / 5 to 10 ml × 12 / 2 ml × 24
Speed Range : Touch: 0 to 3000 rpm, Run: 200 to 3000 rpm
Amplitude : 4.5 mm circular oscillation
Temperature : 5 to 40 ℃，80 %RH
Capacity : 50 ml × 4 / 15 ml × 9 / 5 to 10 ml × 12 / 2 ml × 24
Speed Range : Touch: 0 to 3000 rpm, Run: 100 to 3000 rpm
Amplitude : 4.5 mm circular oscillation
Temperature : 5 to 40 ℃，80 %RH
Capacity : 50 ml
Speed Range : 0 to 3000 rpm
Control Method : Knob speed regulation
Shaking Orbit : 4.5 mm (circle)
Movement : Orbital
Orbital Diameter : 6 mm
Speed : 5600 rpm
Ambient Temperature : 5° to 40°C
Capacity : 50 ml
Speed Range : 3000 rpm
Control Method : Constant speed
Shaking Orbit : 4.5 mm (circle)
Speed Range : 500 to 3000 rpm
Sample Capacity : 50
Amplitude : 4 mm
Shaking Mode : Horizontal Swing
Movement : Continuous/ touch operation
Orbital Diameter : 6 mm
Speed : 0 – 3000 rpm
Ambient Temperature : 5° to 40°C
