Stereo Microscope LBN-SM122
Stereo Microscope LBN-SM122

Stereo Microscope LBN-SM122

www.labnic.com | info@labnic.com

Overview

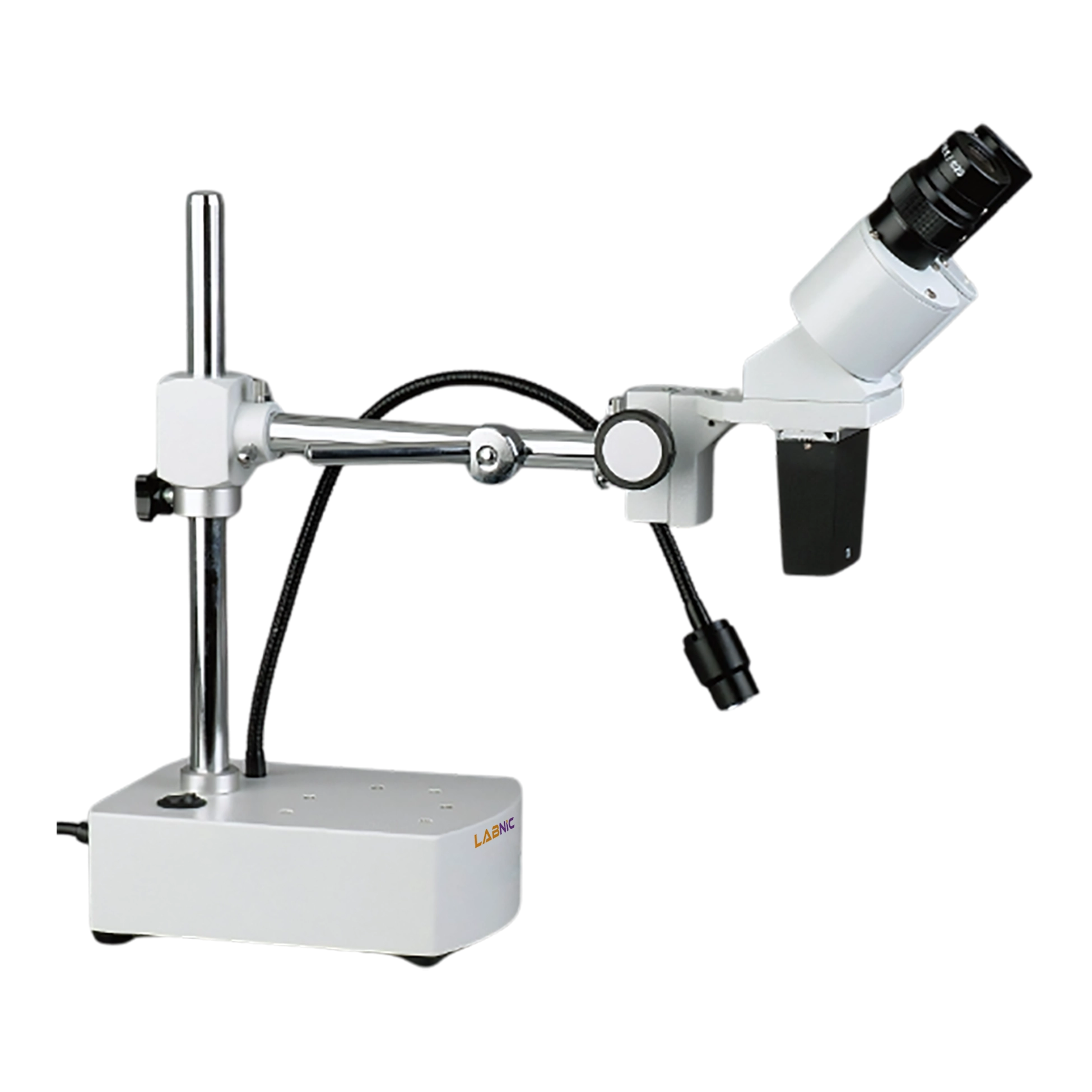

Stereo Microscope LBN-SM122 consists of a Greenough optical system with a Siedentopf binocular head type of 45° inclination. It is constructed with a pillar boom single-arm stand and offers a wide range of zoom magnification via the eyepiece and its rotational objective. It consists of an LED light source with a gooseneck LED reflector. The microscope features an adjustable left diopter.

Specifications :
Optical System Greenough
Standard Magnification 10x
Head Type Siedentopf Binocular
Rotation Fixed
Interpupillary 55-75mm
Diopter Left Tube Adjustable
Eyepiece WF10x, 2 Pcs
Diameter 30 mm
Objective CMO Stereo
Magnification 1.0x
Focusing Type Coarse Focus only
Light Source LED
Reflect Light Gooseneck LED
Stereo Stand Boom Stand Single Arm
Power Supply AC110V
Working Distance 230 mm
Weight 7/5 Kg
Dimensions (L × D × H) 410 × 200 × 430 mm
Features :
  • It consists of Greenough optical system
  • Siedentopf binocular head type
  • Gooseneck LED reflector
  • It consists of a left tube head diopter, adjustable
  • Focuses on coarse specimens only
  • Boom stand single arm stand type
  • It is simple, safe, reliable, and easy to operate
Applications :

Stereo Microscope is used for the research analysis of samples in the fields of metallurgy, zoology, biological, medical institutes, health clinics, etc.
