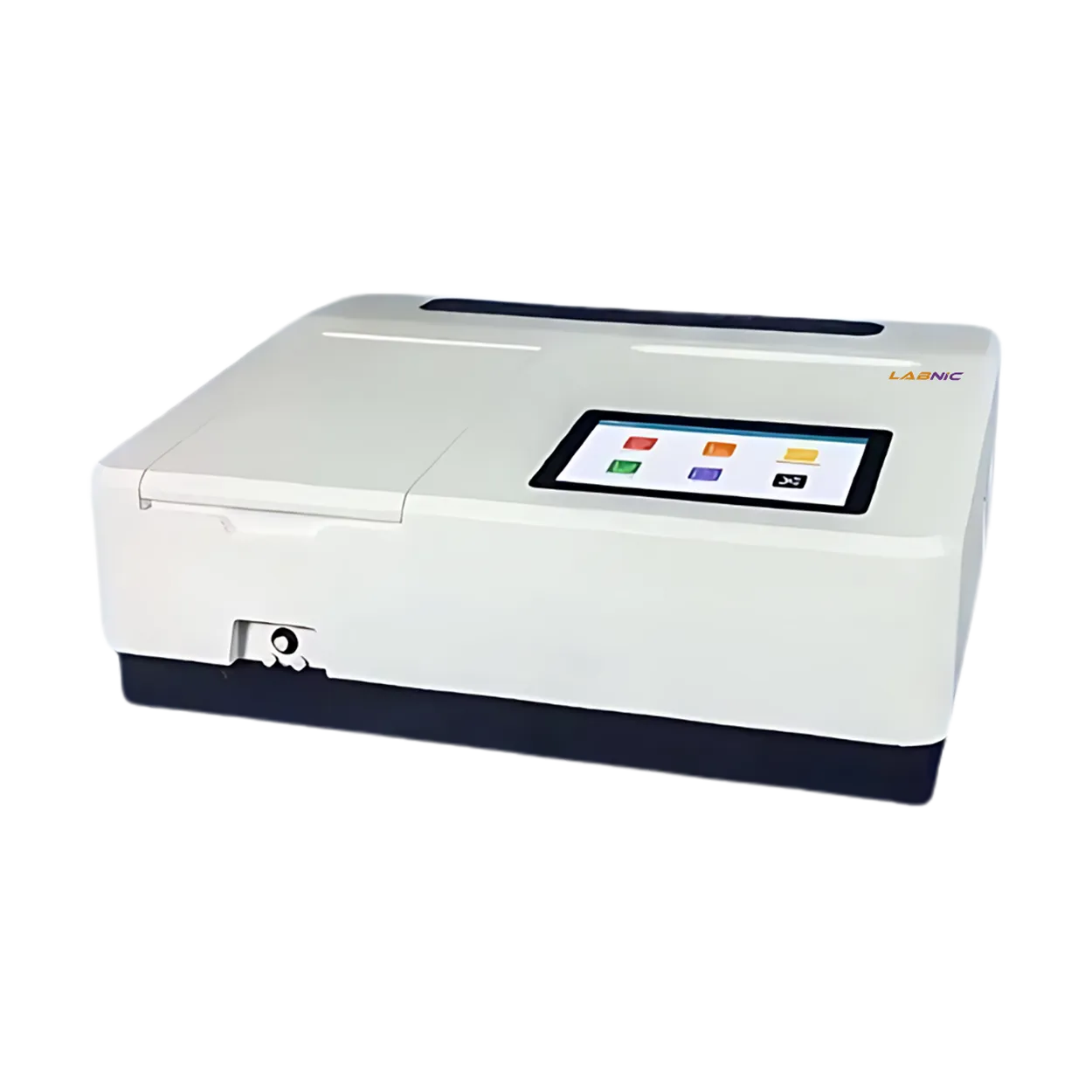

UV-Visible Spectrophotometer LBN-UV134 offers a wide wavelength range of 190 to 1100 nm enabling comprehensive flexible sample handling. It features a thickened and reinforced base that enhances optical path stability and measurement accuracy. Equipped with USB, printing, and Bluetooth capabilities, it supports flexible data transfer. Our UV-Visible Spectrophotometer is ideal for medical science, life science, pharmaceutical and healthcare applications.
| Optical System | 1200 line/mm Grating, |
|---|---|
| Spectral Bandwidth | 2.0 nm |
| Wavelength Range | 190 to 1100 nm |
| Wavelength Accuracy | ± 0.4 nm (± 0.1 nm @ D656.1) |
| Wavelength Repeatability | Less than 0.1 nm |
| Photometric Range | 0 to 200% T, -4.0 to 4.0A, 0 to 9999.9C |
| Photometric Accuracy | ± 0.002A (0 to 0.5Abs), ± 0.004A (0.5 to 1.0Abs), ± 0.3% (T=0 to 100%) |
| Photometric Repeatability | ± 0.001A (0 to 0.5Abs), ± |
| Stability | ± 0.0005 A/h 500 nm |
| Stray Light | Less than 0.04 T 360 nm; 220 nm |
| Display | 1024 × 600, 7-inch Touch Screen |
| Light Source | Deuterium Lamp, Tungsten Lamp |
| Detector | Silicon Photodiode |
| Environmental Temperature | 10 to 35 |
| Relative Humidity | 35 to 85% |
| Noise | ± 0.001Abs |
| Power Supply | 220V(110V), 50Hz(60Hz) |
| Instrument Dimensions | 450 × 350 × 180 mm |
| Gross Weight | 15kg |
Built in Data Storage
Multi-User Access Control
User-Friendly Interface Design
Compact and Robust Construction
Low Maintenance Requirements
UV-Visible Spectrophotometer LBN-UV134 is ideal for medical science, life science, pharmaceutical and healthcare applications.
