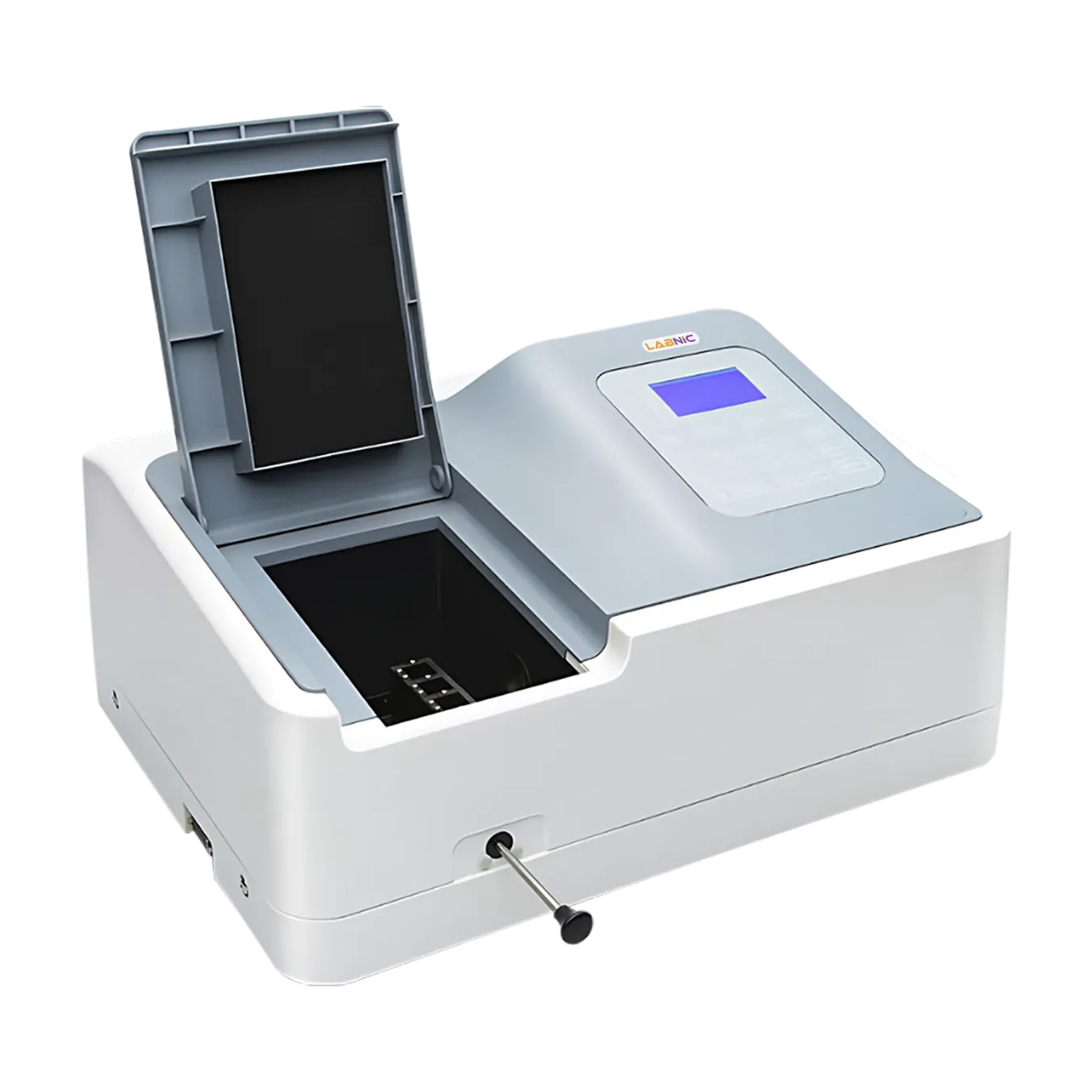

UV-Visible Spectrophotometer LBN-UV134 offers a wide wavelength range of 190 to 1100 nm enabling comprehensive flexible sample handling. It features a thickened and reinforced base that enhances optical path stability and measurement accuracy. Equipped with USB, printing, and Bluetooth capabilities, it supports flexible data transfer. Our UV-Visible Spectrophotometer is ideal for medical science, life science, pharmaceutical and healthcare applications.
| Optical System | 1200 line/mm Grating, |
| Spectral Bandwidth | 2.0 nm |
| Wavelength Range | 190 to 1100 nm |
| Wavelength Accuracy | ± 0.4 nm (± 0.1 nm @ D656.1) |
| Wavelength Repeatability | Less than 0.1 nm |
| Photometric Range | 0 to 200% T, -4.0 to 4.0A, 0 to 9999.9C |
| Photometric Accuracy | ± 0.002A (0 to 0.5Abs), ± 0.004A (0.5 to 1.0Abs), ± 0.3% (T=0 to 100%) |
| Photometric Repeatability | ± 0.001A (0 to 0.5Abs), ± |
| Stability | ± 0.0005 A/h 500 nm |
| Stray Light | Less than 0.04 T 360 nm; 220 nm |
| Display | 1024 × 600, 7-inch Touch Screen |
| Light Source | Deuterium Lamp, Tungsten Lamp |
| Detector | Silicon Photodiode |
| Environmental Temperature | 10 to 35 |
| Relative Humidity | 35 to 85% |
| Noise | ± 0.001Abs |
| Power Supply | 220V(110V), 50Hz(60Hz) |
| Instrument Dimensions | 450 × 350 × 180 mm |
| Gross Weight | 15kg |
UV-Visible Spectrophotometer LBN-UV134 is ideal for medical science, life science, pharmaceutical and healthcare applications.
UV-Visible Spectrophotometer LBN-UV134 is ideal for medical science, life science, pharmaceutical and healthcare applications.
Most Frequently Asked Questions
1. What are UV-Visible Spectrophotometers used for?
Ans. UV-Visible Spectrophotometers are used for precise optical measurements to analyze sample absorbance and detect contaminants.
2. How do UV-Visible Spectrophotometers ensure reliable measurement results?
Ans. UV-Visible Spectrophotometers deliver accurate and stable optical performance for consistent and dependable analysis.
3. How do UV-Visible Spectrophotometers support early contamination detection?
Ans. UV-Visible Spectrophotometers enable early stage contamination detection through sensitive absorbance measurement.
4. What design features support efficient laboratory workspace usage?
Ans. UV-Visible Spectrophotometers feature a compact footprint that helps optimize laboratory bench space.
5. What sample handling features are included in UV-Visible Spectrophotometers?
Ans. UV-Visible Spectrophotometers include large sample chambers for easy handling and quick sample replacement.
6. Where are UV-Visible Spectrophotometers commonly used?
Ans. UV-Visible Spectrophotometers are commonly used in clinical examination, medical industries, biochemistry laboratories, and research institutes.
