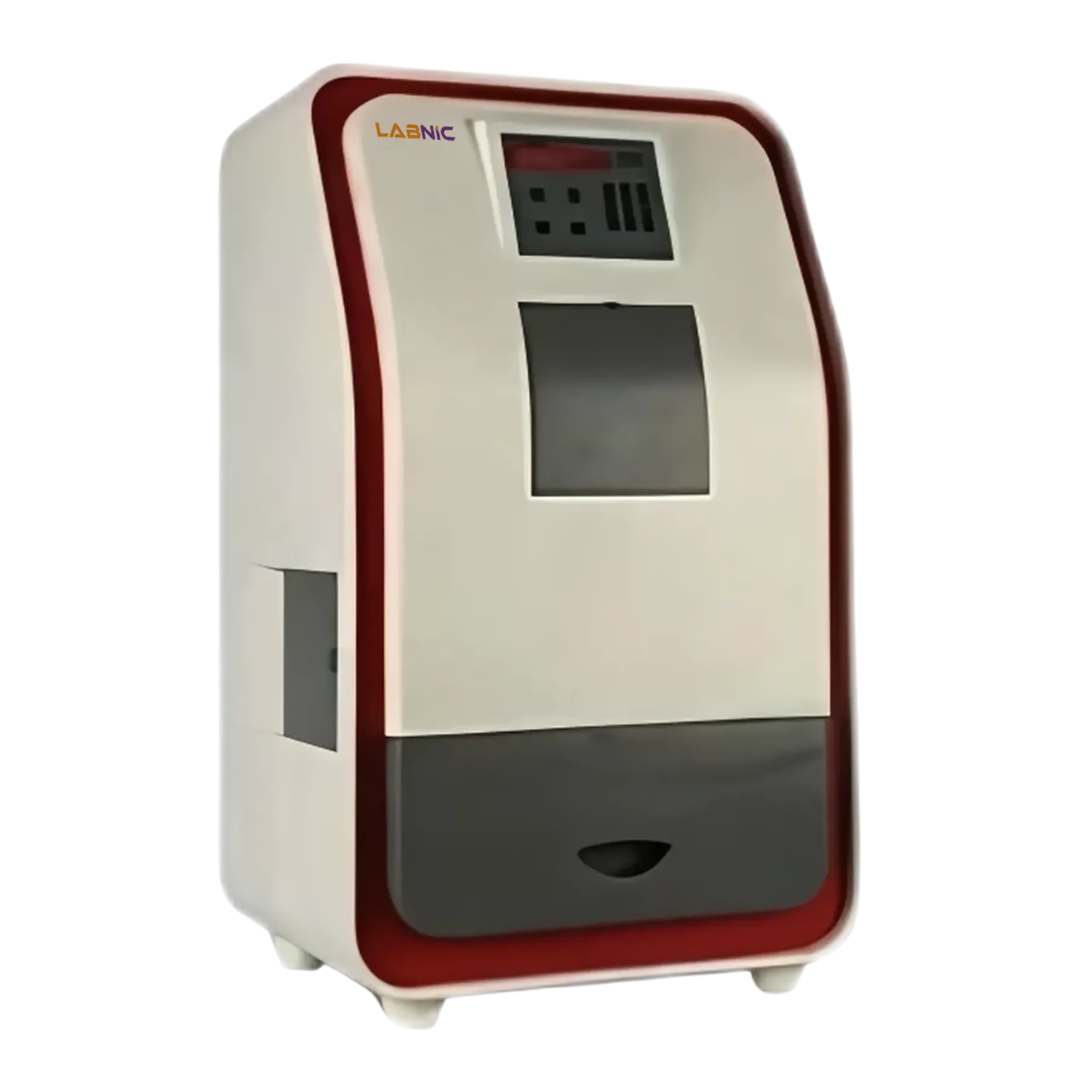

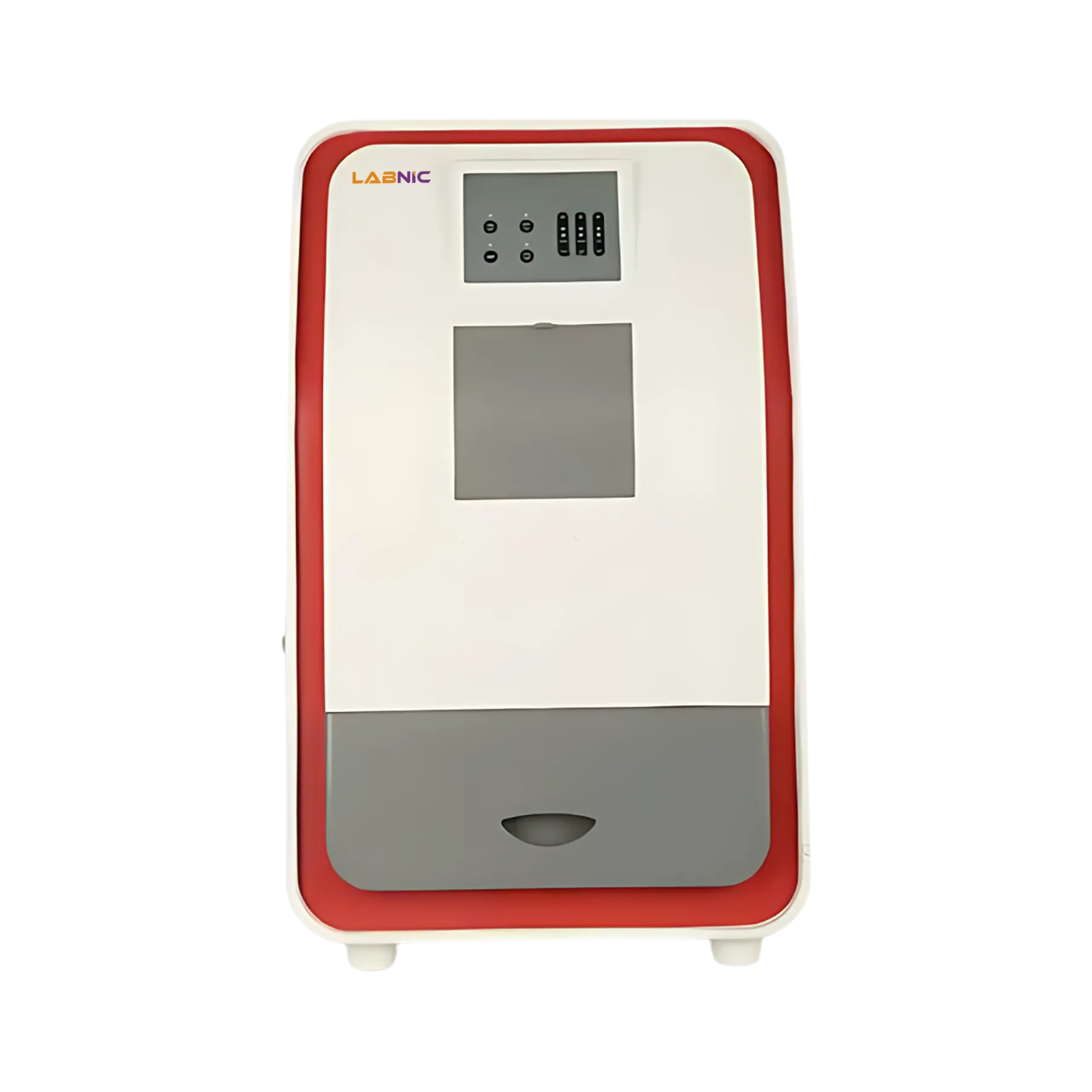

Gel Document System LBN-GDS110 features a 6-megapixel scientific-grade CCD camera with motorized zoom and a built-in 302 nm UV transilluminator. It supports high-resolution imaging for DNA, RNA, and protein gels with auto-focus precision. Equipped with JP-Gel software, enabling image enhancement, quantification, and export in JPG/TIFF formats. Integrated with a motorized filter wheel, white and blue light options, and USB/LAN connectivity, offering flexible operation and efficient data handling. Our Gel Document System is ideal for electrophoresis imaging in molecular biology, research, and clinical laboratories.
| CCD Chip | 1/2.5 |
| Dynamic Range | 4.5 OD, 16-Bit Grayscale |
| Minimum DNA Detection | < 20 Pg EB-Stained DsDNA |
| Sensitivity | ≥ 0.01 Ng EB-Stained DNA |
| Signal-To-Noise Ratio | ≥ 56 dB |
| Pixel Size | 5.7 µm × 4.28 µm |
| Pixel Merging Binning | 1×1, 2×2, 3×3, 4×4 |
| Lens | Motorized Zoom, 8–48 Mm, Aperture F1.2 |
| Focus And Aperture | Auto Controlled Via Software Or Panel |
| Exposure Time | 0.294 Ms To 2000 Ms |
| Excitation Light Source | 300 Nm UV Transmitted; 254 & 365 Nm UV Reflected |
| Projection Table Area | UV: 210 × 250 Mm; White Light: 210 × 300 Mm |
| Optical Filter | 590 Nm Standard; Compatible With EB, SYBR, GoldView, Etc. |
| Display & Operation | Multi-Function Control Panel With Touch Keys |
| Observation Window | UV Protection Window For Real-Time Viewing |
| Software | JP-GEL, Integrated With Analysis Tools: Band Quantification, OD, Colony Count, Excel Report Export |
| Image Formats Supported | TIFF, JPEG |
| Auto Shut-Off Timer | Light Sources Turn Off After 10 Minutes Of Inactivity |
| Supported Applications | DNA/RNA Gel Imaging, Protein Gels Coomassie, Silver Stain, GFP/ eGFP, Dot Blot, Western Blot, Autoradiography, PCR, High-Throughput Arrays |
| Power Supply | AC 220 V, 50/60 Hz |
| Dimensions (L × W × H) | 380 × 430 × 730 Mm |
| Net Weight | 18.4 Kg |
Power Cord
Gel Document System LBN-GDS110 features a 6-megapixel CCD camera with motorized zoom and built-in UV transilluminator for high-resolution imaging. It is ideal for molecular biology research, academic laboratories, and clinical diagnostics requiring high-quality electrophoresis imaging.
Gel Document System LBN-GDS110 features a 6-megapixel CCD camera with motorized zoom and built-in UV transilluminator for high-resolution imaging. It is ideal for molecular biology research, academic laboratories, and clinical diagnostics requiring high-quality electrophoresis imaging.
