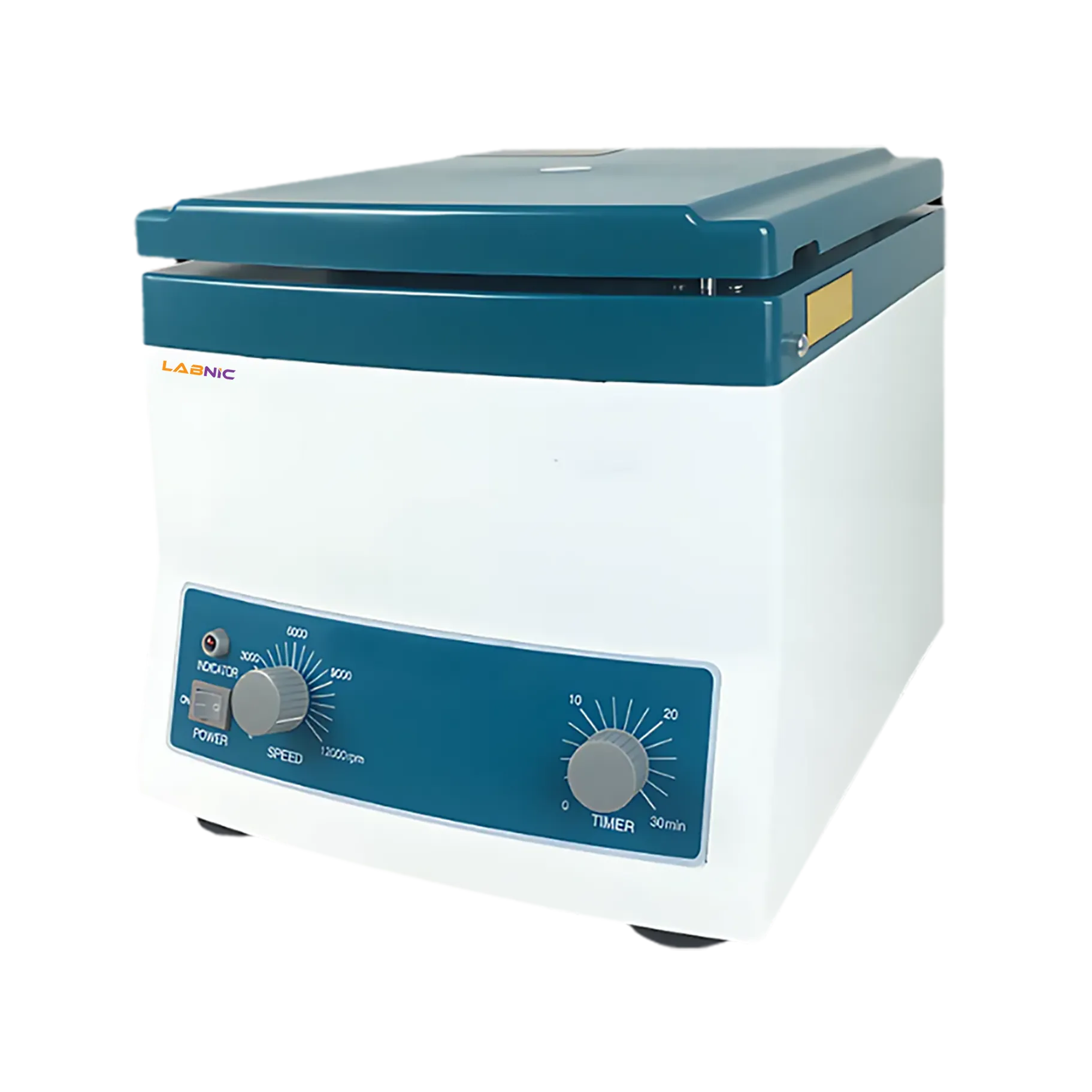

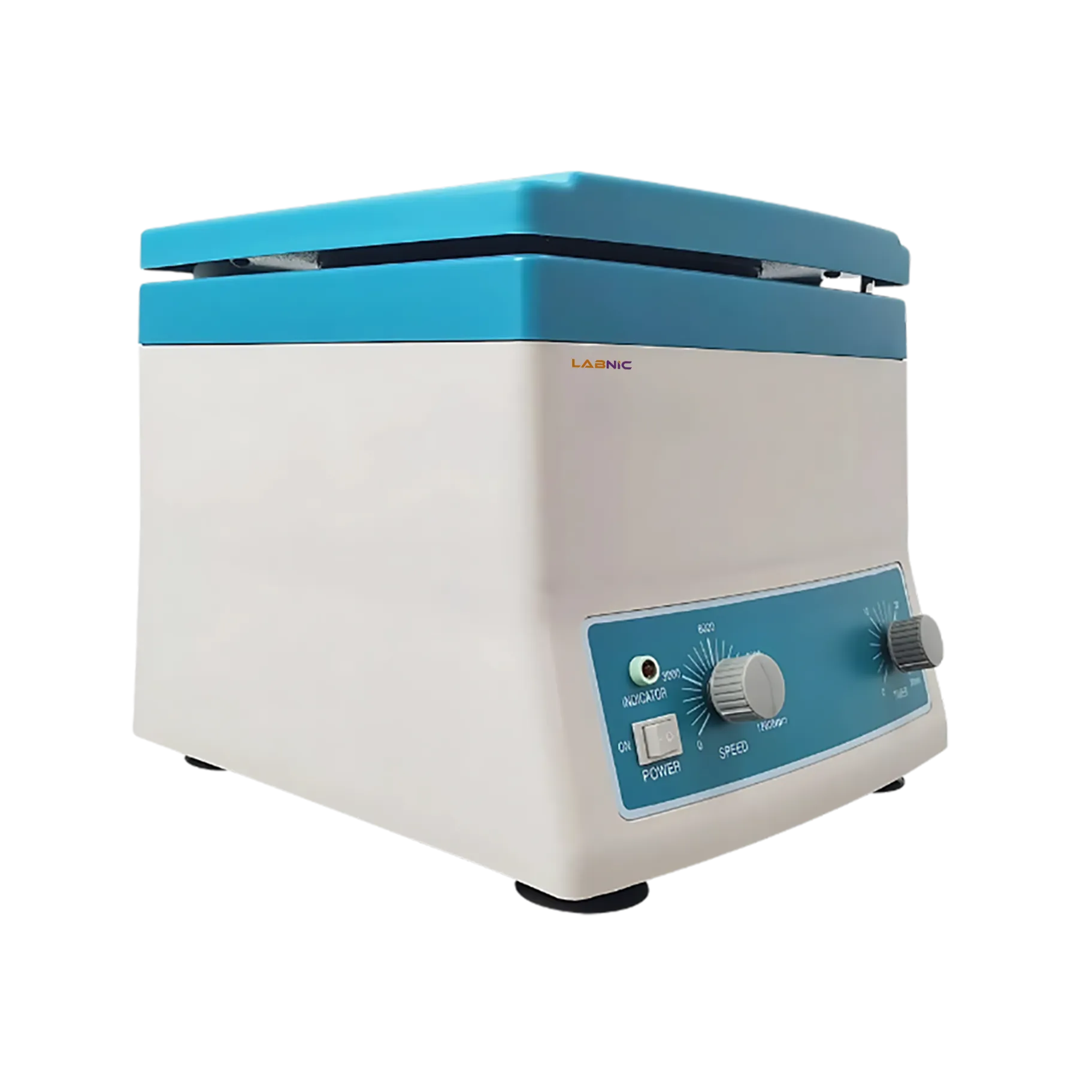

Hematocrit Centrifuge LBN-HC121 outer layer is made up of plastic case covered with a metal lid with a maximum speed of 12,000 rpm. Its maximum RCF is 15300 g holding a capacity of ø 1.5 75 mm 24 capillary tubes. Equipped with a mechanical door lock which prevents the lid from being opened while running and a safety switch to control the switching operations of the rotor. Rotor is fitted with a secured lid.
| Maximum RPM | 12000 rpm |
| Maximum RCF | 15300xg |
| Timer | 0 to 30 minutes |
| Rotor capacity | ø 1.5 75 mmx24 capillary tubes |
| Voltage | 110 V 60 Hz /220 V 50 Hz |
| Dimension (W×D×H) | 280×310×265 mm |
| Gross weight/Net weight | 10/9 kg |
Material is made up of plastic case covered with a metal lid
Equipped with mechanical door lock and safety switch to ensure safety and security of the machine and users
Operates at high speed (12,000 rpm) for short time centrifugation (0 to 30 minutes)
Step less speed adjustment
Provided with reader
Comes with a reader for determining the hematocrit values in the rotor lid
It accurately measures the specific value of the blood cell and also used for separating micro-amount of blood or solution
These are widely applied for testing in biochemistry, immunity, genetics, blood separation and for general clinical tests and are also used for the measurement of the bilirubin content during the screening of new born babies and in small medical institutions
Download Catalog for Hematocrit Centrifuge LBN-HC121
Download
Speed Range : 200 to 14000 rpm, Increment of 10 rpm
Maximum RCF : 18620 ×g
Speed Accuracy : ±20 rpm
Rotor : 2 types
Maximum Speed : 12000 rpm
Maximum RCF : 15800 × g
Rotor Capacity : 24 Pieces of Capillary
Noise : ≤ 55dB
Maximum Speed : 18500 rpm
Maximum RCF : 19920 × g
Noise : ≤ 60dB
Time : 0 to 99 min
Maximum Speed : 20000 rpm
Maximum RCF : 27800 × g
Maximum Capacity : 4 x100ml
Speed Accuracy : ± 10 rpm
Maximum Speed : 24000 rpm
Maximum RCF : 47800 × g
Maximum Capacity : 4 x100ml
Speed Accuracy : ± 10 rpm
Maximum Speed : 22000 rpm
Maximum RCF : 34700 × g
Maximum Capacity : 4 x100ml
Speed Accuracy : ± 10 rpm
Maximum RPM : 4000 rpm
Maximum RCF : 2755 × g
Timer : 0 to 99 min
Rotor capacity : 100 ml × 4, 50 ml × 8, 15 ml ×16, 10 ml × 24
Capacity : 1.5ml×12 Angle rotor
0.5ml×12 Angle rotor
Maximum speed : 16000 r/min
Maximum RCF : 18560×g
Time Range : 0 to 99 min
Maximum Speed : 500 to 4000 r/min
Maximum RCF : 2220xg
Maximum Capacity : 125/10 ml vacuum blood tube
Speed Regulation Accuracy : ±30 r/min
Maximum RPM : 4000 rpm
Maximum RCF : 2325 × g
Timer : 0 to 99 min
Rotor capacity : 20 ml×12 (standard)
Maximum Speed : 4000r/min
Maximum Capacity : 4 × 100ml
Maximum Centrifugal Force : 3150 × g
Speed Accuracy : ± 10r /min
Maximum RPM : 4000 rpm
Maximum RCF : 1780 × g
Timer : 0 to 99 min
Rotor capacity : Angle rotor 15 ml / 10 ml × 8
Maximum speed : 4000 rpm
Maximum RCF : 880 × g
Rotor capacity : 0.2 ml × 6, 0.5 ml × 6, 1.5 ml × 6, 2 ml × 6, 0.2 ml PCR tube × 16（double rows）
Voltage : 100 to 250 V 50 to 60 Hz
Maximum Capacity : Angle rotor 1.5/2 ml×12
Maximum Speed : 16000 r/min
Maximum RCF : 18320×g
Time Range : 0 to 99 min
Maximum RPM : 16000 rpm
Maximum RCF : 17000× g
Timer : 0 to 99 min
Rotor capacity : Angle rotor 1.5 ml/2 ml ×12 (standard)
Maximum Capacity : Angle rotor 1.5/2 ml×12
Maximum Speed : 16000 r/min
Maximum RCF : 18320×g
Time Range : 0 to 99 min
Maximum RPM : 12000 rpm
Maximum RCF : 15800 × g
Timer Range : 0 to 99 min
Speed Accuracy : ± 50 r/min
Maximum Speed Range : 0 to 6000 rpm
Speed Accuracy : ± 10 rpm
Maximum RCF : 5040 xg
Timer Range : 0 to 99 min
