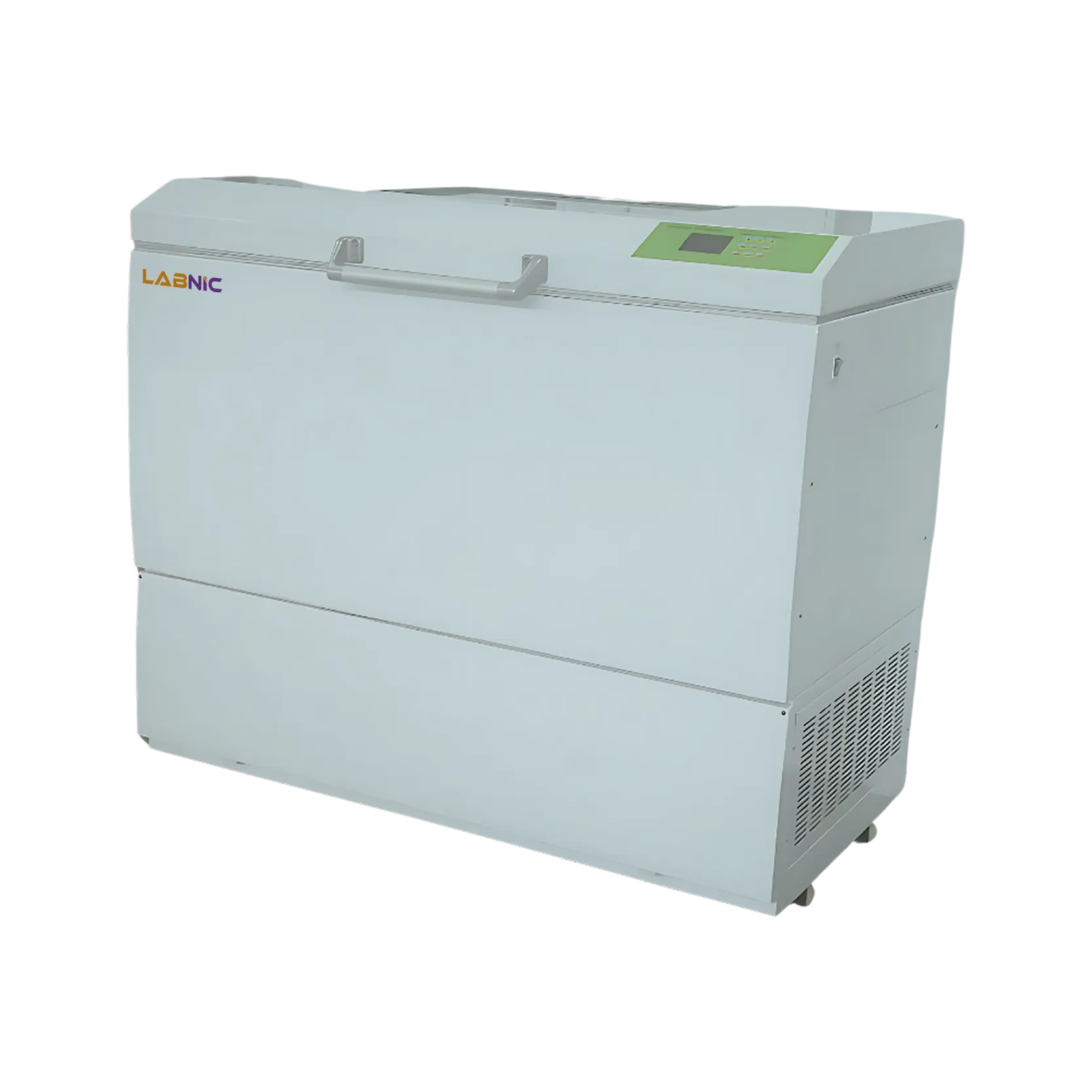

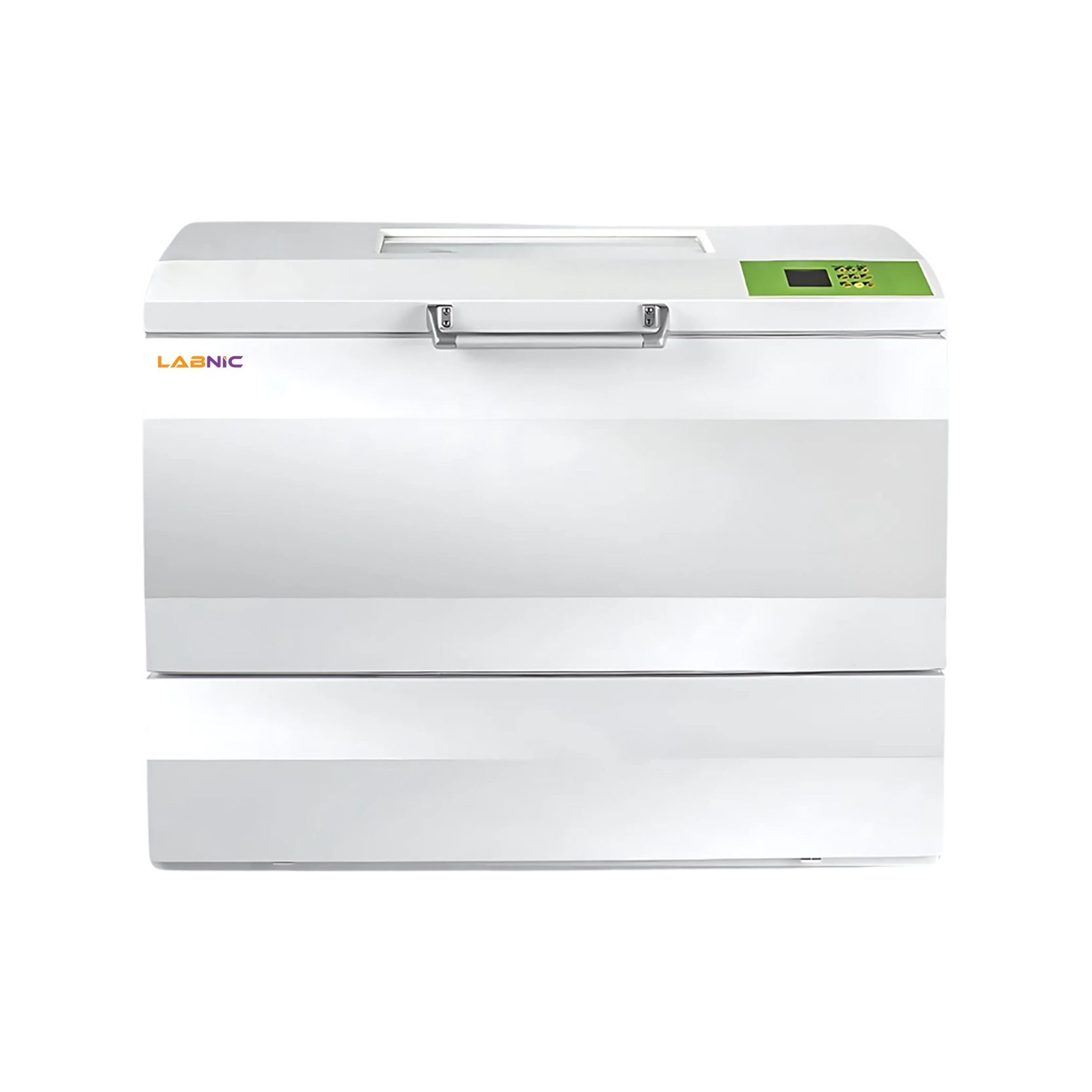

Horizontal Shaker Incubator LBN-HS144 is a bench top incubator with a compact design that is unique and has an operation data memory function with non-volatile memory that saves the settings. During a power outage, the unit will automatically restart as programmed the first time power is restored. When the door is opened, the equipment automatically shuts down. The shell is corrosion-free and chemically resistant steel, and the chamber is polished stainless steel.
| Temperature Range | 4 to 60 ℃ (Cooling) |
| Capacity | 265 L |
| Shaking Speed | 20 to 300 rpm |
| Time Range | 1 to 9999 minutes |
| Speed Accuracy | ±1 rpm |
| Swing Amplitude | 26 mm |
| Standard Configuration | 500 ml × 28 |
| Temperature Accuracy | ±0.1 °C |
| Temperature Uniformity | ±1 °C |
| Display | LCD |
| Tray Included | 1 |
| Tray Size | 920 × 510 mm |
| Power | 951 W |
| Voltage | AC220 V±10 %, 50 to 60Hz |
| Exterior Dimension (W×D×H) | 120×74×100 mm |
| Net Weight | 183 kg |
Integrated with shaker eliminating the need of placing a separate shaker saving the space and cost
Equipped with a superior quality steel shell, polished stainless-steel chamber
Large LCD to display the operating temperature and shaking speed
Data memory function eliminates the faulty operation
Non-volatile memory retains the settings during a power outage and helps to automatically restart the unit as originally programmed after power is restored
Door with a strong air spring rod make it easy to open and close
The device automatically stops operation if the door is opened
Horizontal Shaker Incubators are often used for cell culturing, cell aeration, and solubility studies mainly in the field of biology and chemistry.
Download Catalog for Horizontal Shaker Incubator LBN-HS144
Download
Temperature Range : RT+5 to 60 °C
Capacity : 155 L
Shaking Speed : 20 to 300 rpm
Time Range : 1 to 9999 minutes
Temperature Range : RT+5 to 60 °C
Capacity : 265 L
Shaking Speed : 20 to 300 rpm
Time Range : 1 to 9999 minutes
Temperature Range : 4 to 60 ℃ (Cooling)
Capacity : 155 L
Shaking Speed : 20 to 300 rpm
Time Range : 1 to 9999 minutes
Chamber Volume : 375 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Electrical Requirement : 220V 50Hz
Temperature Range : CL:-10℃ to 65°C
Display Resolution : 0.1°C
Temperature stability : High 0.5℃, low1℃
Chamber Volume : 475 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Chamber Volume : 175 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Chamber Volume : 1075 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Temperature Range : 20-24°C
Capacity : 10 L
Blood Bags : 20
Refrigerant : R134a
Temperature Range : 20-24°C
Capacity : 5 L
Blood Bags : 10
Refrigerant : R134a
Temperature Range : 22 ± 2 °C
Temperature Accuracy : 0.1 °C
Temperature Control : Microprocessor controller
Oscillation : 60 ± 5 cycles/ minute
Dimension : 540×605×960 mm
Voltage : 220 V 50 Hz
Storage area and layers (W×D×H) : 390×300×230 5 layers
Storage bags : 5 to 10 bags
Temperature Range : 22 ± 2 °C
Temperature Accuracy : 0.1 °C
Temperature Control : Microprocessor controller
Oscillation : 60 ± 5 cycles/ minute
Temperature Range : 4 to 60 °C
Capacity : 280 L
Shaking Speed : 40 to 300 rpm
Temperature Accuracy : ± 0.1 °C
Temperature Range : RT+5 to 60 °C
Capacity : 170 L
Shaking Speed : 40 to 300 rpm
Temperature Accuracy : ± 0.1 °C
Temperature Range : RT+5 to 60 °C
Capacity : 280 L
Shaking Speed : 40 to 300 rpm
Temperature Accuracy : ± 0.1 °C
Temperature Range : 4 to 60 °C
Capacity : 170 L
Shaking Speed : 40 to 300 rpm
Temperature Accuracy : ± 0.1 °C
Temperature Range : RT+5 to 60 °C
Capacity : 582 L
Shaking Speed : 40 to 300 rpm
Temperature Accuracy : ± 0.1 °C
Operating Temperature : 4 to 60 ℃ (Refrigeration type)
Temperature Control Precision : ±0.1 ℃
Rotation Frequency : 20 to 300 rpm
Amplitude : Φ26 mm
Operating Temperature : Room temperature +5 to 60 ℃
Temperature Control Precision : ±0.1 ℃
Rotation Frequency : 20 to 300 rpm
Amplitude : Φ26 mm
Operating Temperature : Room temperature +5 to 60 ℃
Temperature Control Precision : ±0.1 ℃
Rotation Frequency : 20 to 300 rpm
Amplitude : Φ26 mm
Temperature Range : RT+5 - 100℃
Temperature Setting Range : 25℃ – 100℃
Maximum Heating Rate : 6.5℃/min
Heating Time : ≤ 20min
No of Blocks : 1
Heating Temperature Range : RT +5°C to 150°C
Ambient Temperature : 5° - 40°C
Relative Humidity : 0.8
Temperature range : RT+5 to 100℃
Time for temperature increasing : ≤25 minutes (from 20℃ to100℃ )
Temperature accuracy : ≤±0.5℃
Display resolution : 0.1℃
No of Blocks : 4
Heating Temperature Range : RT +5°C to 150°C
Ambient Temperature : 5° - 40°C
Relative Humidity : 0.8
No of Blocks : 2
Heating Temperature Range : RT +5°C to 150°C
Ambient Temperature : 5° - 40°C
Relative Humidity : 0.8
