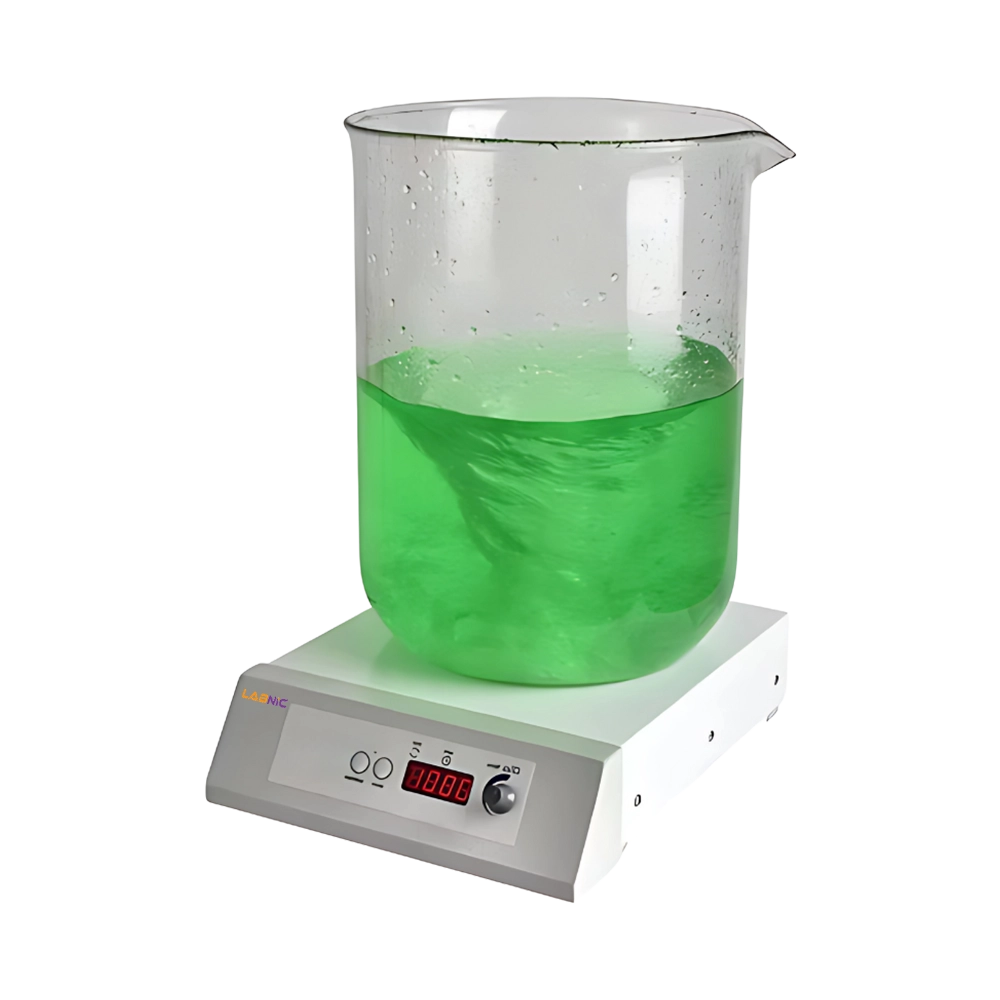

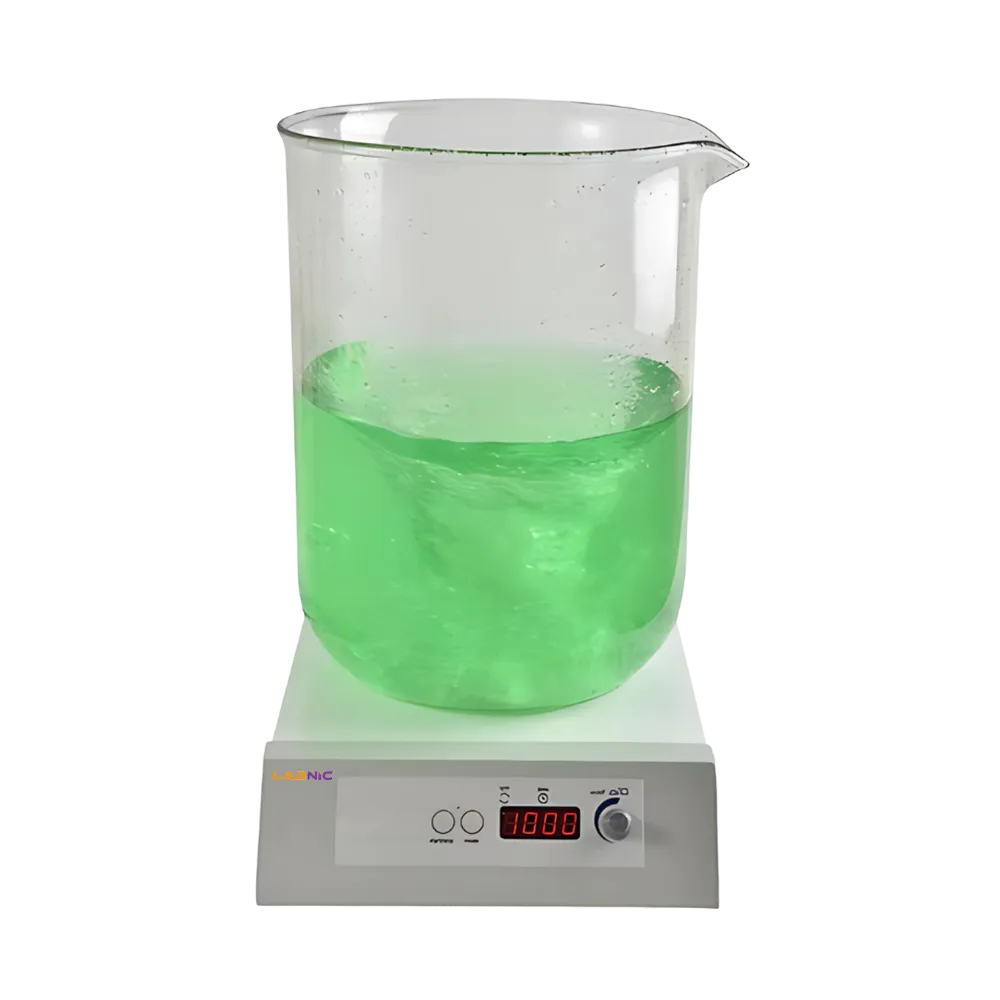

Large Capacity Magnetic Stirrer LBN-LM172 is designed for high-volume mixing with a maximum stirring capacity of 150L. Equipped with a brushless DC motor and planetary reducing speed gearbox, it ensures smooth operation. Integrated with a digital display, it provides precise monitoring of parameters. Built-in speed control allows operation with in a range of 50 to 2000rpm. Our Large Capacity Magnetic Stirrer, is suitable for industrial, pharmaceutical and biochemical stirring processes.
| Speed Range | 50 to 1200rpm |
| Maximum Stirring Quantity | 150L (H2O) |
| Number of Stirring Positions | 1 |
| Timer | Up to 9 Hrs |
| Stirring Bar Length | 150 (24 mm D) |
| Motor Type | Brushless DC Motor with Planetary Reducing Speed Gear Box |
| Motor Rating Output | 30W |
| Plate Material | Ceramic Coated Stainless Steel |
| Chemical Resistant | Yes |
| Case Material | Metal |
| Operation Temperature | 5 to 40℃ |
| Operation Relative Humidity | 80% |
| Protection Class According to DIN EN 60529 | IP56 |
| Power Supply | 100 to 240V |
| Frequency | 50/60Hz |
| Power Consumption | 80W |
| Fuse | 2x T4A 250V |
| Plate Dimension | 500×500 mm |
| Dimensions (L×W×H) | 620×500×165 mm |
| Weight | 14 kg |
Large Capacity Magnetic Stirrer LBN-LM172 is suitable for large-scale mixing in industrial, pharmaceutical, and biochemical applications.
Large Capacity Magnetic Stirrer LBN-LM172 is suitable for large-scale mixing in industrial, pharmaceutical, and biochemical applications.
Most Frequently Asked Questions
1. What are Large Capacity Magnetic Stirrers used for?
Ans. Large Capacity Magnetic Stirrers are used for efficient stirring of large liquid volumes in laboratory and industrial applications.
2. What stirring volume range is supported by Large Capacity Magnetic Stirrers?
Ans. Large Capacity Magnetic Stirrers support maximum stirring volumes ranging from 10 liters to 50 liters.
3. What operational control features are included in Large Capacity Magnetic Stirrers?
Ans. Large Capacity Magnetic Stirrers include integrated timing and locking functions to support secure and controlled operation.
4. How do Large Capacity Magnetic Stirrers ensure effective stirring performance?
Ans. Large Capacity Magnetic Stirrers provide strong positive and negative stirring effects with smooth transition from slow to fast.
5. What interface features are available in Large Capacity Magnetic Stirrers?
Ans. Large Capacity Magnetic Stirrers feature easy-to-operate control panels for convenient parameter setting and monitoring.
6. Where are Large Capacity Magnetic Stirrers commonly used?
Ans. Large Capacity Magnetic Stirrers are commonly used in research laboratories and industrial environments requiring high-volume stirring.
Large Capacity Magnetic Stirrer LBN-LM172 is designed for high-volume mixing with a maximum stirring capacity of 150L. Equipped with a brushless DC motor and planetary reducing speed gearbox, it ensures smooth operation. Integrated with a digital display, it provides precise monitoring of parameters. Built-in speed control allows operation with in a range of 50 to 2000rpm. Our Large Capacity Magnetic Stirrer, is suitable for industrial, pharmaceutical and biochemical stirring processes.
