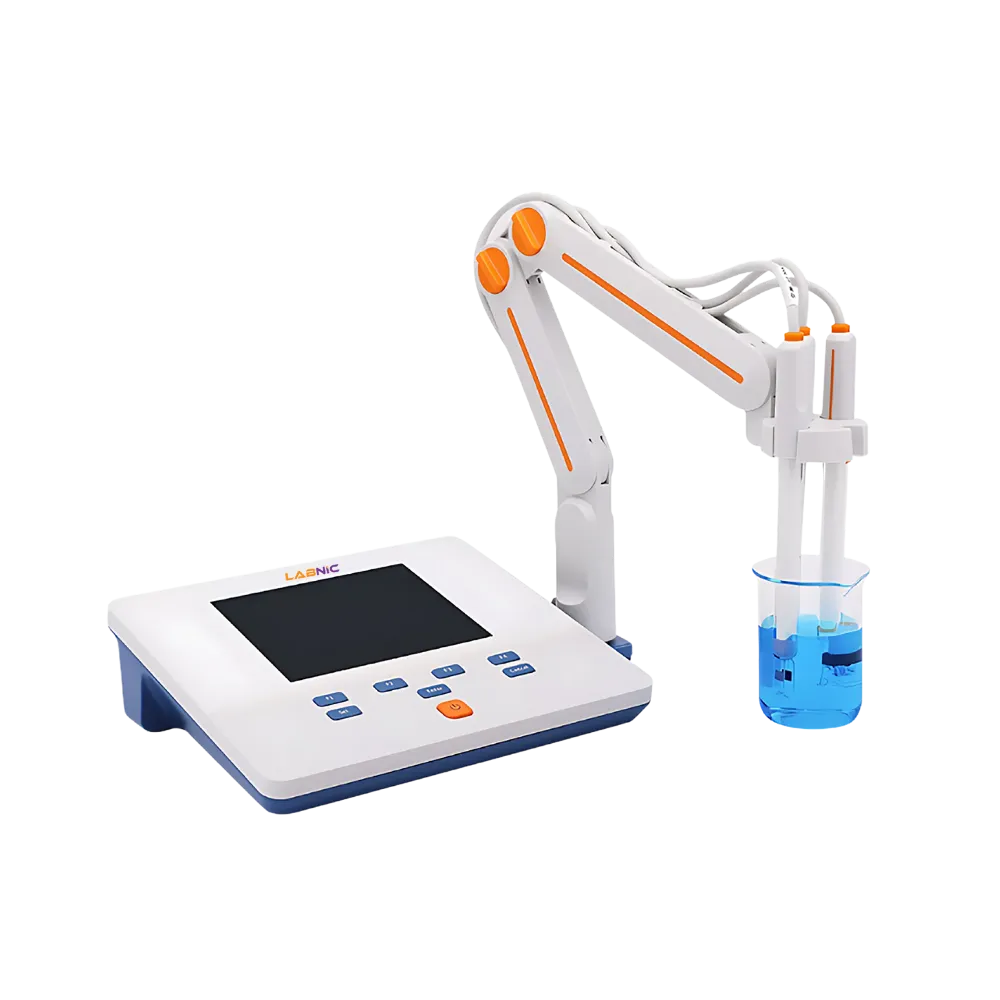

Multi Parameter Analyzer LBN-MPA171 offers multiple measurement modes for comprehensive evaluation of water quality. It features multiple reading modes to accommodate various analytical needs. Equipped with automatic temperature calibration, it ensures reliable results under varying conditions. Our Multi Parameter Analyzer has a durable design, making it ideal for both fieldwork and quality assurance applications.
| pH Range | -2.00 to 20.00 pH |
| pH Resolution | 0.1, 0.01 pH |
| pH Accuracy | ± 0.01 pH |
| pH Calibration Points | Up to 5 |
| pH Standard Customization | Yes |
| pH Standard Recognition | NIST, GB, and DIN buffers |
| pH Slope Limit | Yes |
| mV Range | -2000.0 to 2000.0 mV |
| mV Resolution | 0.1 mV |
| mV Accuracy | ± 0.3 mV or ± 0.1% |
| pX Range | -2.00 to 20.00 |
| pX Resolution | 0.1, 0.01 pX |
| pX Accuracy | ± 0.01 pX |
| pX Calibration Points | Up to 5 |
| ISE Range | 1E-9 to 9.999E9 |
| ISE Unit | mol/L, mmol/L, g/L, mg/L, μg/L, ppm |
| ISE Resolution | Up to 4 significant digits |
| ISE Accuracy | ± 0.5% |
| ISE Calibration Points | Up to 5 |
| Conductivity Range | 0.000 μS/cm to 1000 mS/cm |
| Conductivity Resolution | 0.001 μS/cm minimum, various with range selection |
| Conductivity Accuracy | ± 1.0 % FS |
| Conductivity Reference Temperature | 20, 25 ºC |
| Conductivity Calibration Points | Up to 3 |
| Conductivity Standard Recognition | 84 μS/cm, 1413 μS/cm, 12.88 mS/cm |
| Resistivity Range | 5.00 Ωcm to 20.00 MΩcm |
| Resistivity Resolution | 0.01 Ωcm (minimum) |
| Resistivity Accuracy | ± 1.0 % FS |
| TDS Range | 0.00 mg/L to 300 g/L |
| TDS Resolution | 0.01 mg/L minimum, various with range selection |
| TDS Accuracy | ± 1.0 % FS |
| Salinity Range | 0.00 to 8.00% |
| Salinity Resolution | 0.0001 |
| Salinity Accuracy | ± 0.2% |
| Dissolved Oxygen Concentration Range | 0.00 to 20.00 mg/L |
| Dissolved Oxygen Concentration Resolution | 0.01 mg/L |
| Dissolved Oxygen Concentration Accuracy | ± 0.1 mg/L |
| Dissolved Oxygen Concentration Calibration Points | Air-saturated water or zero point |
| Dissolved Oxygen Concentration Barometric Compensation | Yes |
| Dissolved Oxygen Concentration Manual Salinity Factor Correction | Yes |
| Saturation Range | 0.0 to 200.0% |
| Saturation Resolution | 0.001 |
| Saturation Accuracy | ± 2.0% |
| Temperature Range | -5 to 110 ºC, 23 to 230 ºF |
| Temperature Resolution | 0.1 |
| Temperature Accuracy | ± 0.2 |
| Reading Mode | Auto Read (Fast, Medium, Slow), Timed, Continuous |
| Reading Prompts | Reading, Stable, Locked |
| Temperature Compensation | ATC, MTC |
| Data Storage | 500 results each |
| GLP Features | Yes |
| pH Electrode | BNC(Q9) |
| DO with Temp. Probe | 4-pin aviation connector |
| Conductivity with Temp. Probe | 5-pin aviation connector |
| USB | USB 2.0 flash memory device, PC |
| RS 232 | Printer |
| Backlight | Yes |
| Auto Shutdown | 1to 60 min, off |
| IP Rating | IP54 |
| Date and Time | Yes |
| Power Supply | AC Adapter, 100-240V AC input, DC 9V output |
| Dimensions | 242 × 195 × 68 mm |
| Weight | 900 g (1.98 lb) |
Multi Parameter Analyzer LBN-MPA171 is suitable for various applications, like environmental monitoring, water quality assessment, laboratory analysis, and industrial process control.
Multi Parameter Analyzer LBN-MPA171 is suitable for various applications, like environmental monitoring, water quality assessment, laboratory analysis, and industrial process control.
Most Frequently Asked Questions
1. What is a multiple parameter analyzer?
Ans. A multiple parameter analyzer is an advanced instrument used to measure multiple chemical or physical parameters in a single test.
2. How does a multiple parameter analyzer work?
Ans. The analyzer uses sensors and electrodes to detect different parameters in a sample. The microprocessor processes the data and displays the results digitally.
3. Where is a multiple parameter analyzer used?
Ans. It is widely used in environmental monitoring, water treatment plants, laboratories, pharmaceuticals, food industries, and research applications.
4. Is a multiple parameter analyzer easy to use?
Ans. Yes, most models feature user-friendly interfaces, touchscreens, and automatic calibration, making them easy to operate.
5. Can a multiple parameter analyzer be used for field testing?
Ans. Some models are portable making them suitable for on-site testing in environmental and industrial settings.
