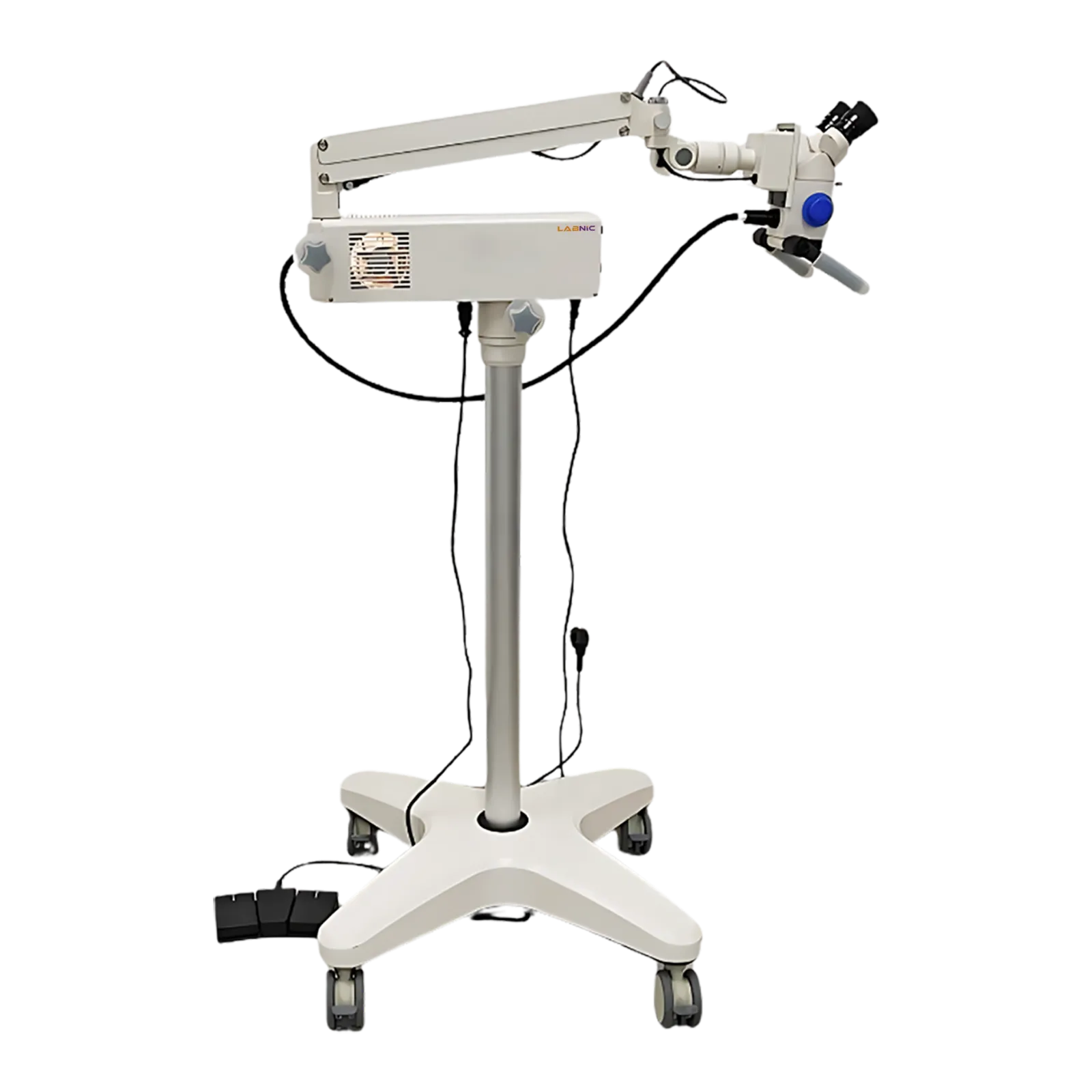

Operation Microscope LBN-OM110 is designed to be compact and portable with three-step magnification and a red reflex filter for precise surgical imaging. It is built with 12.5× binocular eyepieces and a 200 mm focus length for wide and clear visualization. Equipped with a halogen cold light source and stepless illumination intensity adjustment. Integrated with a spring-balanced arm and multifunctional foot switch, ensures smooth movement and easy control. Our Operation Microscope is ideal for use in ophthalmology, ENT surgeries, and other microsurgical applications.
| Eyepiece Magnification | 12.5x |
| Main Microscope Magnification | 5.3x, 8x, 12x |
| Objective Lens | f = 200 mm |
| Working Distance | 190 mm |
| Diameter of Field | ∮37 mm, ∮25 mm, ∮16.7 mm |
| Maximal Resolution | 100 LP/mm |
| Illumination Source | Medical Cold-Reflection Halogen Lamp |
| Illumination Type | 6° 0° Coaxial Cold Light Source |
| Coaxial Illumination | ≥ 30,000 lx |
| Adjustable Diopter | ±6D |
| Adjustable Pupil Distance Range | 50 mm to 80 mm |
| Fine Focus Range | 30 mm |
| Reaching Radius of Arm | 870 mm |
| Adjustable Vertical Range | 700 mm to 1100 mm |
| Power Consumption | 120 VA |
| Power Supply | AC 220V ±10% / 50Hz ±1Hz, AC 110V ±10% / 60Hz ±1Hz |
| Gross Weight | 41kg |
Moving box
Bulb
Operation Microscope LBN-OM110 helps in ophthalmic surgeries, ENT procedures, other precision microsurgeries, and is ideal for clinics, hospitals, and surgical centres.
Operation Microscope LBN-OM110 helps in ophthalmic surgeries, ENT procedures, other precision microsurgeries, and is ideal for clinics, hospitals, and surgical centres.
Most Frequently Asked Questions
1. What are Operation Microscopes used for?
Ans. Operation Microscopes are used to provide enhanced visualization during surgical procedures requiring high precision and accuracy.
2. How do Operation Microscopes support delicate surgical work?
Ans. Operation Microscopes offer excellent magnification, illumination, and optical clarity for intricate and sensitive operations.
3. What ergonomic features are included in Operation Microscopes?
Ans. Operation Microscopes feature ergonomic designs with smooth movement and advanced focus control for comfortable operation.
4. How do Operation Microscopes ensure clear and stable imaging?
Ans. Operation Microscopes deliver superior imaging quality with stable optics to support precise surgical performance.
5. Are Operation Microscopes suitable for different clinical environments?
Ans. Operation Microscopes are adaptable for use across multiple clinical and surgical environments.
6. Where are Operation Microscopes commonly used?
Ans. Operation Microscopes are commonly used in hospitals, ophthalmology departments, and microsurgical applications.
